RDX-GHS014
Q: What is the main advantage of the RDX-GHS014 5 burner gas hob?
A:
The RDX-GHS014 features a spacious five-burner cooking layout with multiple burner sizes, allowing users to prepare several dishes simultaneously and select suitable heat levels for different cooking methods.

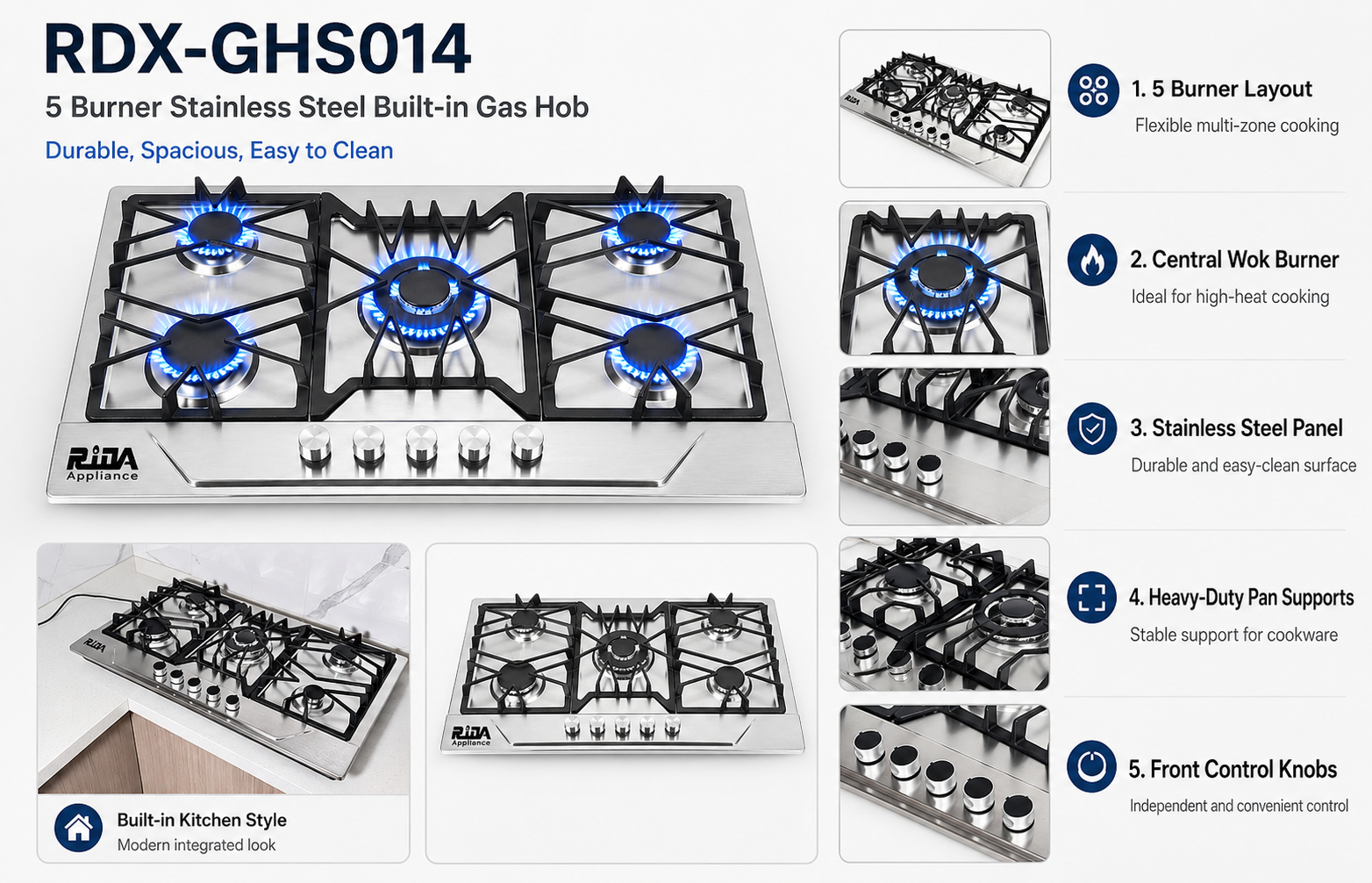

1. 5 Burner Layout – More Cooking Space for Multi-dish Preparation
The RDX-GHS014 features five burners in different sizes, including a large 130mm main burner, a 100mm burner, two 75mm burners, and one compact 50mm auxiliary burner.
This diversified burner configuration provides flexible cooking zones for boiling, frying, simmering, stir-frying, and preparing multiple dishes at the same time, making it particularly suitable for larger family kitchens and high-capacity cooking needs.
2. 860mm Stainless Steel Panel – Spacious and Durable
The hob is built with an 860 × 510 × 0.6mm stainless steel panel, providing a spacious cooking surface and reliable resistance to daily heat and wear.
The stainless steel finish is practical for regular cleaning and gives the product a professional appearance suitable for modern residential kitchens and appliance projects.

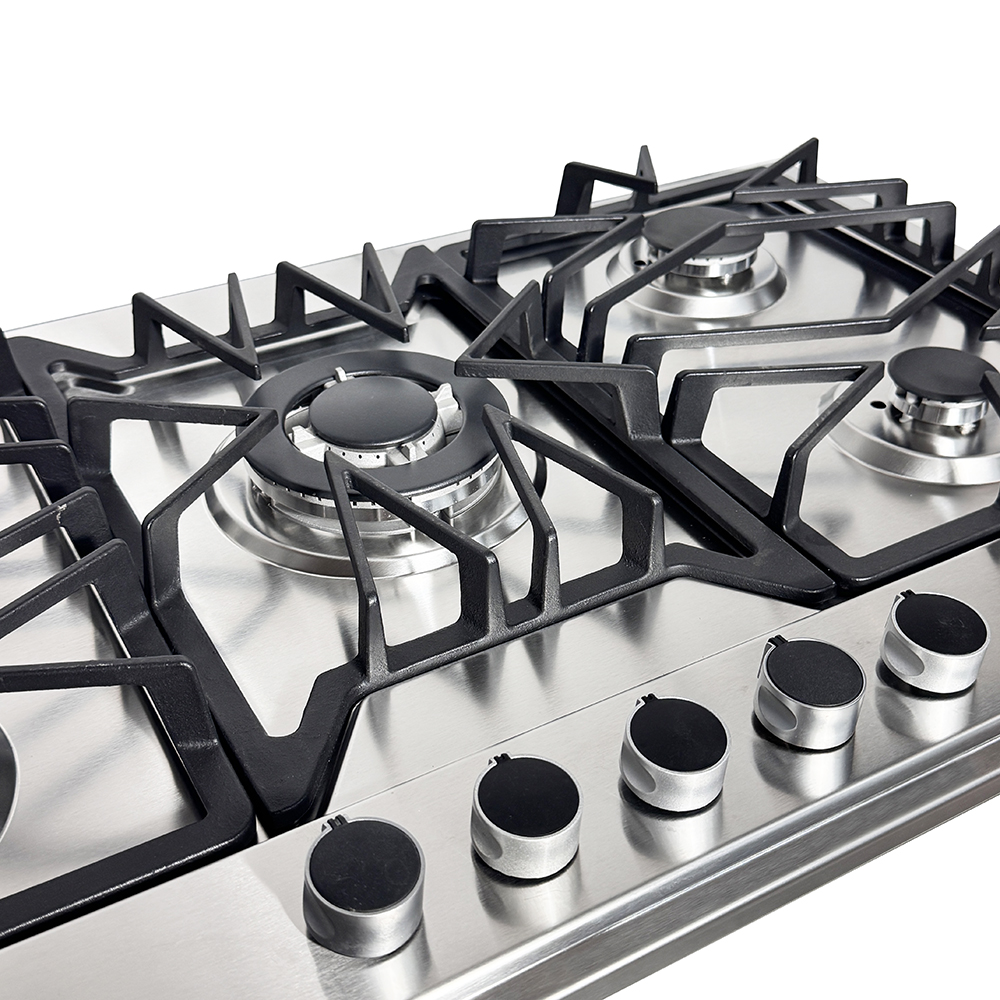

3. Heavy-duty Pan Supports – Stable Cookware Placement
The RDX-GHS014 uses a multi-section heavy-duty black pan support system designed to securely hold different cookware sizes.
The central support accommodates the main high-heat cooking zone, while the left and right supports provide stable positioning for multiple pots and pans during simultaneous cooking.
4. 110V Pulse Ignition & Independent Controls
The hob uses a 110V pulse ignition system with a 1.5m US two-pin power cord, providing convenient and reliable burner startup.
Five electroplated zinc alloy control knobs independently control each cooking zone, allowing users to adjust flame intensity according to different cooking requirements.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS014 | Product Type | Built-in Gas Hob |
Burner Quantity | 5 Burners | Panel | Stainless Steel |
Panel Size | 860 × 510 × 0.6mm | Cutout Size | 830 × 480mm |
Bottom Body | Black Steel | Main Burner | 130mm |
Secondary Burner | 100mm | Medium Burners | 75mm × 2 |
Auxiliary Burner | 50mm | Gas Nozzle | Brass |
Pan Support | Heavy-duty Black Pan Supports | Ignition | 110V Pulse Ignition |
Power Cord | 1.5m US 2-pin Plug | Knob | Electroplated Zinc Alloy |
Carton Size | 870 × 520 × 110mm | OEM/ODM | Available |
Loading Qty | 20GP: Approx. 550 PCS | 40HQ | Approx. 1300 PCS |
Brand | RIDAX | Model | RDX-GHS014 |
Large Household Kitchens
The five-burner configuration provides generous cooking capacity for families who regularly prepare several dishes at the same time.
Multi-dish Cooking
Different burner sizes allow users to combine high-heat cooking, boiling, frying, simmering, and low-heat preparation on one hob.
Residential & Kitchen Projects
The spacious stainless steel design makes the RDX-GHS014 suitable for residential developments, kitchen renovation projects, apartments, and modern home appliance installations.
Distributor & OEM Projects
With its five-burner configuration and customizable production options, the RDX-GHS014 is suitable for importers, distributors, wholesalers, and kitchen appliance brands requiring OEM/ODM supply.
Install the gas hob into a suitable countertop using the specified 830 × 480mm cutout size and maintain sufficient ventilation around the appliance.
Connect the gas supply according to the required market specification and ensure all gas connections are secure before use.
Connect the supplied 110V power cord to a compatible electrical outlet for the pulse ignition system.
Turn the corresponding control knob to activate the ignition and adjust the flame according to the required cooking level.
Always place cookware securely on the pan supports and keep combustible materials away from the appliance during operation.
After cooking, turn all control knobs completely to the OFF position and close the gas supply when required. Allow the hob to cool before cleaning the stainless steel panel, burners, and pan supports.
Installation and gas connection should follow applicable local regulations and be completed by qualified personnel where required.
Q1: How many burners does the RDX-GHS014 have?
The RDX-GHS014 features five gas burners in different sizes to support multiple cooking methods and cookware sizes.
Q2: What are the burner sizes?
The burner configuration includes one 130mm burner, one 100mm burner, two 75mm burners, and one 50mm auxiliary burner.
Q3: What is the size of the stainless steel panel?
The panel measures approximately 860 × 510mm with a specified thickness of 0.6mm.
Q4: What is the countertop cutout size?
The specified installation cutout size is 830 × 480mm.
Q5: What ignition system does this model use?
The standard configuration uses a 110V pulse ignition system with a US two-pin power cord.
Q6: Does the standard model include flame failure protection?
The standard RDX-GHS014 configuration described here does not include flame failure protection. Safety-device configurations can be discussed separately for markets with specific requirements.
Q7: Can RIDAX provide OEM/ODM services?
Yes. RIDAX supports OEM/ODM cooperation for distributors, wholesalers, importers, and kitchen appliance brands, including logo, packaging, configuration, and other project requirements.
