RDX-GHS025
Q: What is the main advantage of this hybrid gas electric hob?
A:
The RDX-GHS025 combines three gas burners with one electric ceramic cooking zone, allowing users to choose between traditional gas flame cooking and electric heating according to different cooking needs and local energy conditions.

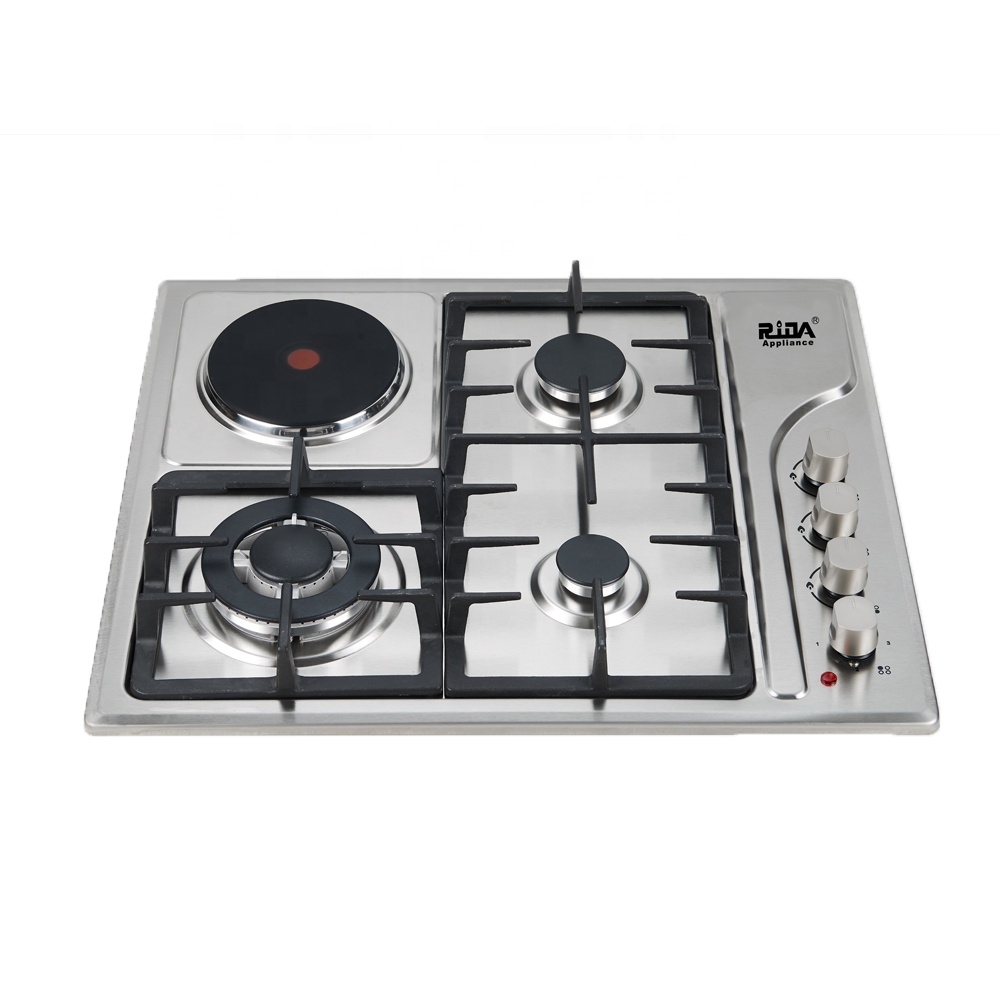

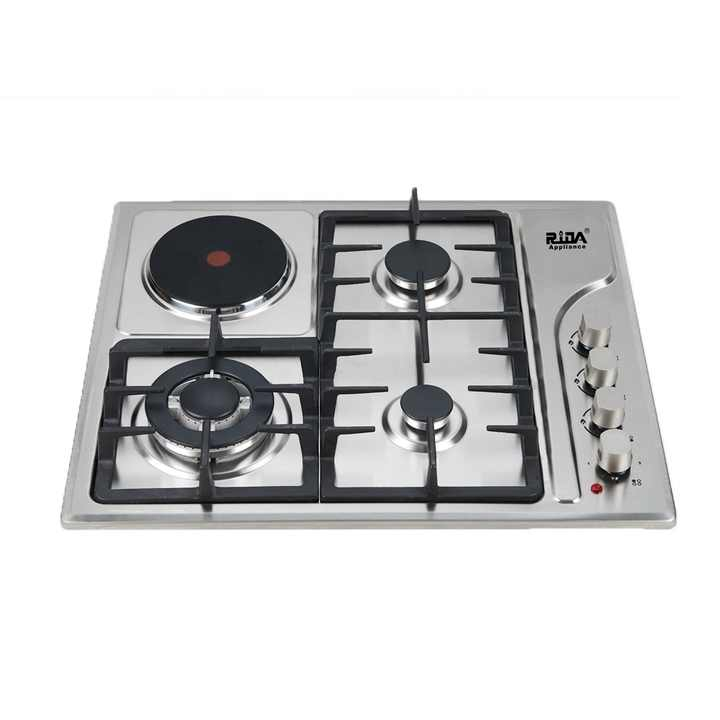

The RDX-GHS025 combines three Chinese SABAF gas burners with one electric ceramic cooking zone, providing greater flexibility than a traditional gas-only hob.

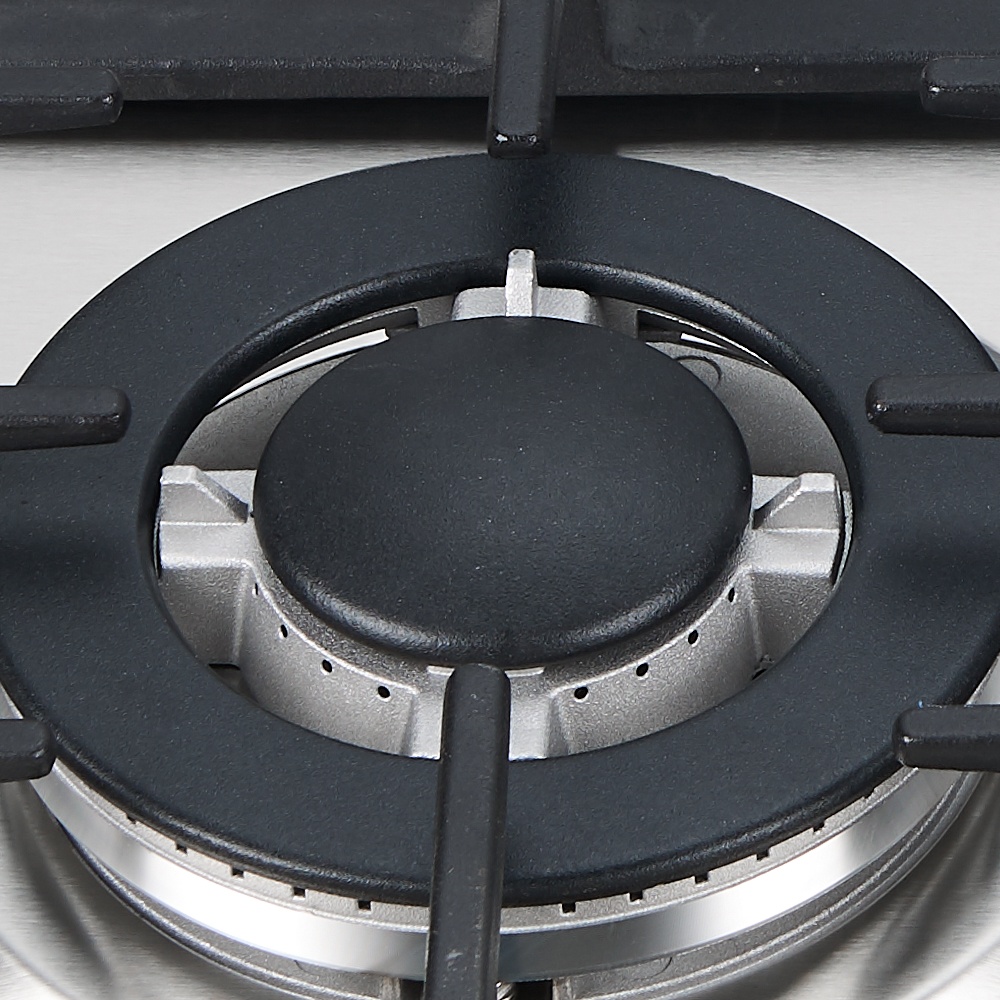

The gas burners deliver different heat outputs, including a powerful 3.3kW main burner, a 1.75kW medium burner, and a 1.0kW auxiliary burner, making it suitable for boiling, frying, simmering, and multi-dish cooking.

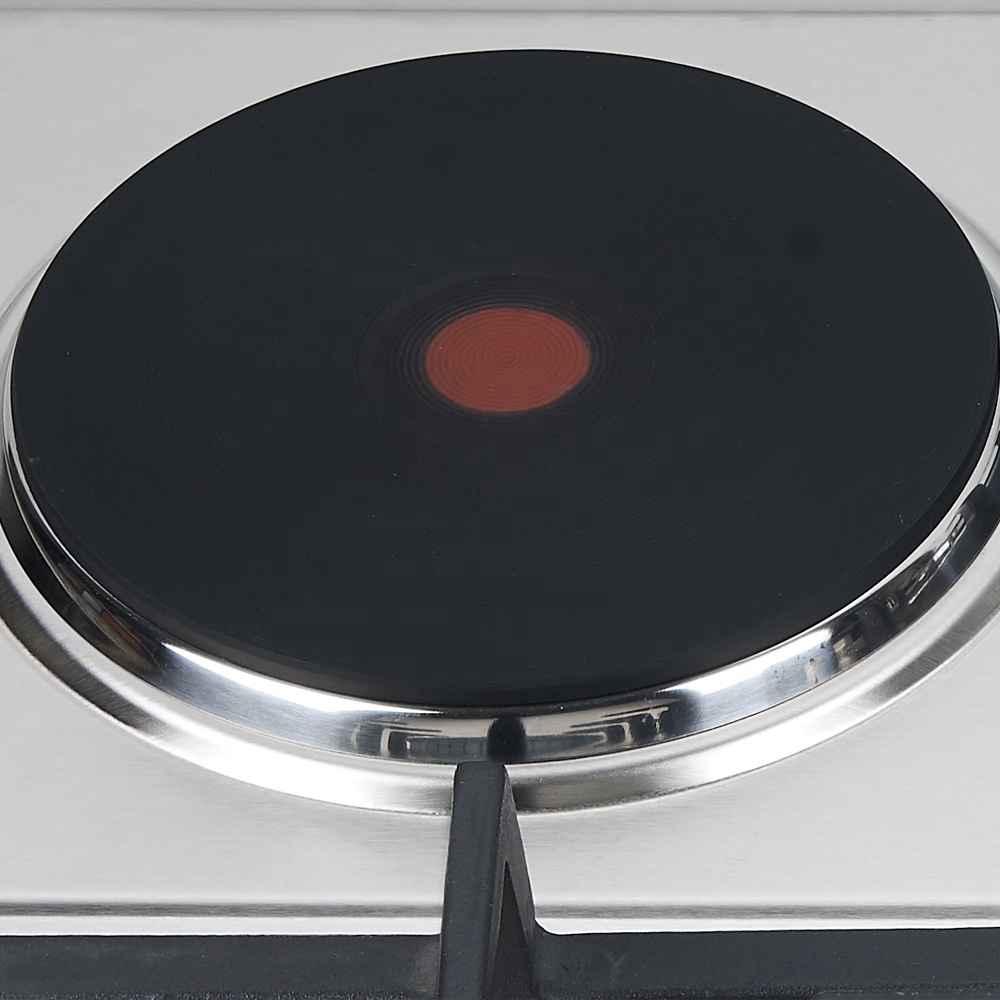

The additional ceramic zone provides an alternative electric cooking option for markets and households that require mixed-energy cooking solutions.
The built-in hob features a durable stainless steel panel combined with a galvanized steel bottom body for reliable structural strength and long-term use.
Black coated cast iron pan supports provide stable cookware support and help maintain consistent positioning during cooking. The stainless steel surface is also practical for everyday cleaning and maintenance.
The RDX-GHS025 is equipped with 220–240V electric ignition with VDE plug, providing convenient and reliable gas burner startup.
It can be configured for LPG or natural gas (NG) according to different destination-market requirements, making the model suitable for distributors, wholesalers, residential projects, and kitchen appliance brands.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS025 | Product Type | Hybrid Gas Electric Hob |
Gas Burners | 3 | Electric Zone | 1 Ceramic Zone |
Panel | Stainless Steel | Product Size | 600 × 510mm |
Cutout Size | 560 × 480mm | Bottom Body | Galvanized Steel |
Left Front Burner | Chinese SABAF A, 3.3kW | Right Front Burner | Chinese SABAF D, 1.0kW |
Right Rear Burner | Chinese SABAF C, 1.75kW | Pan Support | Black Coated Cast Iron |
Ignition | Electric Ignition | Voltage | 220–240V, 50/60Hz |
Plug | VDE Plug | Knob | Metal |
Gas Type | LPG / NG | Gas Pipe | Aluminum Pipe with L-shape Connector |
Carton Size | 610 × 520 × 100mm | OEM/ODM | Available |
Loading Qty | 20GP: Approx. 850 PCS | 40HQ | Approx. 2000 PCS |
The combination of gas and electric cooking provides flexible heat options for everyday household cooking. Users can select gas burners for rapid flame cooking or use the ceramic zone for electric heating according to different recipes.
With its built-in design and compact 600 × 510mm size, the RDX-GHS025 is suitable for apartment kitchens, residential developments, and kitchen renovation projects requiring a mixed-energy cooking solution.
The hybrid configuration is particularly useful in markets where households prefer to combine gas and electricity in the same cooking appliance. LPG and NG configuration options also provide additional flexibility for different regions.
RIDAX supports OEM/ODM cooperation for global distributors and kitchen appliance brands. Gas configuration, logo, packaging, and other specifications can be discussed according to individual project requirements.
Install the hybrid hob on a stable countertop according to the specified 560 × 480mm cutout size and applicable local installation requirements.
Connect the gas supply according to the configured LPG or natural gas specification. The electrical connection should match the rated 220–240V, 50/60Hz supply and use the correct VDE plug connection.

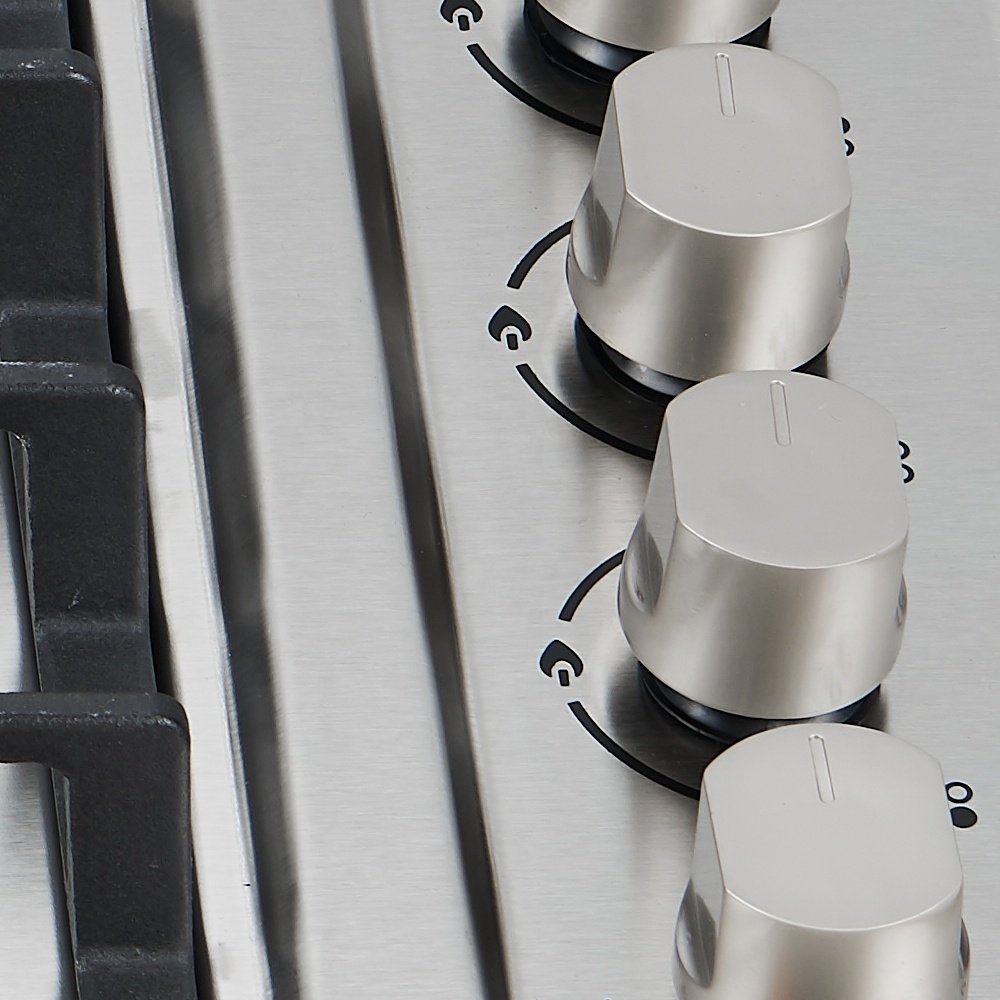

For gas cooking, operate the corresponding control knob to activate the ignition and adjust the flame level as required.
For the ceramic cooking zone, follow the electrical control instructions supplied with the appliance and use suitable cookware according to the ceramic heating system requirements.
After cooking, ensure all gas controls and the electric cooking zone are fully switched off. Gas and electrical installation should be carried out according to local regulations and by qualified personnel where required.
The RDX-GHS025 features three gas burners and one electric ceramic cooking zone, providing both gas and electric cooking functions in one built-in hob.
The three gas burners include a 3.3kW main burner, 1.75kW medium burner, and 1.0kW auxiliary burner, providing different heat levels for various cooking methods.
Yes. The gas burners can be factory-configured for LPG or natural gas (NG) according to destination-market requirements. Please confirm the required gas type before ordering.
The RDX-GHS025 uses electric ignition with a 220–240V, 50/60Hz power supply and VDE plug.
The specified cutout size is 560 × 480mm. Buyers should confirm the final installation drawing before mass installation or project use.
Yes. RIDAX supports OEM/ODM projects for distributors, wholesalers, and kitchen appliance brands, including logo, packaging, gas configuration, and other customization options.
