RD-SS022

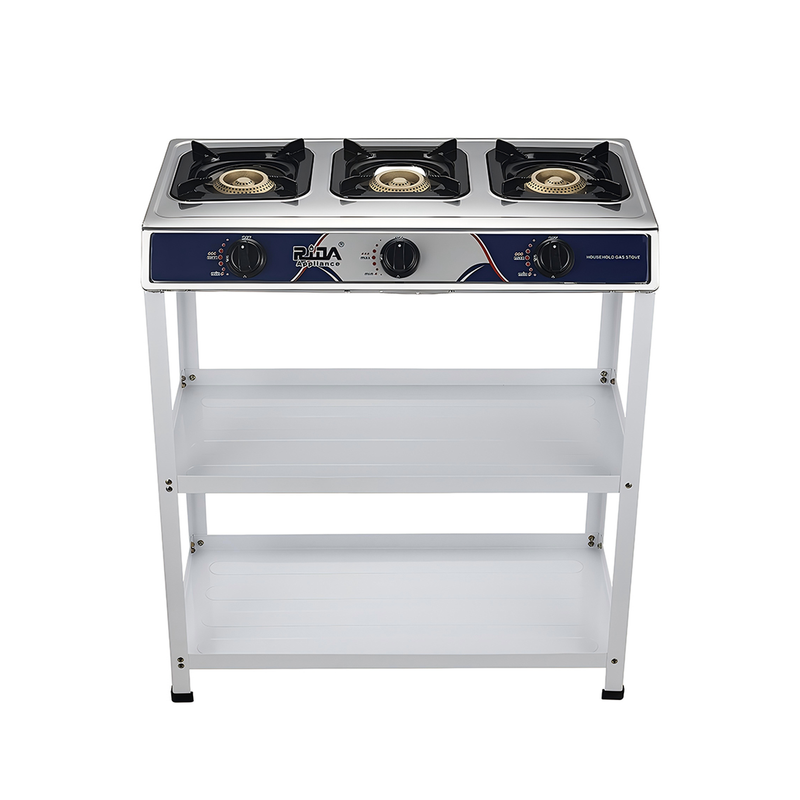

RD-SS022 is equipped with 3 gas burners.
The three-burner configuration allows users to prepare several dishes simultaneously, making it suitable for everyday family meal preparation.

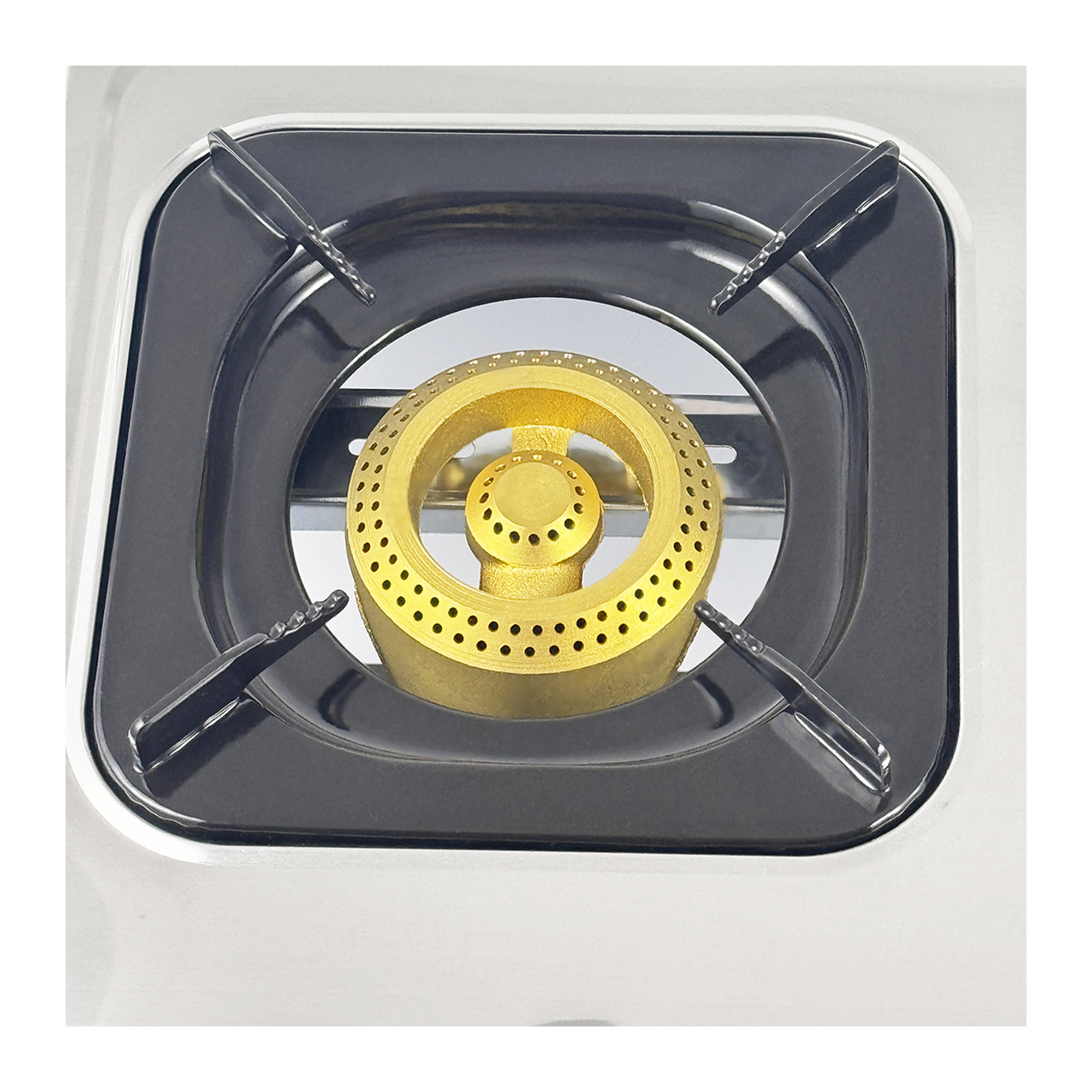

The BOM specifies 400 g cast iron double-ring burners.
The double-ring structure provides a wide flame distribution area and is designed for stable, high-temperature cooking applications. RD-SS022 BOM
The stove uses a 410# stainless steel panel.
The metallic surface provides a practical appearance and matches the standing stove structure. RD-SS022 BOM
Each cooking zone uses a square enameled pan support.
The BOM specifies 120 mm inner-opening square enamel pan supports, providing stable support for cookware during normal cooking. RD-SS022 BOM

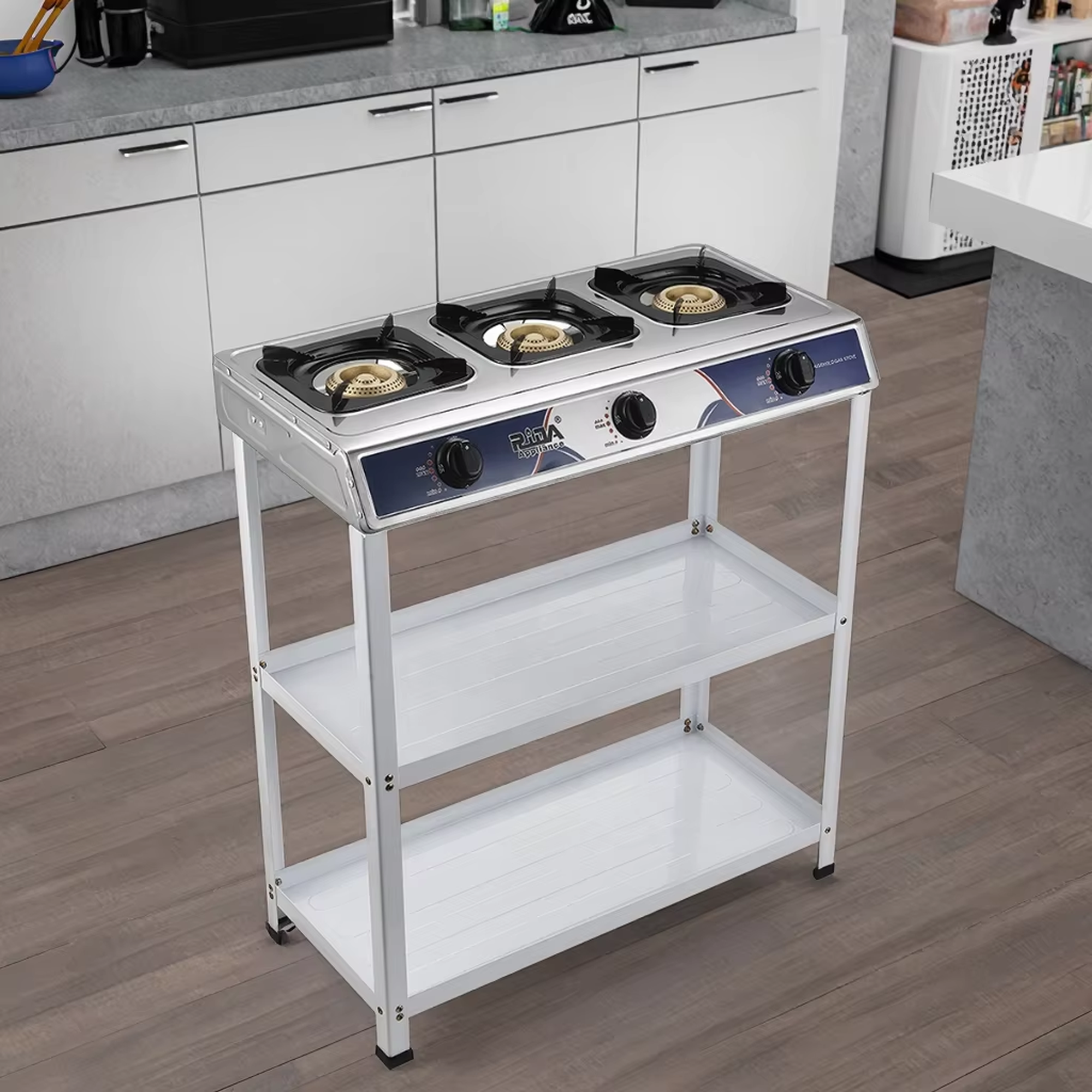

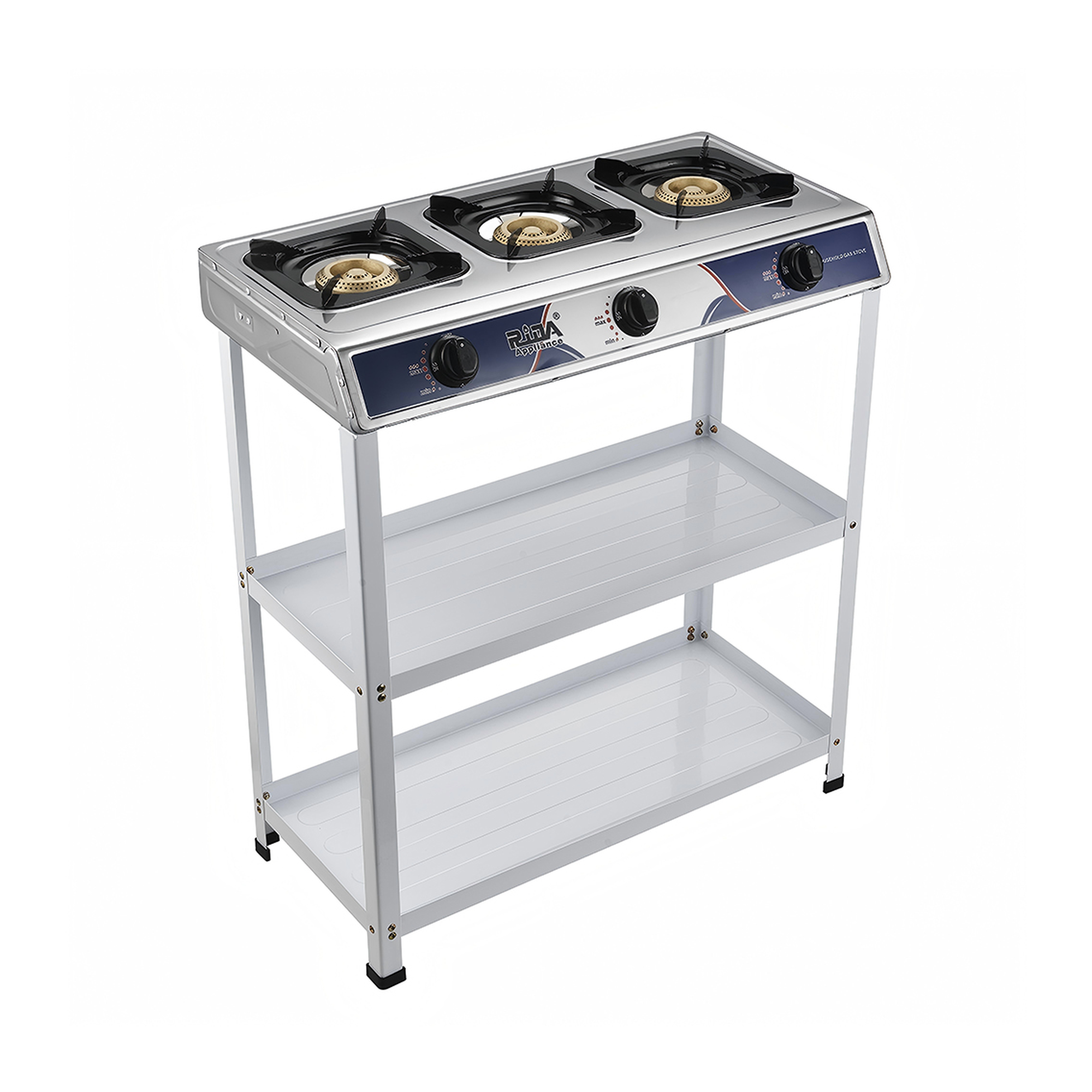

RD-SS022 is designed as a complete standing cooking unit.
It does not require built-in countertop installation and can be positioned in a suitable cooking area after assembly and gas connection.
Two lower shelves provide useful storage space underneath the cooking surface.
Users can store cookware, bowls, ingredients and frequently used kitchen accessories close to the stove.

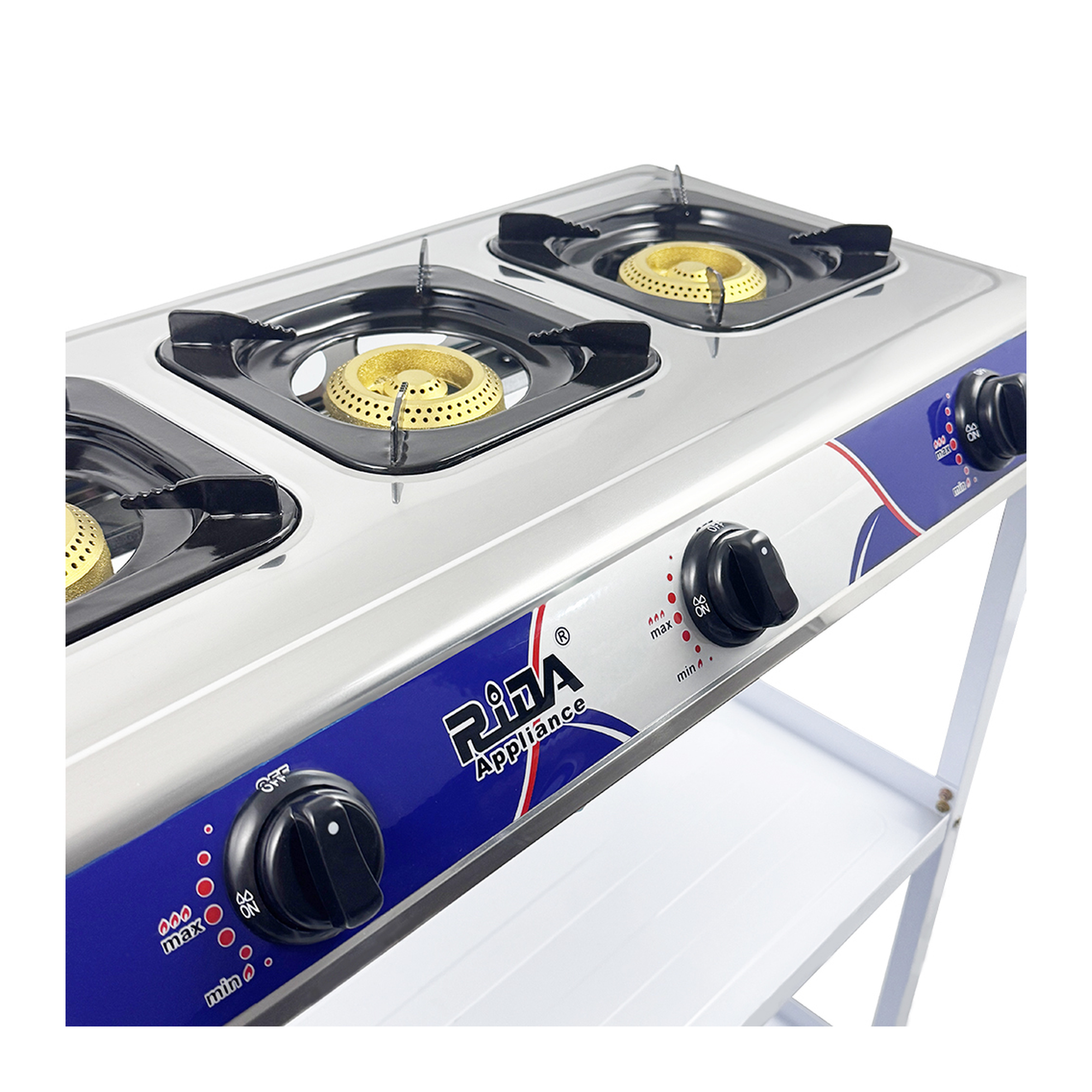

Three front-mounted black ABS knobs independently control the three burners.
The simple control layout makes daily operation straightforward. The BOM confirms black ABS knobs for this model. RD-SS022 BOM

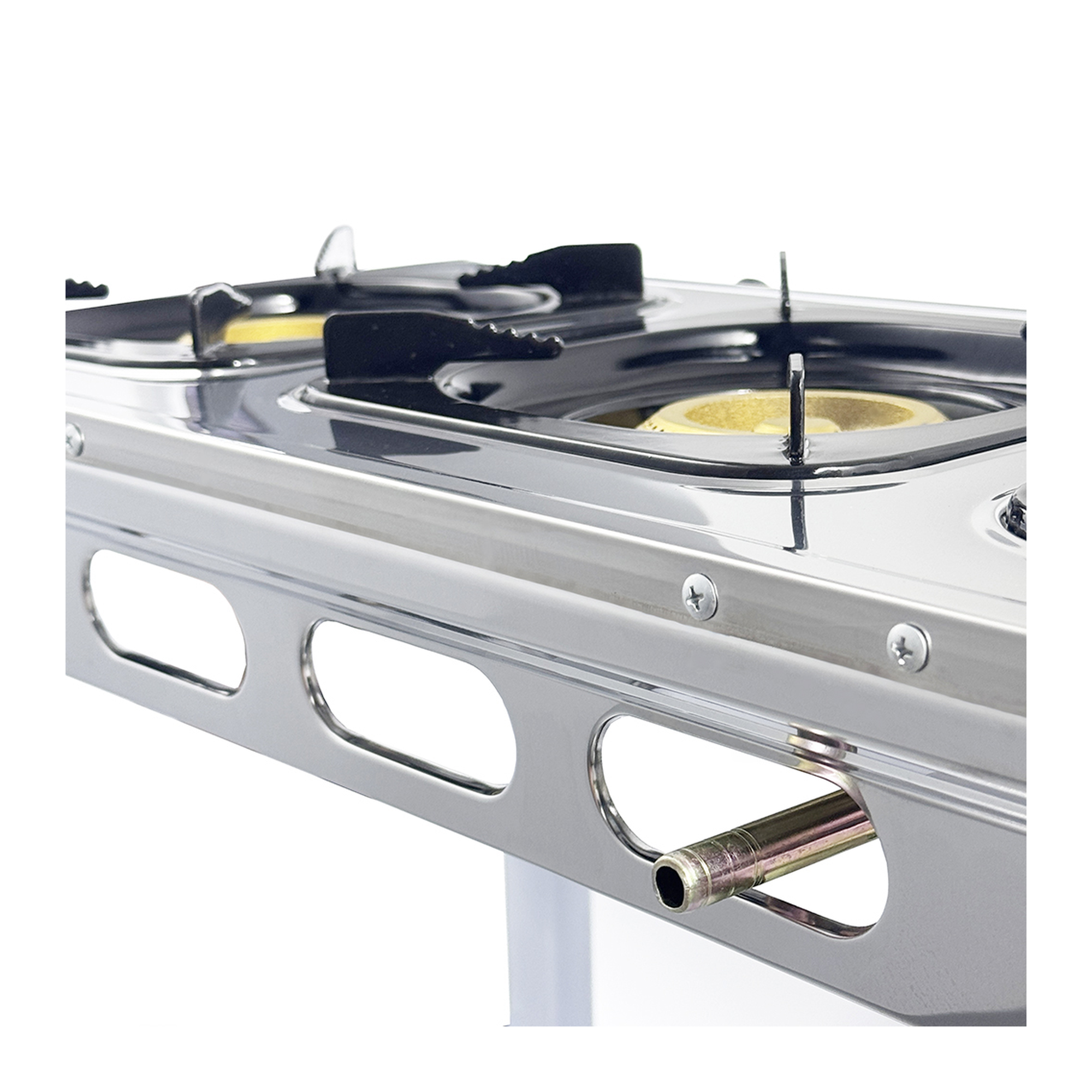

The internal gas distribution system uses an 11.5 mm galvanized gas pipe configured for the three-burner layout. RD-SS022 BOM
The cast iron double-ring burner structure is designed for strong and concentrated heating, making the stove suitable for frying, boiling and other high-heat cooking applications.
RD-SS022 is suitable for appliance wholesalers, importers and distributors.
OEM and ODM requirements for branding, packaging and selected configurations can be discussed according to confirmed orders.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RD-SS022 | Product Type | Freestanding Gas Stove |
Burner Quantity | 3 Burners | Installation | Freestanding |
Panel Material | 410# Stainless Steel | Burner Type | Cast Iron Double-Ring Burner |
Burner Weight | Approx. 400 g / burner | Pan Support | Square Enameled Support |
Pan Support Opening | 120 mm | Gas Pipe | 11.5 mm Galvanized Gas Pipe |
Control Knob | Black ABS | Knob Quantity | 3 |
Stove Feet | PP Material | Storage | Double Open Shelves |
Packing | 5-Layer Carton | Carton Size | 715 × 385 × 95 mm |
20GP Loading | Approx. 880 pcs | 40HQ Loading | Approx. 2050 pcs |
OEM / ODM | Available | Application | Household / Utility Cooking |
The carton size and container quantities come from the current BOM. RD-SS022 BOM RD-SS022 BOM
RD-SS022 is suitable for daily household cooking including boiling, frying, simmering and high-heat meal preparation.
Three burners allow multiple cookware pieces to be used simultaneously.
The standing structure is practical for secondary kitchens and utility cooking areas where built-in cabinetry is not required.
The two lower shelves provide convenient space for pots, bowls and other frequently used kitchen items.
The double-ring cast iron burner structure is suitable for cooking styles that require stronger heat distribution.
RD-SS022 is suitable for appliance distributors, importers and wholesalers seeking practical standing gas stove models.
Install the supporting frame and both storage shelves according to the supplied instructions and ensure all screws are tightened.
Position the stove on a flat and stable floor before connecting the gas supply.
Connect the gas supply according to the confirmed configuration and local installation requirements.
Make sure all three control knobs are in the OFF position before opening the gas supply.
Choose the appropriate burner according to cookware size and cooking requirements.
Ignite the selected burner according to the supplied product operating instructions.
Use the corresponding knob to adjust the flame according to the required cooking task.
Position cookware securely on the enameled square pan support.
Return all controls to the OFF position after use and close the gas supply when required.
Allow the burner, stainless steel panel and pan supports to cool completely before cleaning.
RD-SS022 has 3 gas burners.
The current BOM specifies 400 g cast iron double-ring burners. RD-SS022 BOM
The cooking panel uses 410# stainless steel. RD-SS022 BOM
The stove uses 120 mm square enameled pan supports. RD-SS022 BOM
Yes. The freestanding structure includes two open storage shelves.
The current BOM specifies black ABS control knobs. RD-SS022 BOM
The carton size is approximately 715 × 385 × 95 mm. RD-SS022 BOM
The current BOM lists approximately 880 pcs / 20GP and 2050 pcs / 40HQ. RD-SS022 BOM
No. RD-SS022 is a freestanding three-burner gas stove with storage shelves and does not include an oven.
Yes. OEM and ODM services are available according to confirmed wholesale order requirements.
