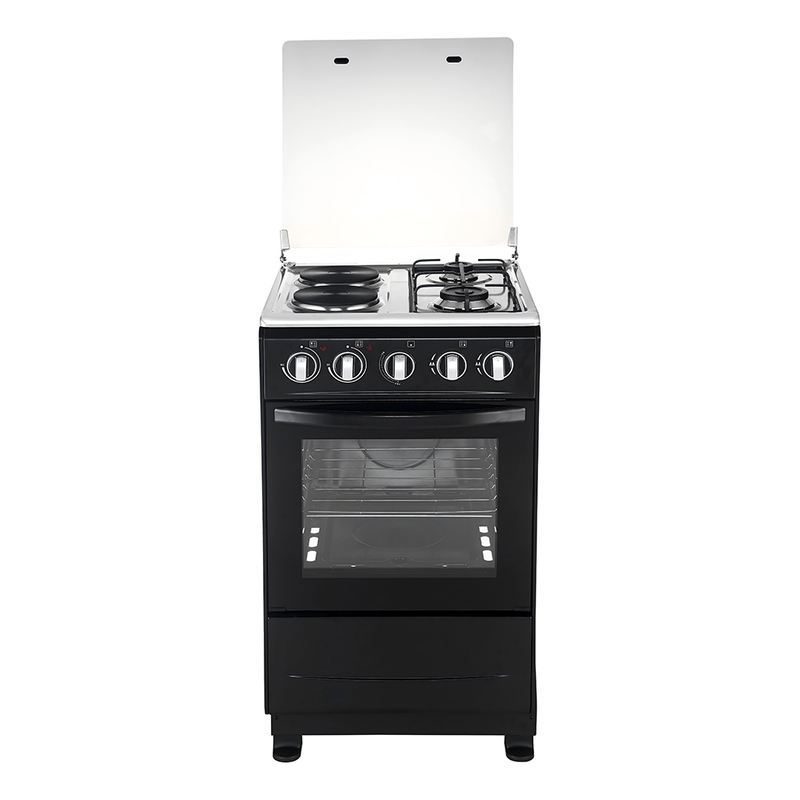

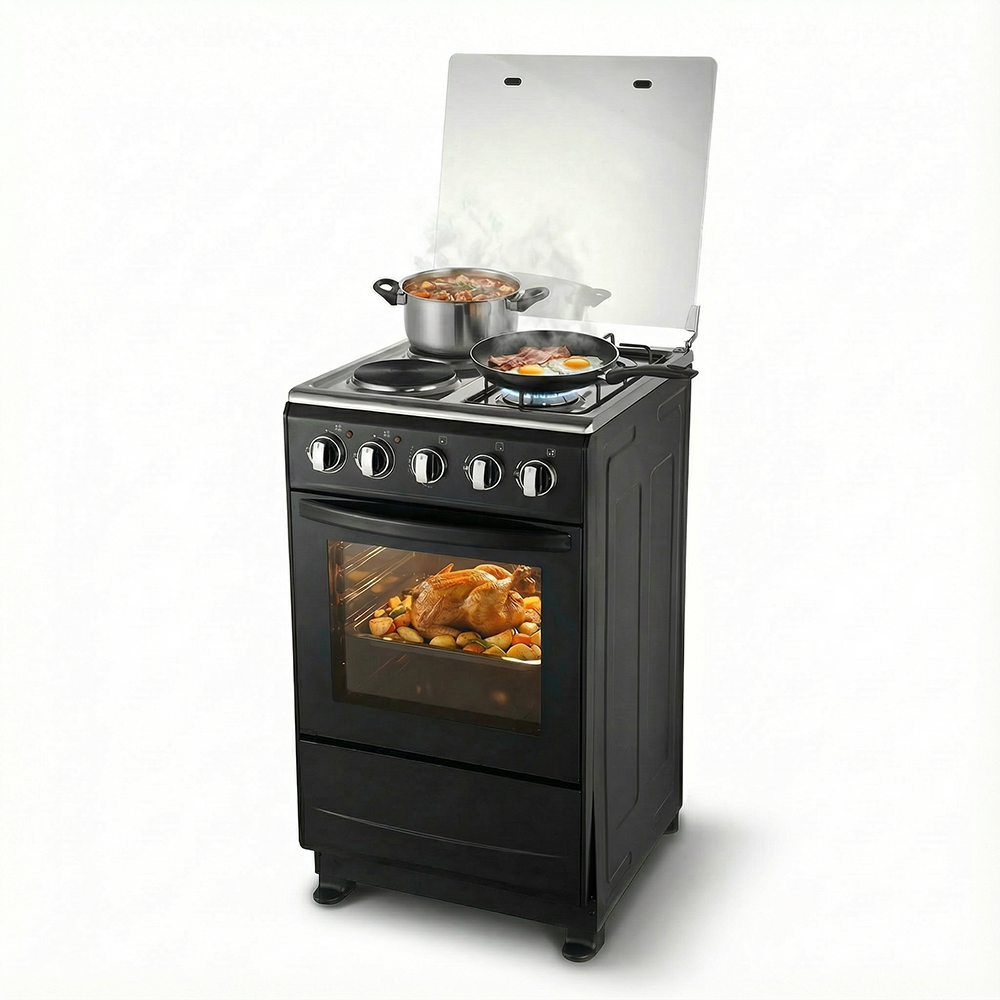

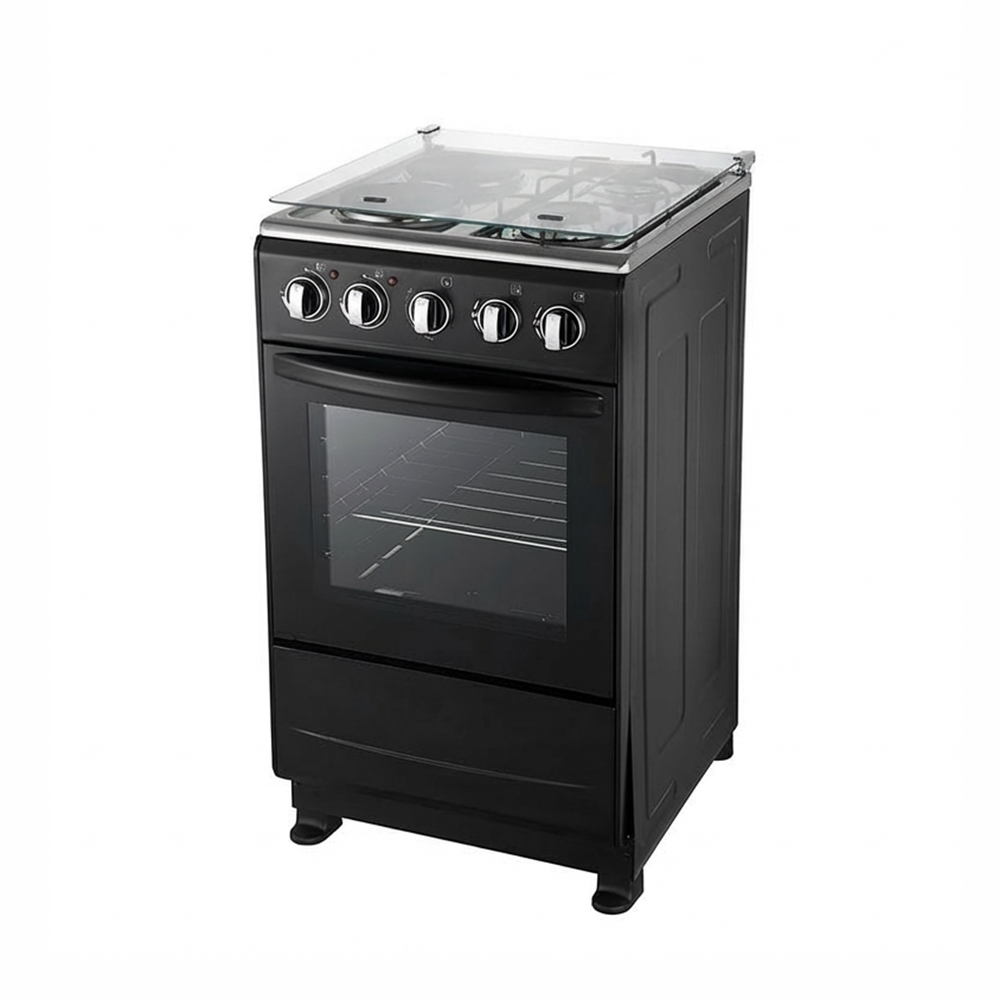

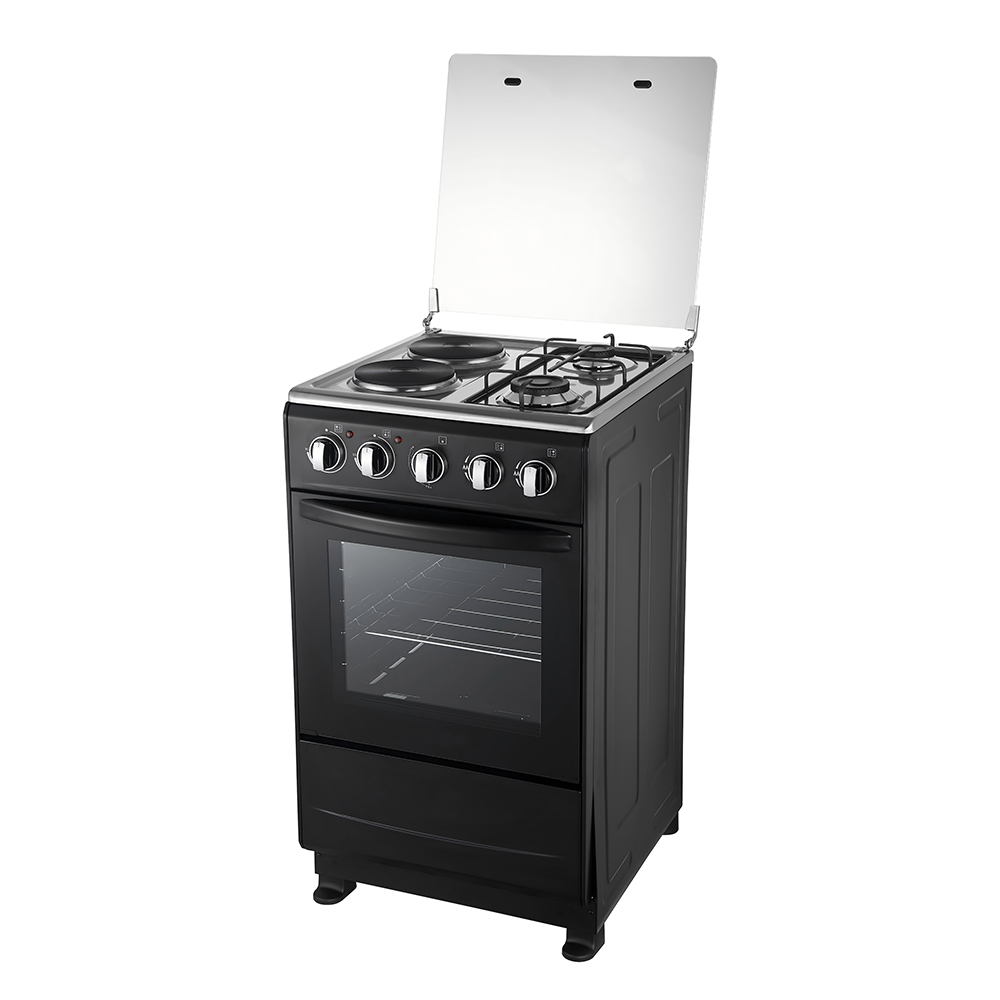

20 Inch Gas & Electric Freestanding Cooker with 55L Oven

Product Advantage

1. Compact 20 Inch Freestanding Design

RDX-GV04 features a compact freestanding structure designed for kitchens where space efficiency is important.

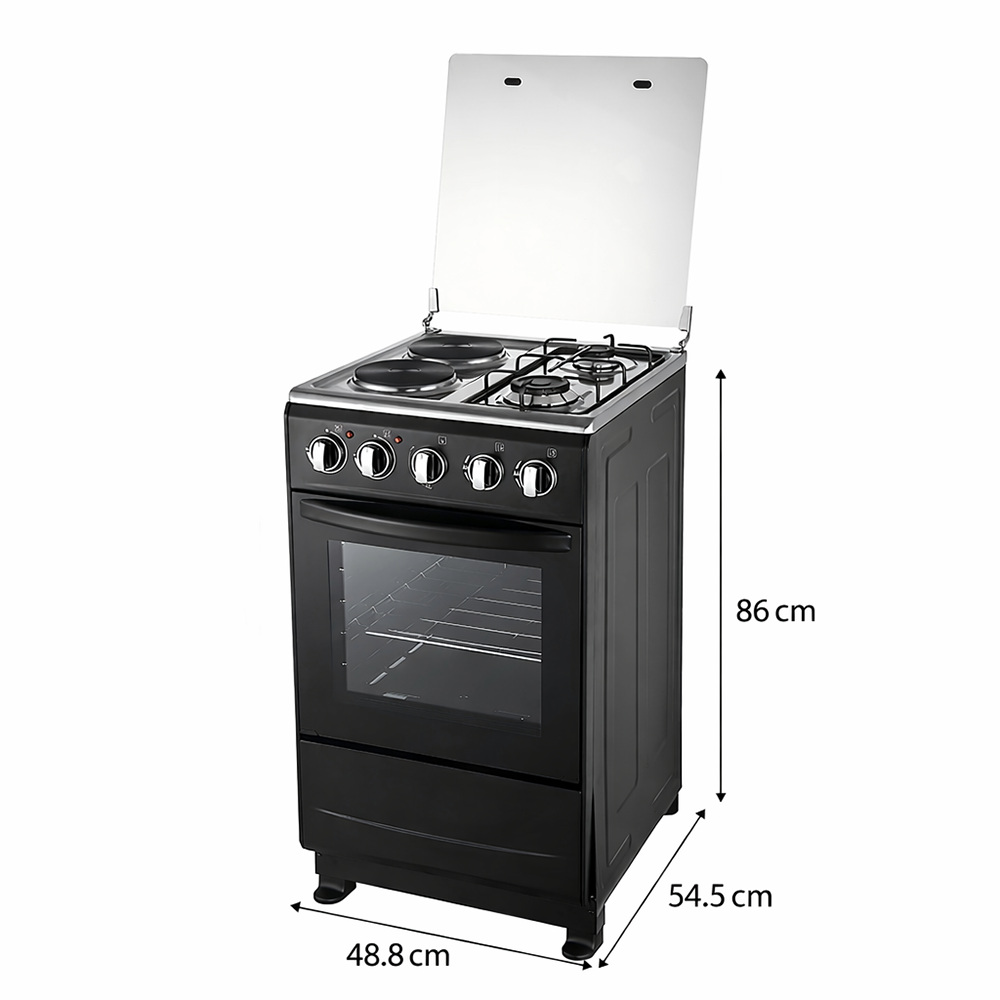

Its approximate dimensions of 488 × 545 × 860 mm make it suitable for apartments, rental homes and smaller household kitchens.

2. Gas & Electric Hybrid Cooking

The cooktop combines gas burners with electric hot plate cooking.

This hybrid design provides additional flexibility for users who want access to both gas and electric cooking methods in one appliance.

3. Two Gas Burner Sizes

The gas cooking section includes:

• Big Burner: 1.4KW / Ø85mm

• Small Burner: 0.9KW / Ø55mm

Different burner sizes support different cookware and everyday cooking requirements.

4. Electric Hot Plate Cooking

The current specification includes a 155mm electric hot plate rated at 1000W.

It provides an additional electric cooking option alongside the gas burners.

5. Stainless Steel Top Plate

RDX-GV04 uses a stainless steel top plate for a clean and practical cooking surface.

The metallic cooktop contrasts with the black body to create a simple and modern appearance.

6. 55L Integrated Oven

The lower section includes a 55L oven.

It provides additional capacity for baking, roasting and reheating during everyday household cooking.

7. Manual Ignition

The current configuration uses manual ignition for the gas burners.

Its straightforward structure is suitable for markets that prefer simple and practical cooker operation.

8. Large Glass Oven Door

The oven door includes a wide glass viewing window.

Users can monitor food during baking or roasting without frequently opening the oven door.

9. LPG or NG Configuration

RDX-GV04 can be configured for LPG or NG according to confirmed order requirements.

This makes the model adaptable to different regional gas supply conditions.

10. OEM & ODM Support

RDX-GV04 is suitable for wholesalers, importers, distributors and appliance sourcing projects.

OEM and ODM services can be discussed for branding, packaging and selected product configurations.

Product Specifications

Product Uses

Household Kitchen

RDX-GV04 provides both gas and electric cooking functions for everyday household meal preparation.

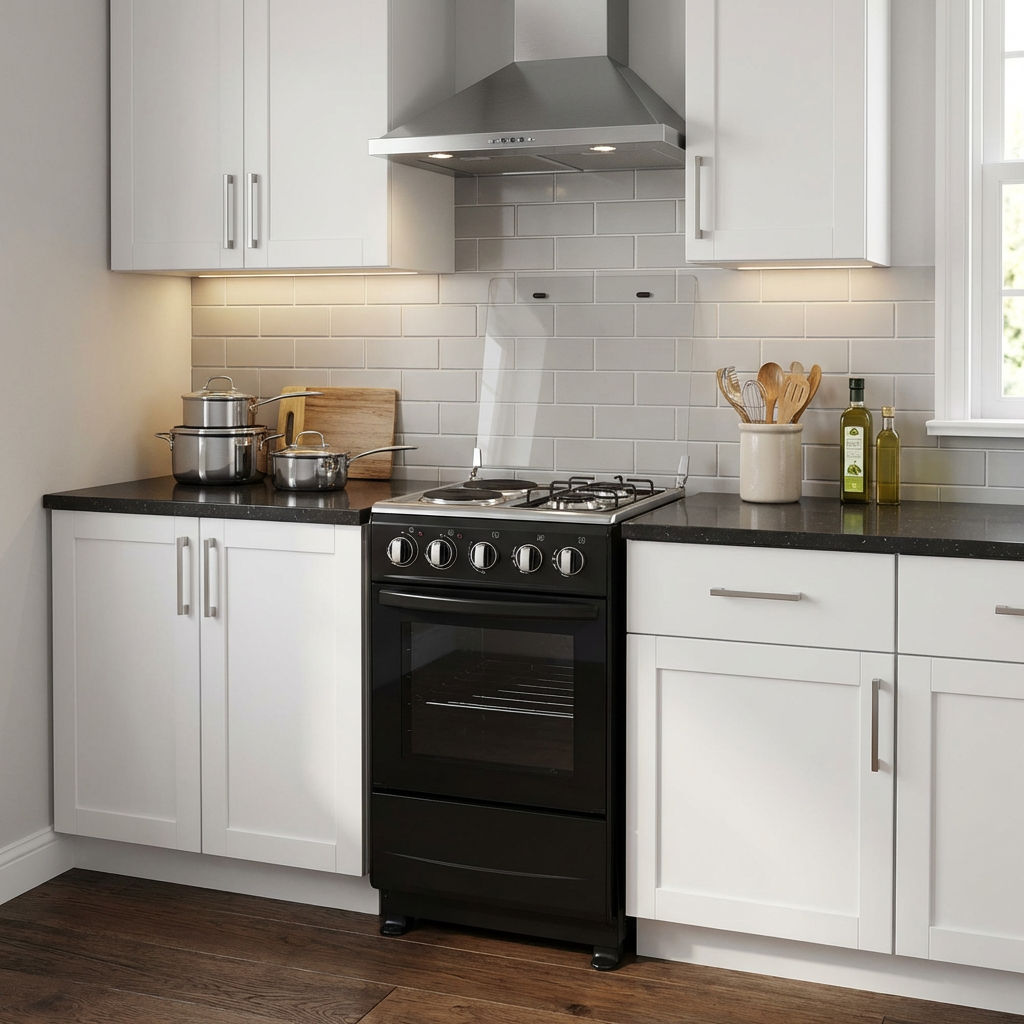

Apartment Kitchen

Its compact 20 inch size makes it suitable for apartments and kitchens with limited available floor space.

Flexible Energy Use

The hybrid gas and electric cooktop provides greater flexibility when different cooking methods are preferred.

Baking & Roasting

The 55L oven supports everyday baking, roasting and reheating requirements.

Rental Housing Projects

Its compact freestanding structure makes RDX-GV04 suitable for rental properties and residential appliance projects.

Wholesale & Distribution

The model is suitable for wholesalers, distributors and importers looking for compact combination cooking appliances.

Product Operate Guide

1. Position the Cooker

Place the cooker on a stable and level floor with suitable ventilation and sufficient clearance around the appliance.

2. Confirm the Gas Configuration

Before installation, confirm whether the product is configured for LPG or NG according to the order specification.

3. Check the Gas Connection

Make sure the gas connection is installed properly according to local requirements.

4. Confirm All Controls Are Off

Before operation, make sure all control knobs are in the OFF position.

5. Operate the Gas Burner

Use the manual ignition method to ignite the selected gas burner and adjust the flame with the corresponding knob.

6. Operate the Electric Hot Plate

Use the corresponding control to operate the electric hot plate according to the required cooking task.

7. Use the Oven

Operate the oven according to the required baking, roasting or reheating application.

8. Monitor Cooking

Use the glass viewing window to monitor food during oven operation.

9. Turn Off After Use

Return all controls to the OFF position after cooking and close the gas supply when required.

10. Clean After Cooling

Allow the appliance to cool completely before cleaning the cooktop, burners, electric hot plate, control panel and oven interior.

FAQ

Q1: What size is RDX-GV04?

RDX-GV04 is a compact 20 inch freestanding cooking range.

Q2: What are the product dimensions?

The product dimensions are approximately 488 × 545 × 860 mm.

Q3: Does this cooker use both gas and electricity?

Yes. RDX-GV04 combines gas burners and electric hot plate cooking.

Q4: How many gas burners does it have?

The current configuration includes 2 gas burners, one large burner and one small burner.

Q5: What is the power of the large burner?

The large gas burner is rated at 1.4KW with an approximate diameter of 85mm.

Q6: What is the power of the small burner?

The small gas burner is rated at 0.9KW with an approximate diameter of 55mm.

Q7: What is the electric hot plate specification?

The supplied specification lists a 155mm / 1000W electric hot plate.

Q8: What is the oven capacity?

The integrated oven capacity is 55L.

Q9: What ignition method does it use?

The gas burner configuration uses manual ignition.

Q10: Can it use LPG and NG?

Yes. The model can be configured for LPG or NG according to order requirements.

Q11: Is a safety device available?

Yes. A safety device is listed as an optional configuration.

Q12: Do you support OEM and ODM?

Yes. OEM and ODM services are available for wholesale, distribution and project orders.
