RDX-GH008

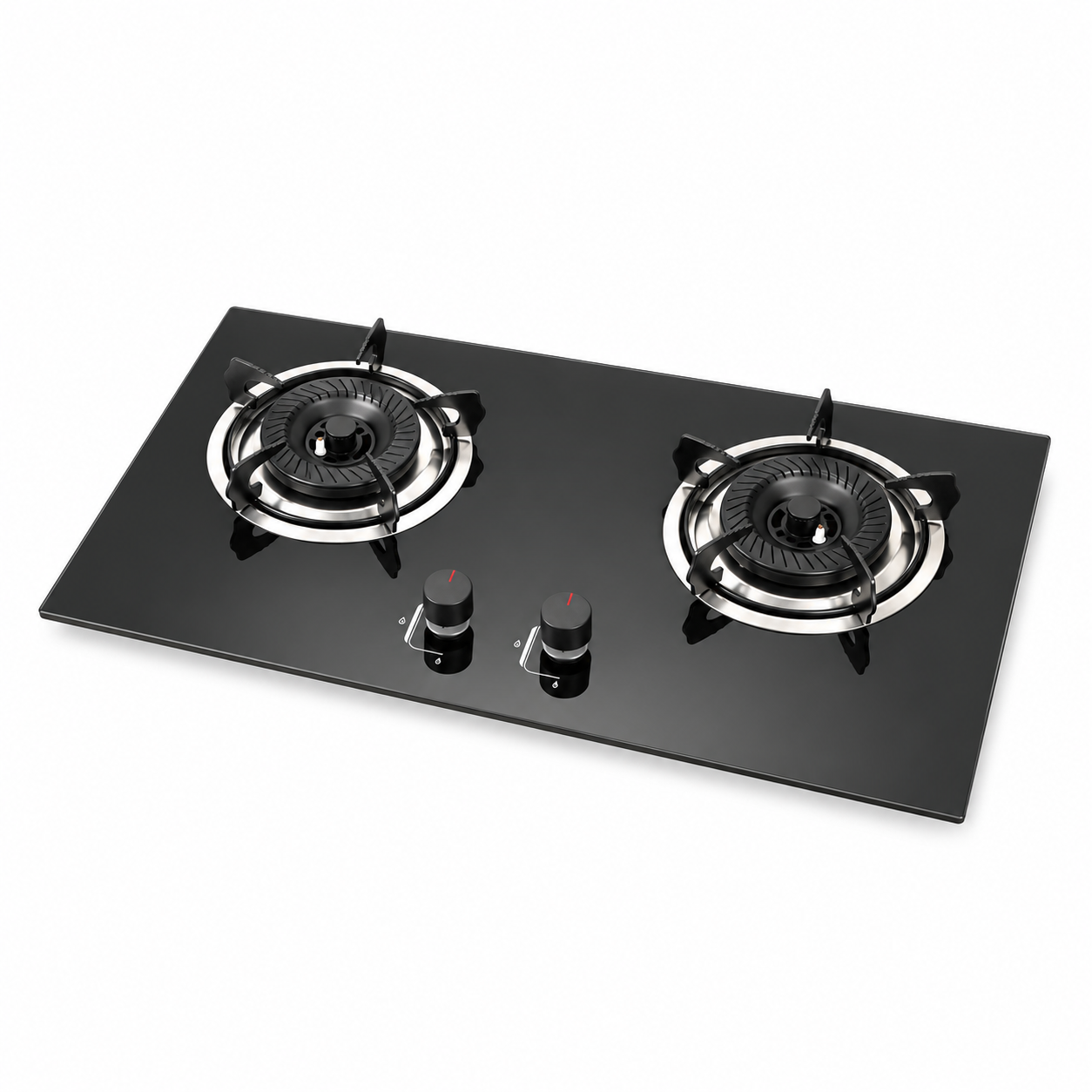

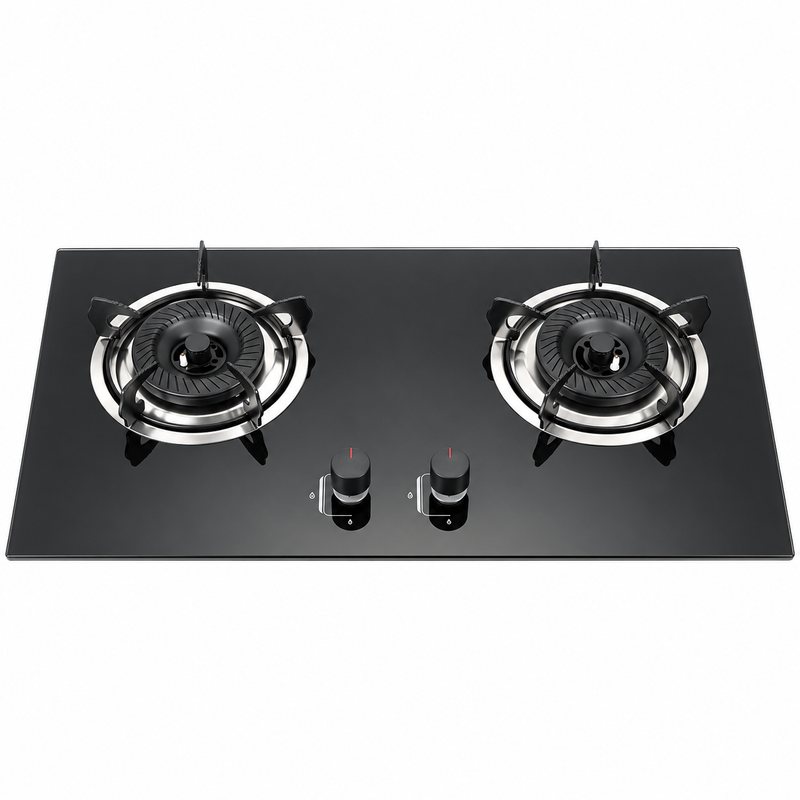

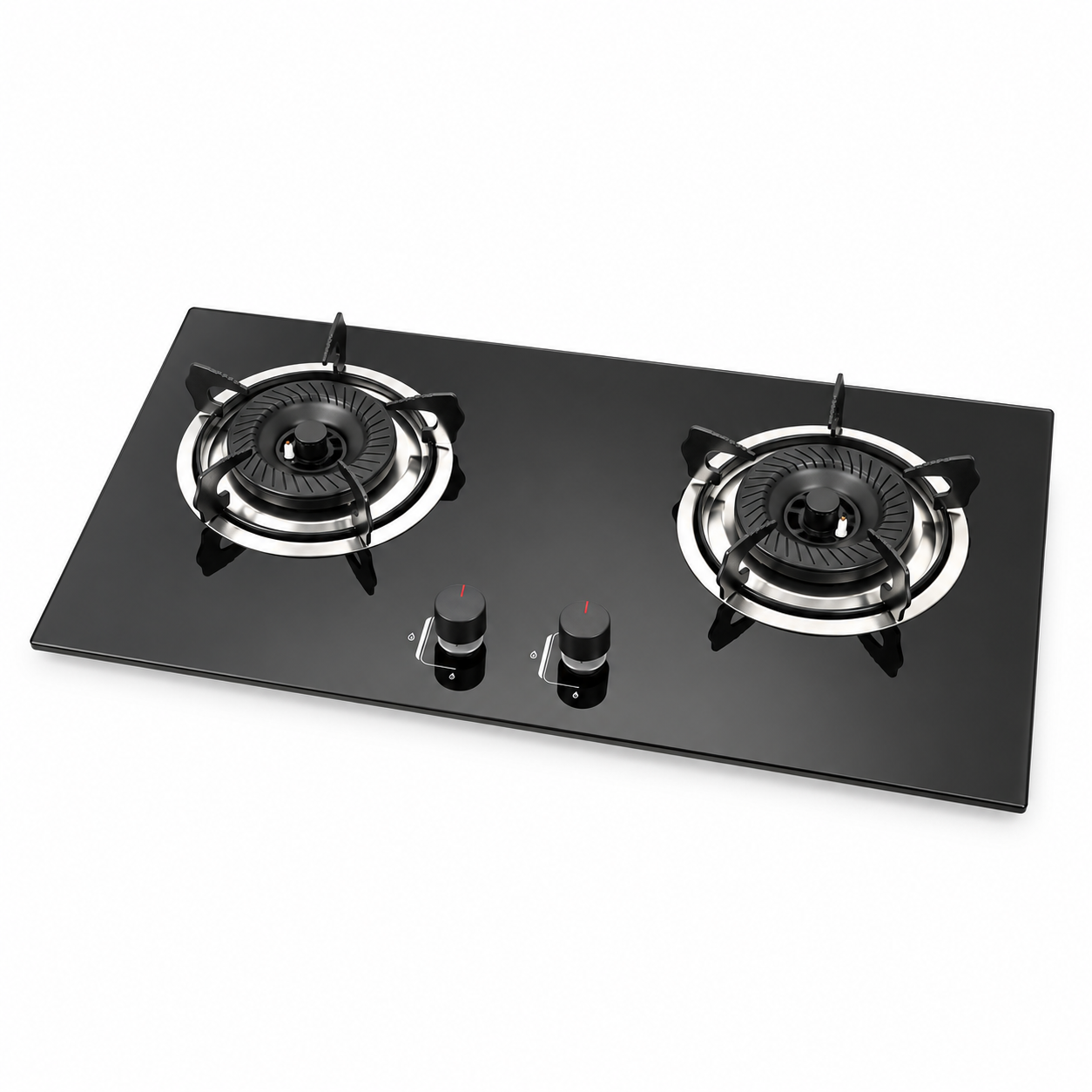

RDX-GH008 is equipped with 2 gas burners.
The double-burner design provides enough cooking flexibility for common household tasks while maintaining a compact built-in structure.
The hob uses a 730 × 410 × 6 mm black tempered glass panel.
Its glossy dark surface creates a modern appearance and integrates neatly with different countertop and cabinet styles.
RDX-GH008 is designed for built-in installation.
The bottom shell is designed for an approximate 630 × 330 mm installation opening, helping the hob fit neatly into prepared countertops.

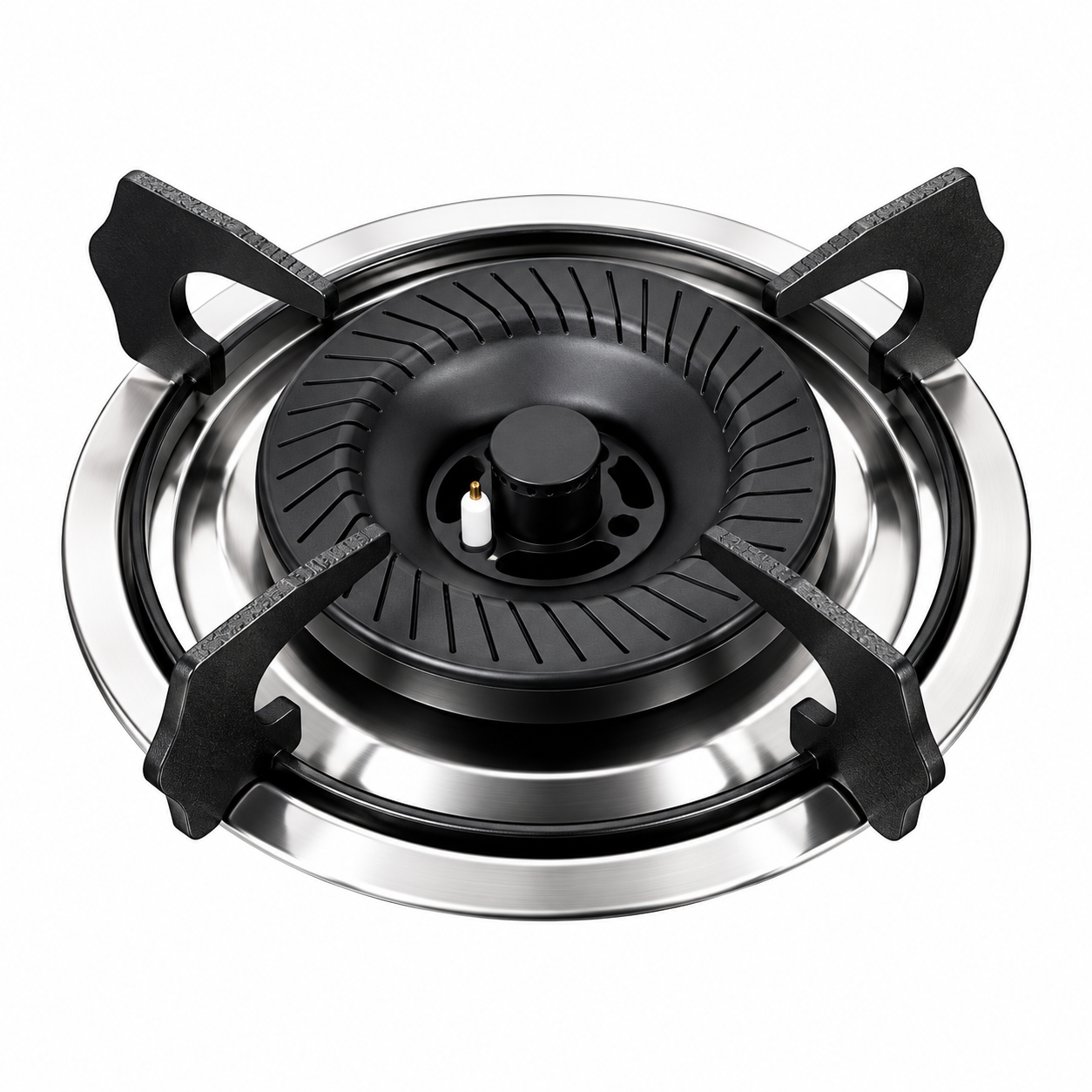

The model uses 100 mm high cast iron burners.
The solid burner structure is suitable for common household cooking applications.
Each burner uses a black steel burner cap together with a black decorative ring.
The dark burner components complement the black glass panel for a coordinated appearance.
The hob includes 187 mm stainless steel drip trays positioned around the burners.
These components provide a clean metallic contrast against the dark glass surface.
RDX-GH008 uses a dual pulse ignition system.
This provides convenient burner ignition during everyday use.

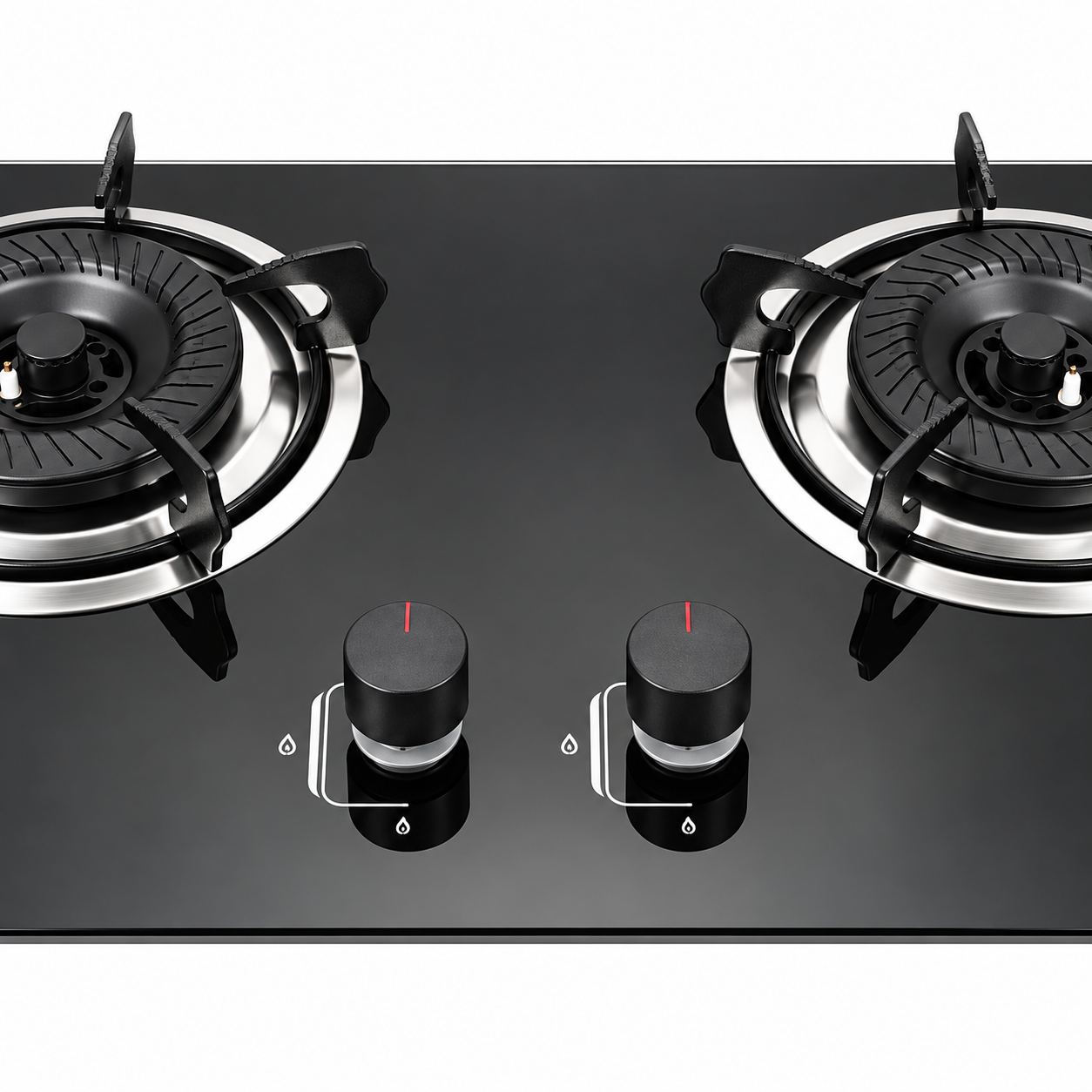

Two ABS rotary knobs are positioned at the front of the hob.
Each knob independently controls one burner for straightforward daily operation.
The two-burner configuration is suitable for smaller kitchens, apartments and residential projects where countertop space is limited.
RDX-GH008 is suitable for appliance wholesalers, importers and distributors.
OEM and ODM requirements for branding, packaging and selected product configurations can be discussed according to confirmed orders.

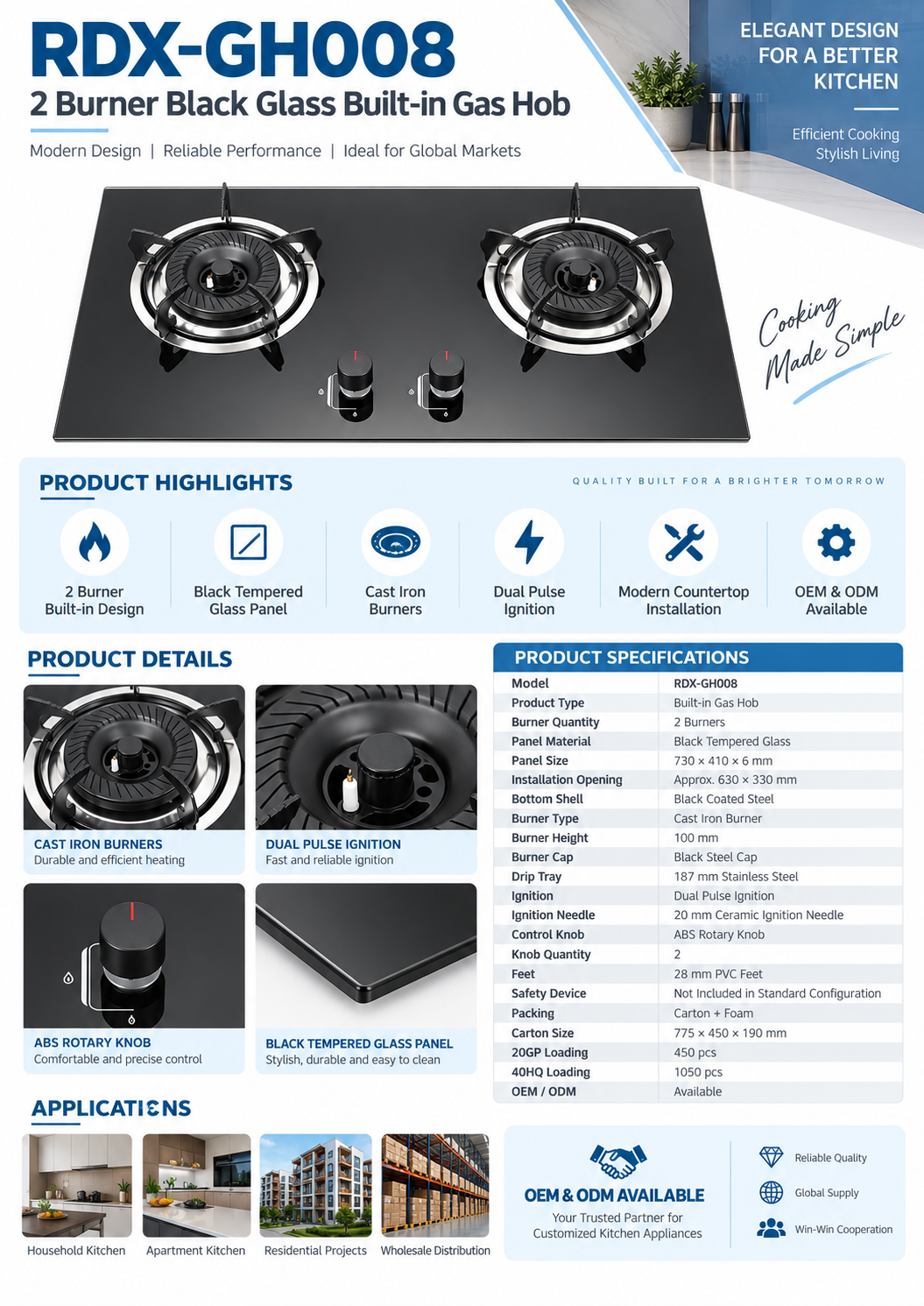

Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GH008 | Product Type | Built-in Gas Hob |
Burner Quantity | 2 Burners | Installation | Built-in |
Panel Material | Black Tempered Glass | Panel Size | 730 × 410 × 6 mm |
Bottom Shell | Black Coated Steel | Installation Opening | Approx. 630 × 330 mm |
Burner Type | Cast Iron Burner | Burner Height | 100 mm |
Burner Quantity | 2 Sets | Burner Cap | Black Steel Cap |
Decorative Ring | Black High-Temperature Finish | Drip Tray | 187 mm Stainless Steel |
Pan Support | 187 mm Support | Ignition | Dual Pulse Ignition |
Ignition Needle | 20 mm Ceramic Ignition Needle | Control Knob | ABS Rotary Knob |
Knob Quantity | 2 | Feet | 28 mm PVC Feet |
Safety Device | Not Included in Standard Configuration | Packing | Carton + Foam |
Carton Size | 775 × 450 × 190 mm | 20GP Loading | 450 pcs |
40HQ Loading | 1050 pcs | OEM / ODM | Available |
RDX-GH008 is suitable for everyday boiling, frying, simmering and other common household cooking tasks.
The two-burner layout is suitable for apartments and smaller kitchens where space efficiency is important.
Its built-in structure and black glass appearance make it suitable for residential developments and kitchen renovation projects.
The model provides practical gas cooking capacity without occupying the space required by larger multi-burner hobs.
RDX-GH008 is suitable for appliance wholesalers, importers and regional distributors.
Branding, packaging and selected configuration requirements can be customized according to confirmed orders.
Confirm that the countertop opening matches the required installation dimensions before installation.
Place the hob securely into the prepared countertop opening.
Ensure the gas connection is installed correctly and checked for leakage according to local requirements.
Install the required battery according to the supplied product instructions before using the pulse ignition system.
Before ignition, ensure both control knobs are in the OFF position.
Turn the corresponding knob and use the pulse ignition system to ignite the required burner.
Adjust the flame according to cookware size and cooking requirements.
Place appropriately sized cookware securely on the pan support.
Return the control knob to the OFF position after use and close the gas supply when required.
Allow the glass panel, burner caps, drip trays and pan supports to cool completely before cleaning.
RDX-GH008 has 2 gas burners.
The tempered glass panel size is approximately 730 × 410 × 6 mm.
It uses a black tempered glass panel.
Yes. RDX-GH008 is designed for built-in countertop installation.
The bottom structure is designed for an approximate 630 × 330 mm opening.
The model uses 100 mm high cast iron burners.
RDX-GH008 uses a dual pulse ignition system.
No. The BOM specifies the standard version as without flame failure protection. A safety version can be discussed separately according to order requirements.
The carton size is approximately 775 × 450 × 190 mm.
The listed loading quantities are approximately 450 pcs / 20GP and 1050 pcs / 40HQ.
According to the current BOM, the standard configuration does not include the battery or gas hose. Additional accessories can be quoted separately.
Yes. OEM and ODM services are available for wholesale and project orders.
