RDX-GHS028
Q: Can the RDX-GHS028 gas hob work with LPG and natural gas?
A:
Yes. The RDX-GHS028 can be configured for LPG or natural gas (NG) according to different market requirements. Please confirm the required gas type before production.
1. Four SABAF-style Burners for Flexible Heat Control
The RDX-GHS028 features four Chinese SABAF burners with different heat outputs, including a powerful 3.3kW main burner, two 1.75kW medium burners, and one 1.0kW auxiliary burner.
This burner combination supports different cooking methods such as boiling, frying, simmering, and multi-dish preparation, providing practical flexibility for everyday family cooking.
2. 8mm Tempered Glass Panel – Durable and Easy to Clean
The hob is built with an 8mm tempered glass panel, offering a modern appearance, excellent heat resistance, and convenient daily cleaning.
The smooth black glass surface gives the product a premium built-in look while making routine maintenance easier for household kitchens and residential projects.
3. Special Cast Iron Pan Supports for Stable Cooking
The RDX-GHS028 uses special square-design black coated cast iron pan supports, providing stable cookware support during cooking.
The heavy-duty structure helps keep pots and pans securely positioned and enhances the overall durability of the hob for regular daily use.

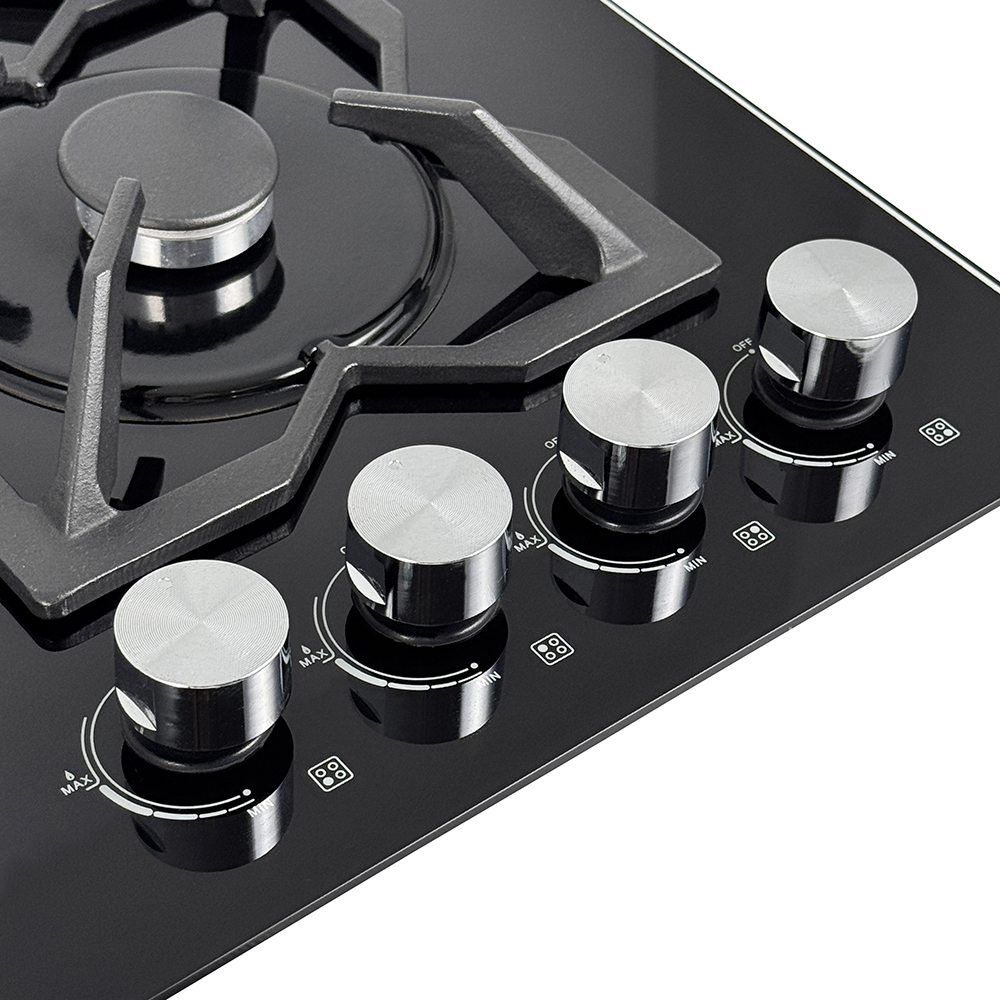

4. Battery Ignition & Metal Control Knobs
The hob is equipped with a 1 × 1.5V DC battery ignition system, allowing convenient burner startup without requiring a mains electrical connection.
Four metal control knobs provide independent flame adjustment for each burner, giving users precise control according to different cooking requirements.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS028 | Product Type | Built-in Gas Hob |
Panel | Tempered Glass | Panel Size | 610 × 580 × 8mm |
Product Size | 600 × 510mm | Cutout Size | 560 × 480mm |
Bottom Body | Galvanized Steel | Burner Quantity | 4 Burners |
Left Front Burner | Chinese SABAF A, 3.3kW | Left Rear Burner | Chinese SABAF C, 1.75kW |
Right Front Burner | Chinese SABAF D, 1.0kW | Right Rear Burner | Chinese SABAF C, 1.75kW |
Pan Support | Black Coated Cast Iron | Water Tray | Black Stainless Steel |
Ignition | 1 × 1.5V DC Battery | Gas Pipe | Aluminum Pipe with L-shape Connector |
Knob | Metal | Gas Type | LPG / NG |
Carton Size | 610 × 520 × 100mm | Packing | 5-layer Brown Box with Foam |
Loading Qty | 20GP: Approx. 850 PCS | 40HQ | Approx. 2000 PCS |
OEM/ODM | Available | Brand | RIDAX |
Modern Household Kitchens
The four-burner configuration provides flexible cooking capacity for everyday family meals, allowing several dishes to be prepared at the same time.
Apartments & Residential Projects
With its built-in design and black tempered glass surface, the RDX-GHS028 is suitable for apartments, residential developments, and modern kitchen renovation projects.
Retail & Wholesale Markets
The combination of SABAF-style burners, tempered glass panel, and special cast iron supports makes this model suitable for distributors, wholesalers, retailers, and kitchen appliance brands.
OEM & ODM Projects
RIDAX supports OEM/ODM cooperation for global buyers, including logo, packaging, gas configuration, and other product customization requirements.
Install the gas hob on a stable countertop according to the specified 560 × 480mm cutout size and applicable local installation requirements.
Connect the gas supply according to the configured LPG or natural gas specification and ensure all connections are secure before use.
Turn the corresponding metal control knob to activate the 1.5V battery ignition system and adjust the flame according to the required cooking level.
During operation, place cookware securely on the cast iron pan supports and maintain adequate kitchen ventilation.
After cooking, turn all control knobs completely to the OFF position and close the main gas supply. Keep the glass surface, burners, and pan supports clean to maintain reliable long-term performance.
Gas installation and conversion should be carried out according to local regulations and by qualified personnel where required.
Q1: How many burners does the RDX-GHS028 have?
The RDX-GHS028 features four gas burners with different heat outputs for flexible cooking.
Q2: What are the burner power ratings?
The burner configuration includes 3.3kW, 1.75kW, 1.75kW, and 1.0kW outputs.
Q3: What material is used for the panel?
The hob uses an 8mm tempered glass panel, providing good heat resistance, durability, and easy cleaning.
Q4: What type of pan supports are included?
The RDX-GHS028 uses special square-design black coated cast iron pan supports for stable cookware placement.
Q5: What ignition system does this model use?
It uses a 1 × 1.5V DC battery ignition system, so no mains electrical connection is required for ignition.
Q6: Can this model use both LPG and natural gas?
Yes. It can be factory-configured for LPG or natural gas (NG) according to destination-market requirements.
Q7: Can RIDAX provide OEM/ODM services?
Yes. RIDAX supports OEM/ODM cooperation for distributors, wholesalers, retailers, and kitchen appliance brands.
