RDX-GHS030
RDX
Q: Can the RDX-GHS030 gas hob be configured for LPG and natural gas?
A:
Yes. The RDX-GHS030 can be configured for LPG or natural gas (NG) according to different market requirements. Please confirm the required gas type before production so the correct gas configuration can be prepared.

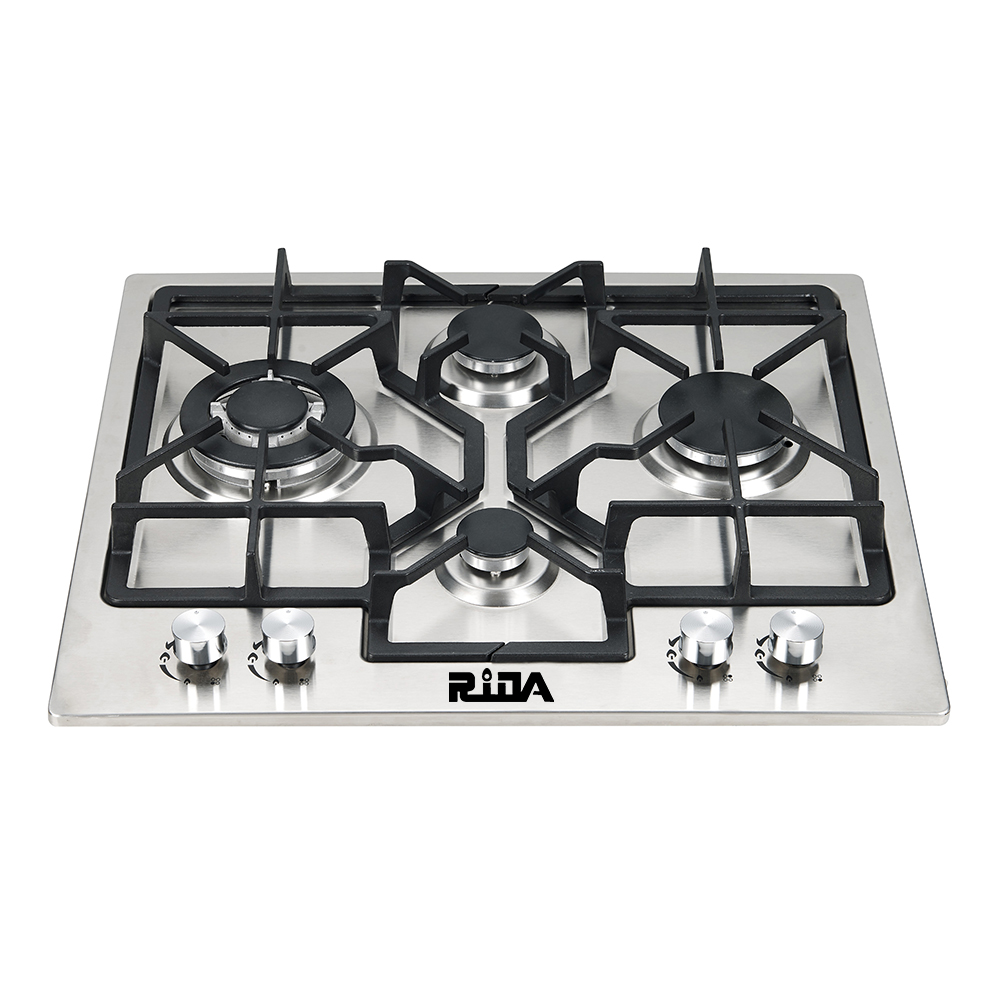

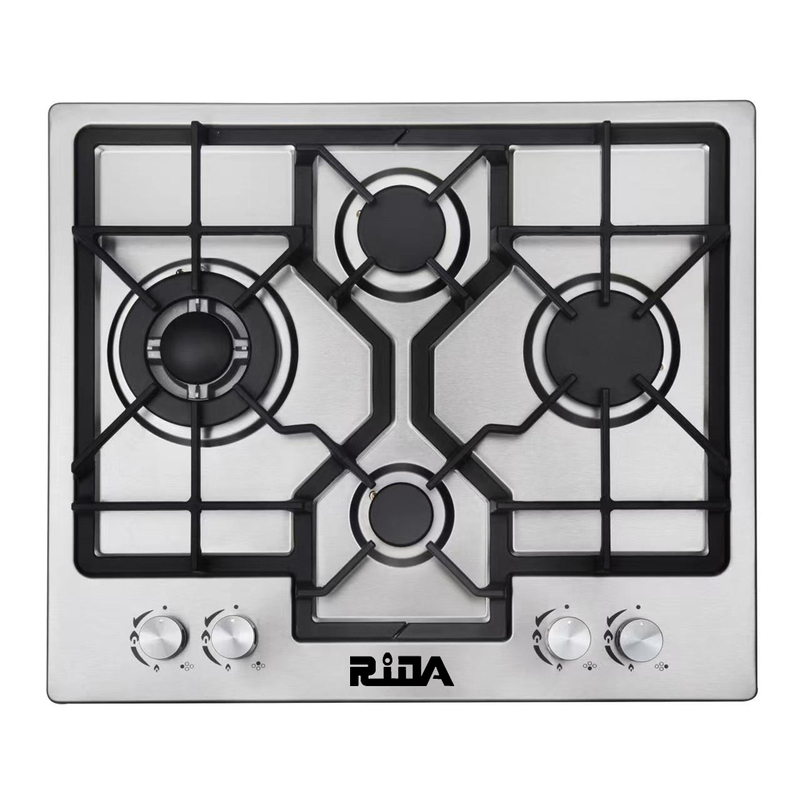

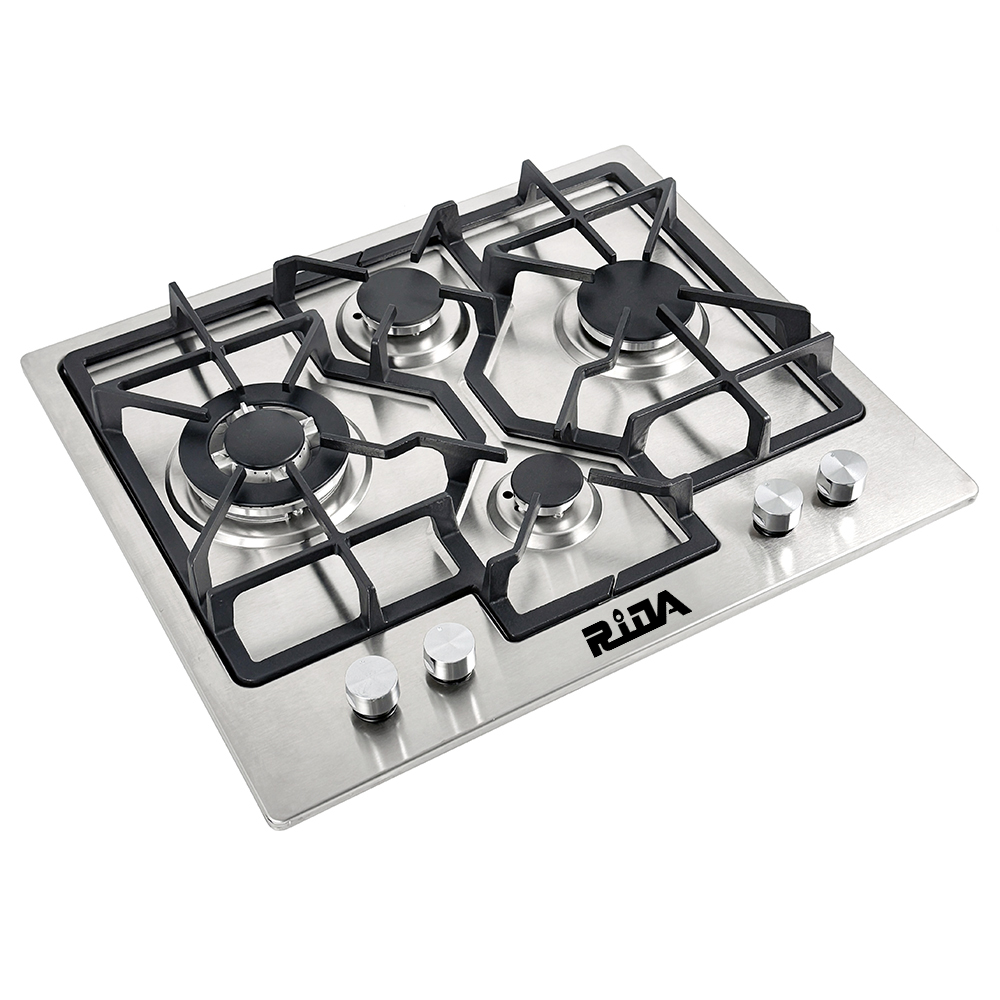

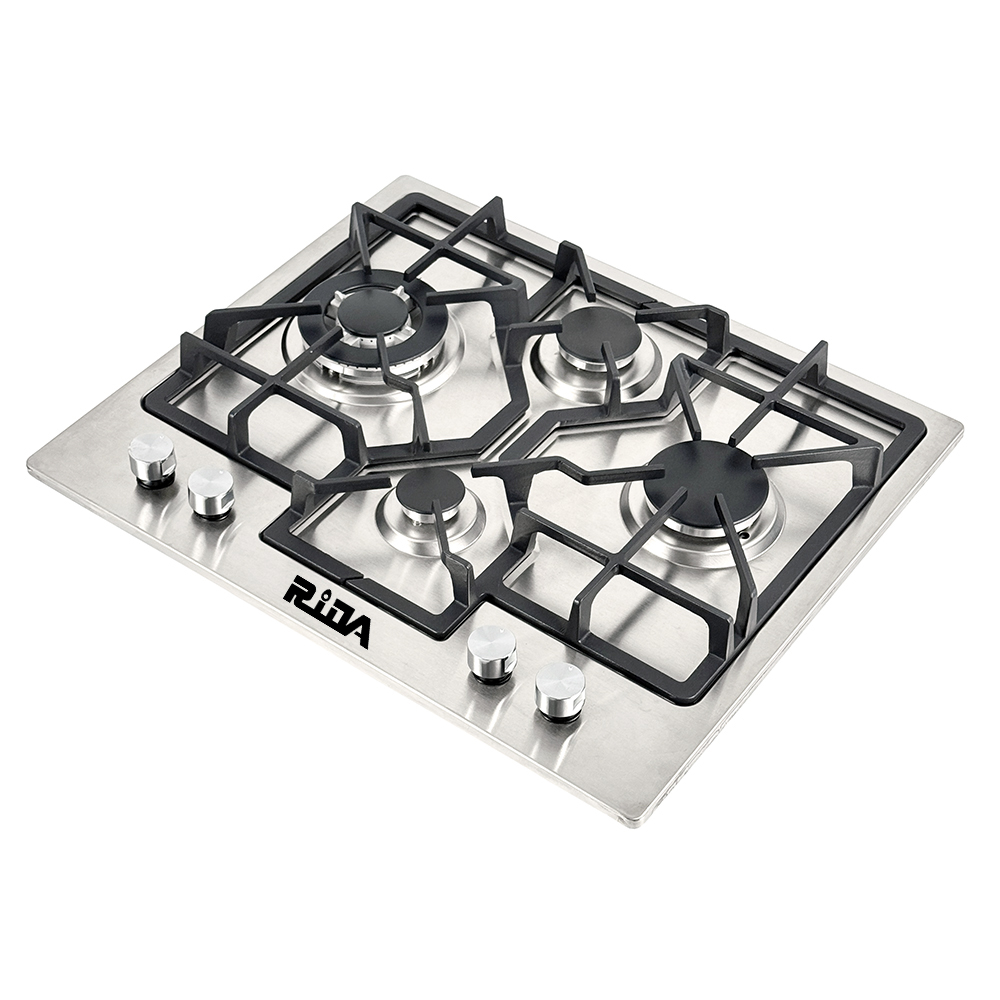

The RDX-GHS030 features a practical four-burner cooking layout, allowing several dishes to be prepared at the same time. Different burner positions provide flexible cooking space for boiling, frying, simmering, and everyday meal preparation.
The spacious 600 × 510mm cooking surface makes this built-in gas hob suitable for households, apartments, and light commercial kitchens where efficient multi-dish cooking is required.
The hob is constructed with a 0.6mm stainless steel panel and galvanized steel bottom shell for reliable structural strength and heat resistance.

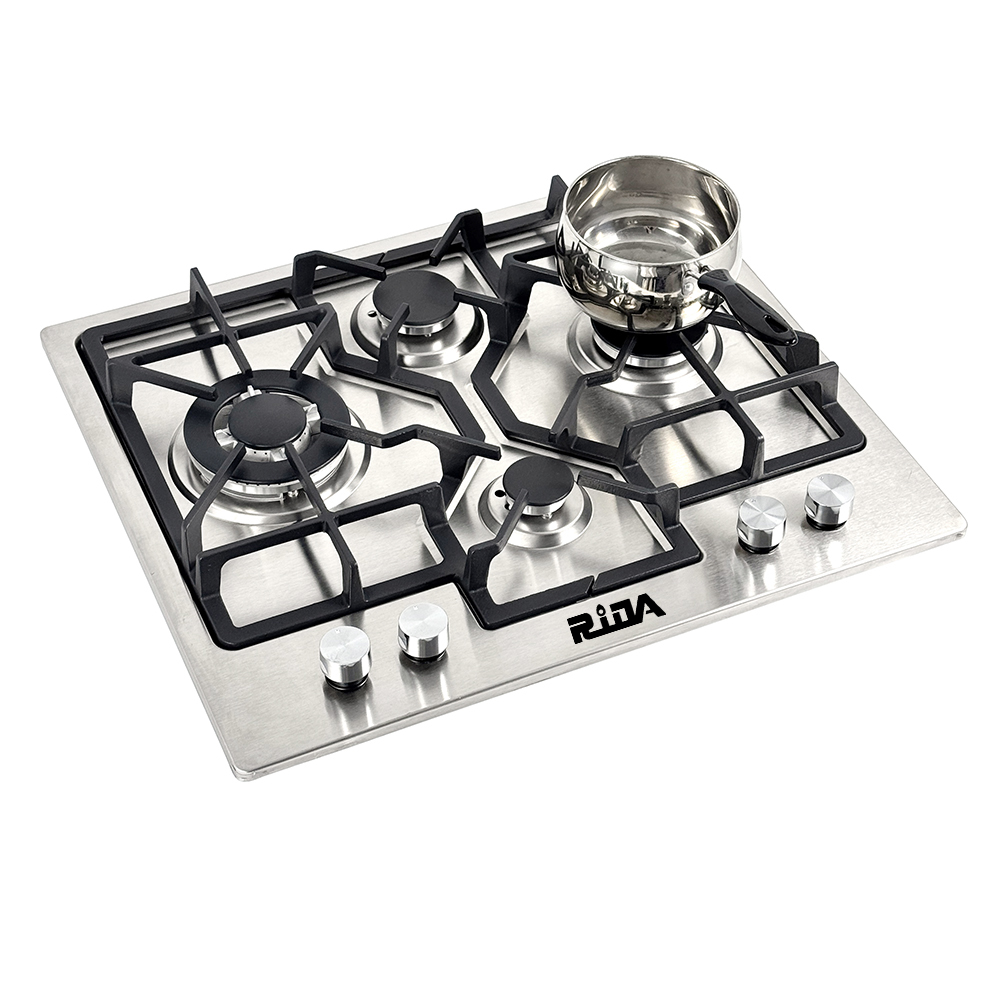

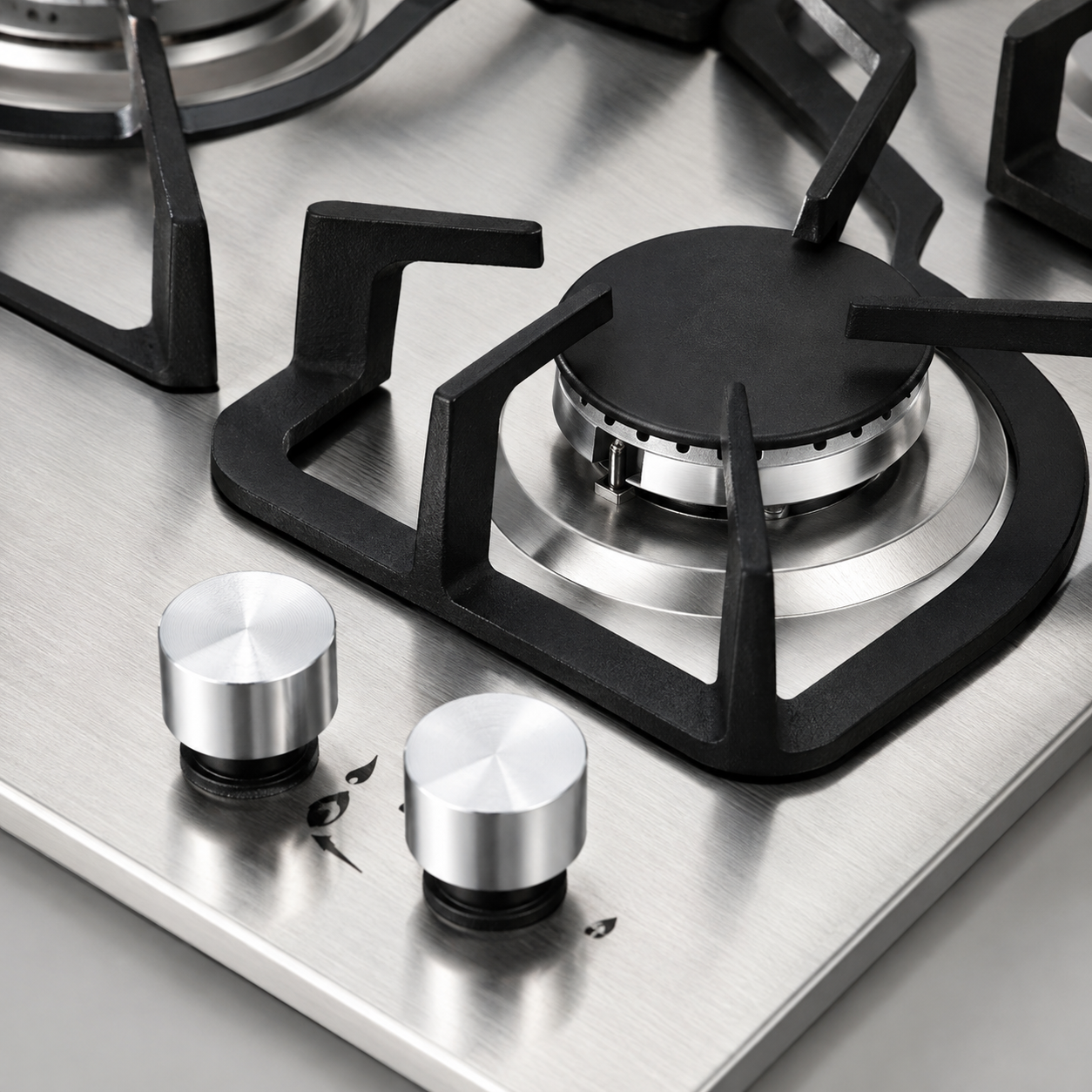

Heavy-duty cast iron pan supports provide stable cookware support during cooking and are suitable for different sizes of pots and pans. The stainless steel surface also allows convenient daily cleaning and maintenance.
The built-in 1.5V pulse ignition system provides fast and convenient burner startup without requiring an electrical power connection.
Four zinc alloy control knobs allow users to independently control each burner and adjust the flame according to different cooking requirements.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS030 | Burner Quantity | 4 Burners |
Panel | Stainless Steel | Panel Size | 600 × 510mm |
Panel Thickness | 0.6mm | Bottom Shell | Galvanized Steel |
Pan Support | Cast Iron | Ignition | 1.5V Pulse Ignition |
Knob | Zinc Alloy | Gas Type | LPG / NG |
Gas Nozzle | Brass | Package Size | 610 × 520 × 100mm |
Brand | RIDAX | OEM/ODM | Available |
Loading Qty | 20GP: Approx. 830 PCS | 40HQ | Approx. 2000 PCS |

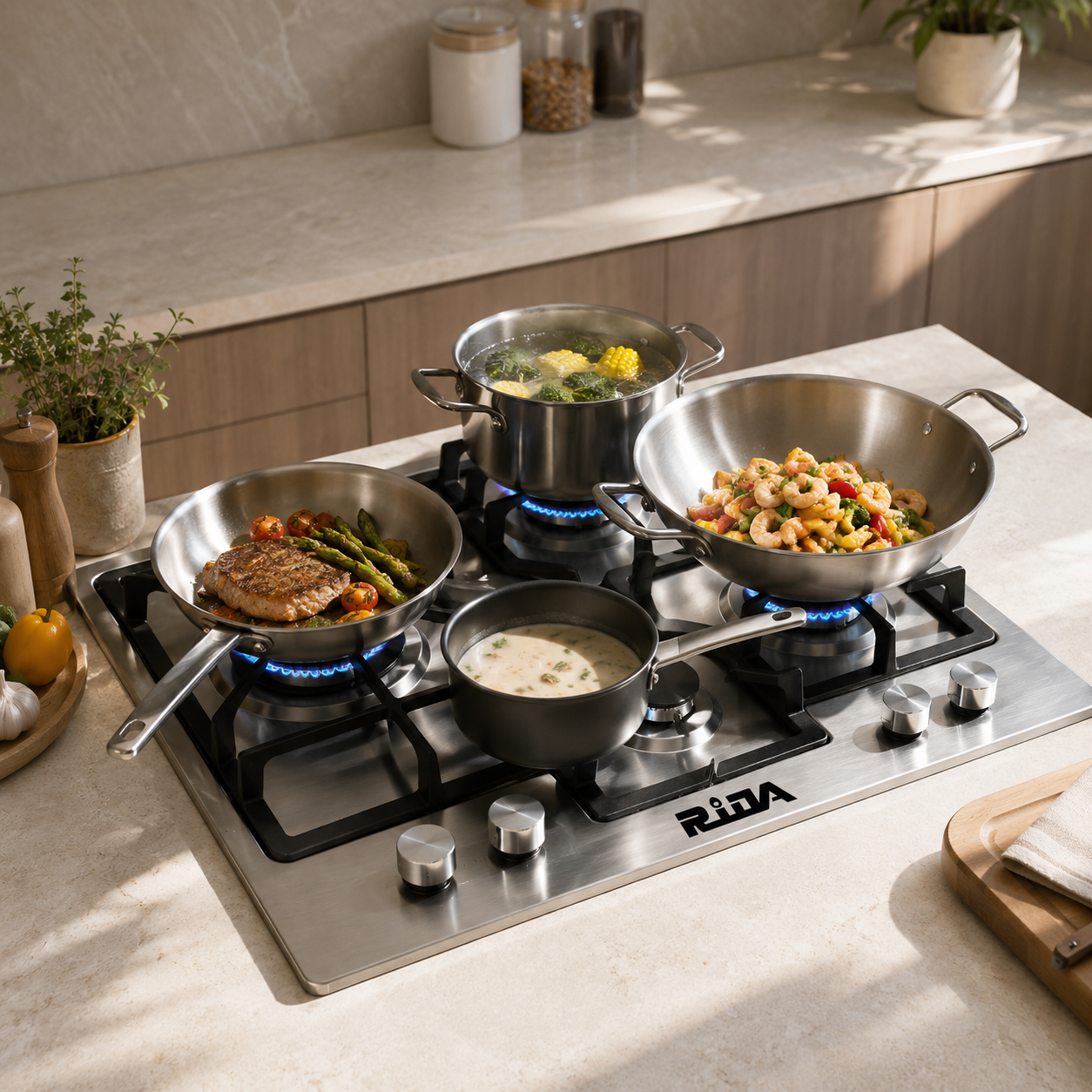

The four-burner configuration provides sufficient cooking capacity for everyday family meals. Multiple burners allow users to boil, fry, simmer, and prepare different dishes at the same time.

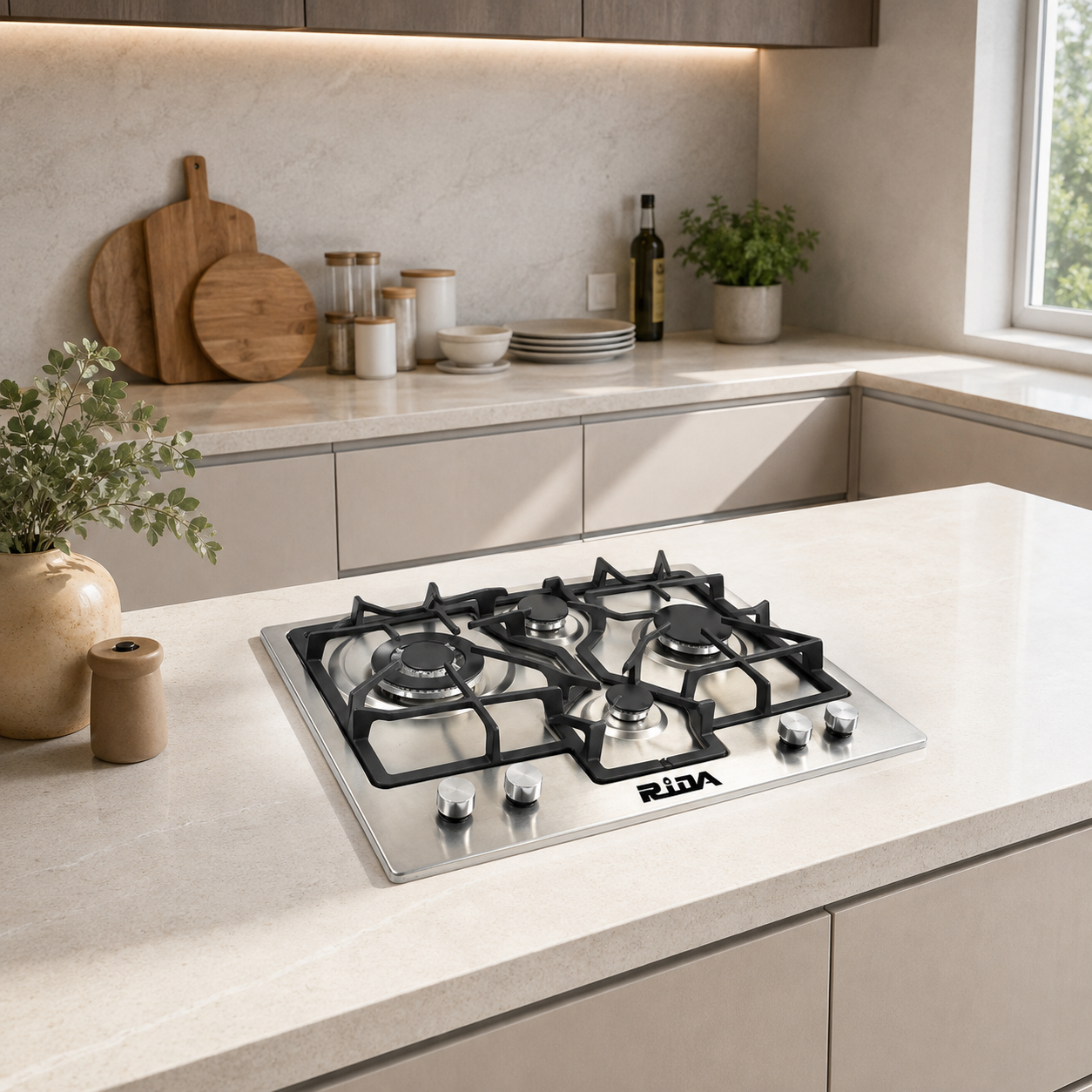

Its built-in design and 600 × 510mm stainless steel panel make the RDX-GHS030 suitable for apartment kitchens, residential developments, and kitchen renovation projects requiring a practical four-burner cooking solution.
The durable stainless steel panel and cast iron pan supports make this model suitable for light commercial environments where stable and convenient daily cooking performance is required.

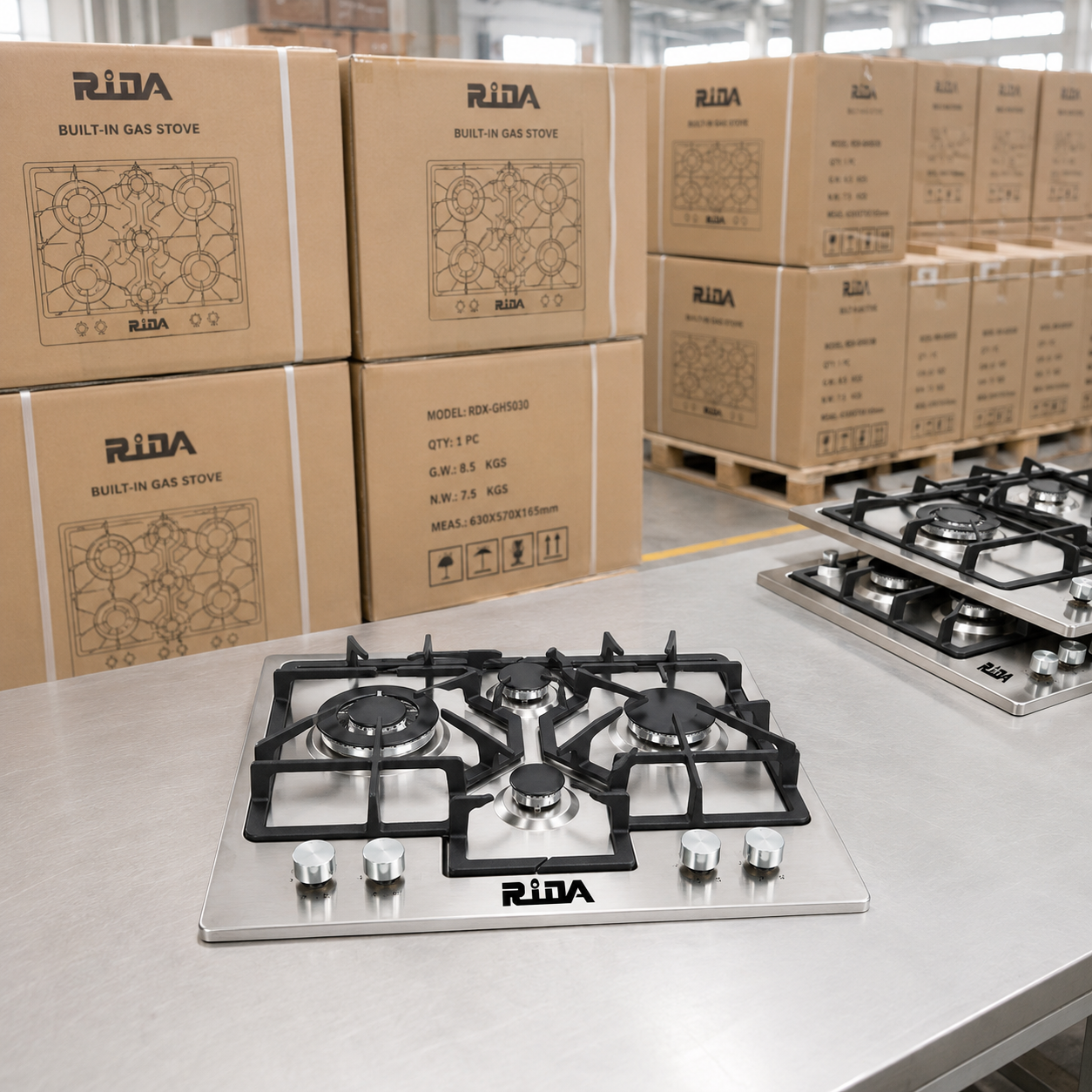

With LPG/NG configuration options and OEM/ODM support, the RDX-GHS030 can be supplied for distributors, wholesalers, kitchen appliance brands, and regional market projects.
Install the gas hob on a suitable, stable countertop according to the required installation dimensions and local gas appliance regulations.
Before use, ensure that the gas connection is secure and configured for the correct gas type. Check all gas connections for leakage using an approved leak-testing method before operating the appliance.
To ignite a burner, press and turn the corresponding control knob to activate the 1.5V pulse ignition system. Adjust the knob to select the required flame level according to the cooking task.
After cooking, turn all control knobs completely to the OFF position and close the main gas supply when necessary. Keep the burner area and pan supports clean to maintain reliable operation.
Installation and gas conversion should be carried out according to local regulations and by qualified personnel where required.
The RDX-GHS030 can be factory-configured for LPG or natural gas (NG) according to the destination market. Buyers should confirm the required gas type before placing an order.
This model uses a 1.5V battery-powered pulse ignition system, providing convenient burner ignition without requiring a mains electricity connection.
The hob features a 600 × 510mm stainless steel panel with approximately 0.6mm thickness, combined with a galvanized steel bottom shell for durable daily use.
The RDX-GHS030 uses heavy-duty cast iron pan supports, providing stable support for different cookware sizes during cooking.
The standard configuration described here does not include flame failure protection. If your market requires additional safety devices, please contact RIDAX to confirm available customization options before ordering.
Yes. RIDAX supports OEM/ODM cooperation for distributors, wholesalers, and kitchen appliance brands. Logo, packaging, gas configuration, and other product details can be discussed according to project requirements.
