RDX-GHS010

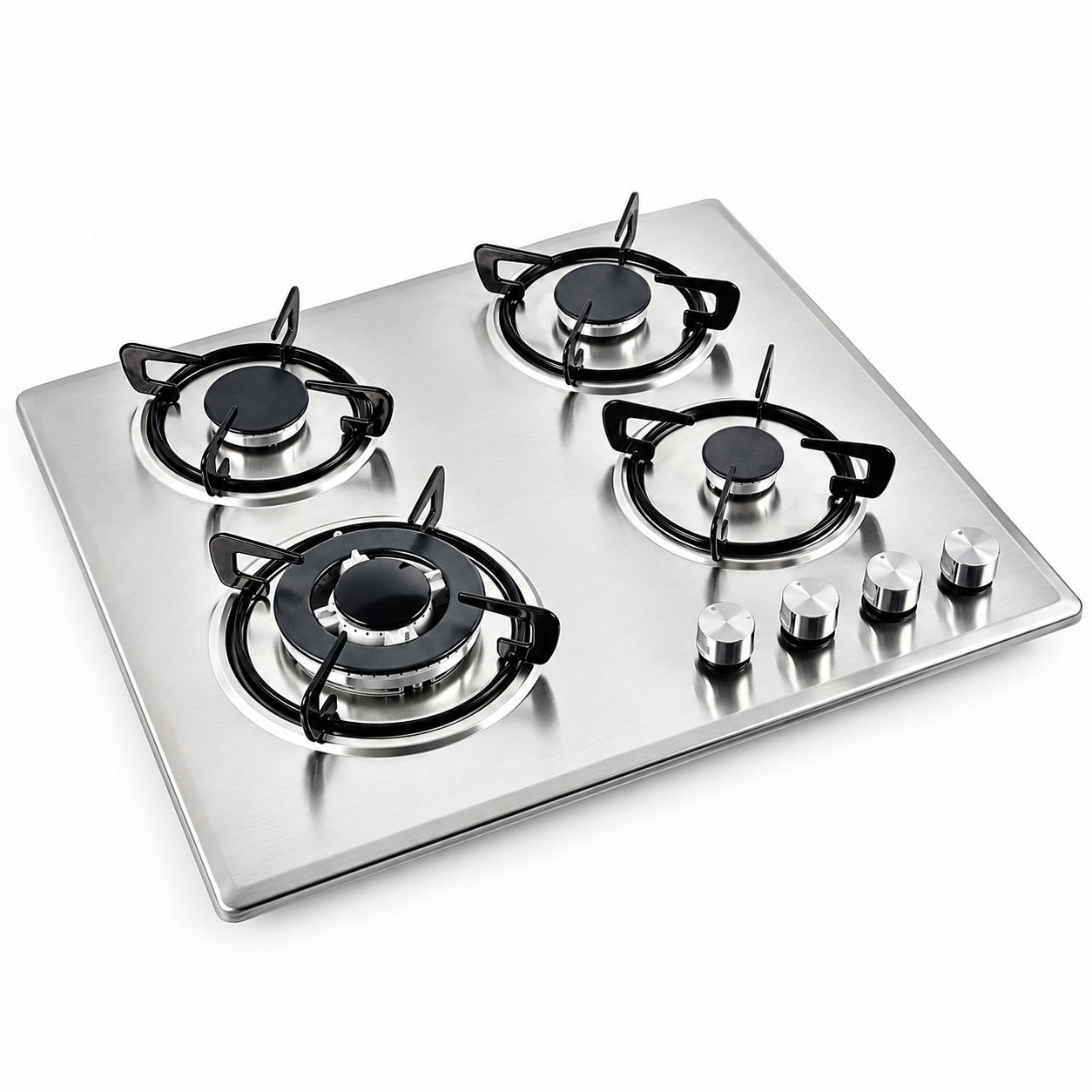

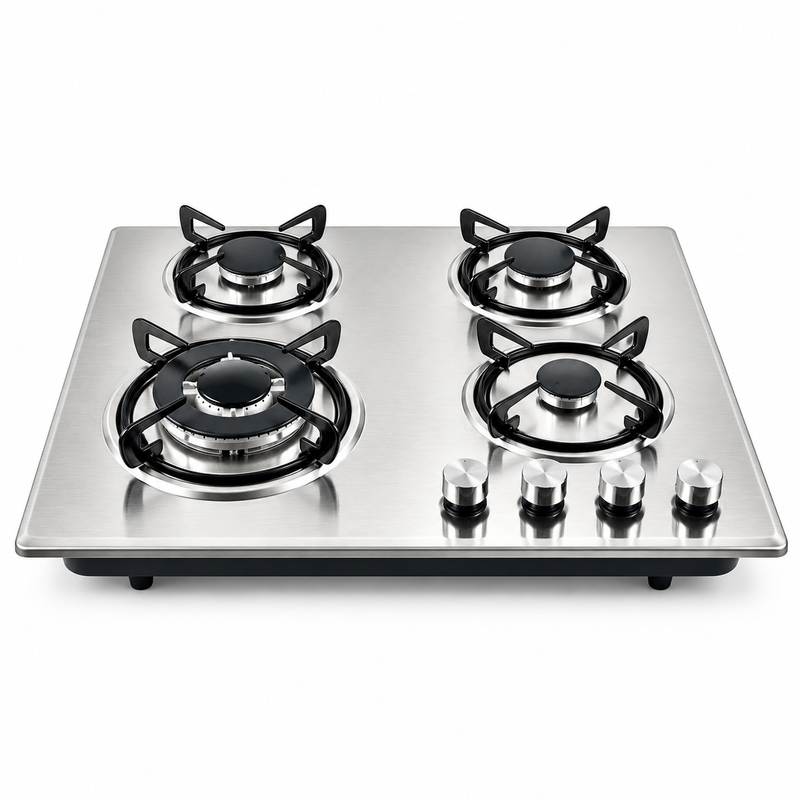

RDX-GHS010 is equipped with four gas burners to support different everyday cooking requirements.

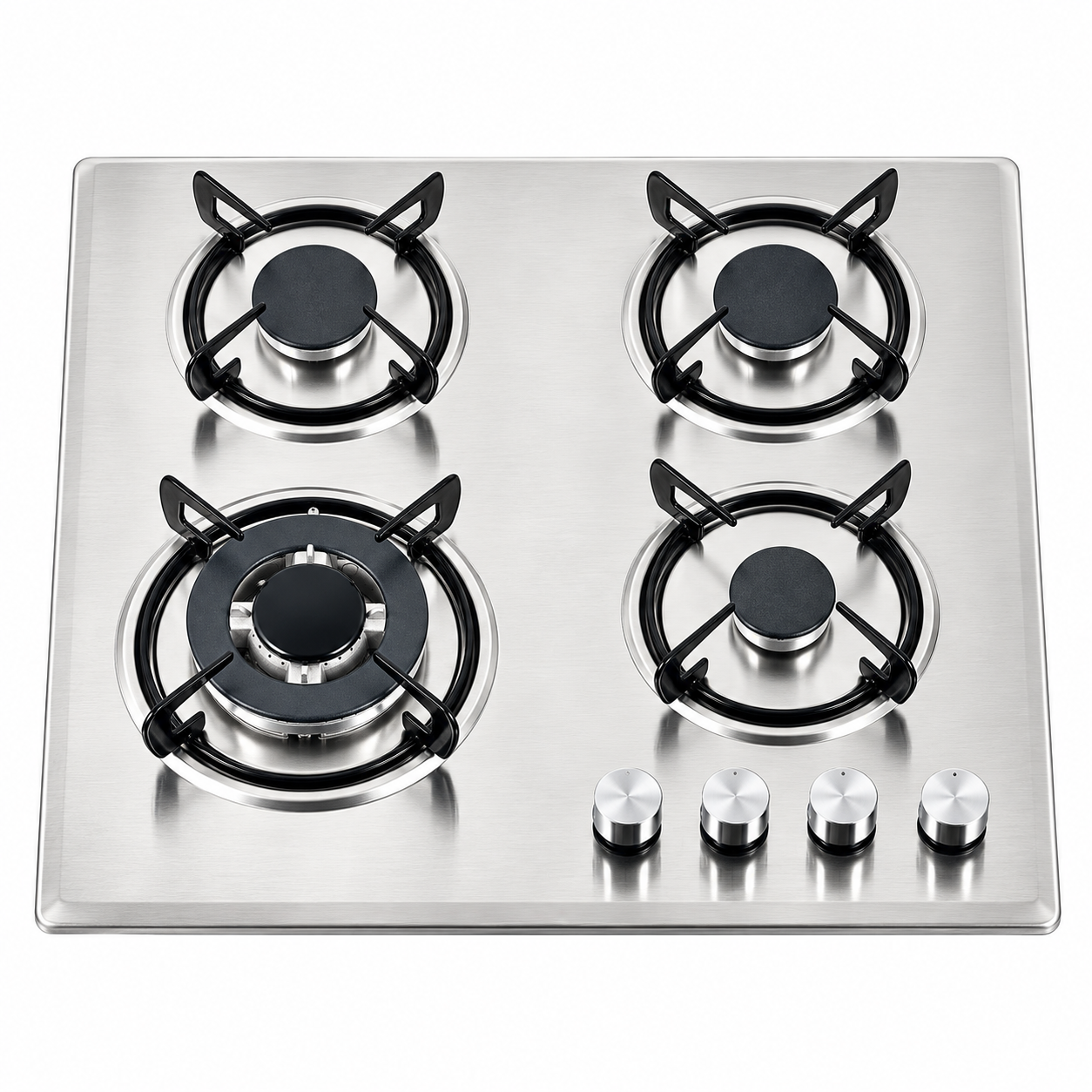

The burner combination includes one large burner, two medium burners and one small burner.
The hob uses a 600 × 510 × 0.6 mm stainless steel panel.
The brushed metallic surface provides a clean and practical appearance for residential kitchens.
Different burner sizes provide flexibility for different cookware and cooking methods.
The large burner is suitable for higher-heat cooking, while the smaller burners support simmering and everyday meal preparation.
RDX-GHS010 is designed for built-in countertop installation.
The integrated structure helps create a clean and streamlined kitchen appearance.
The product is equipped with a pulse ignition system for convenient burner ignition.
The BOM specifies a four-burner pulse ignition configuration.

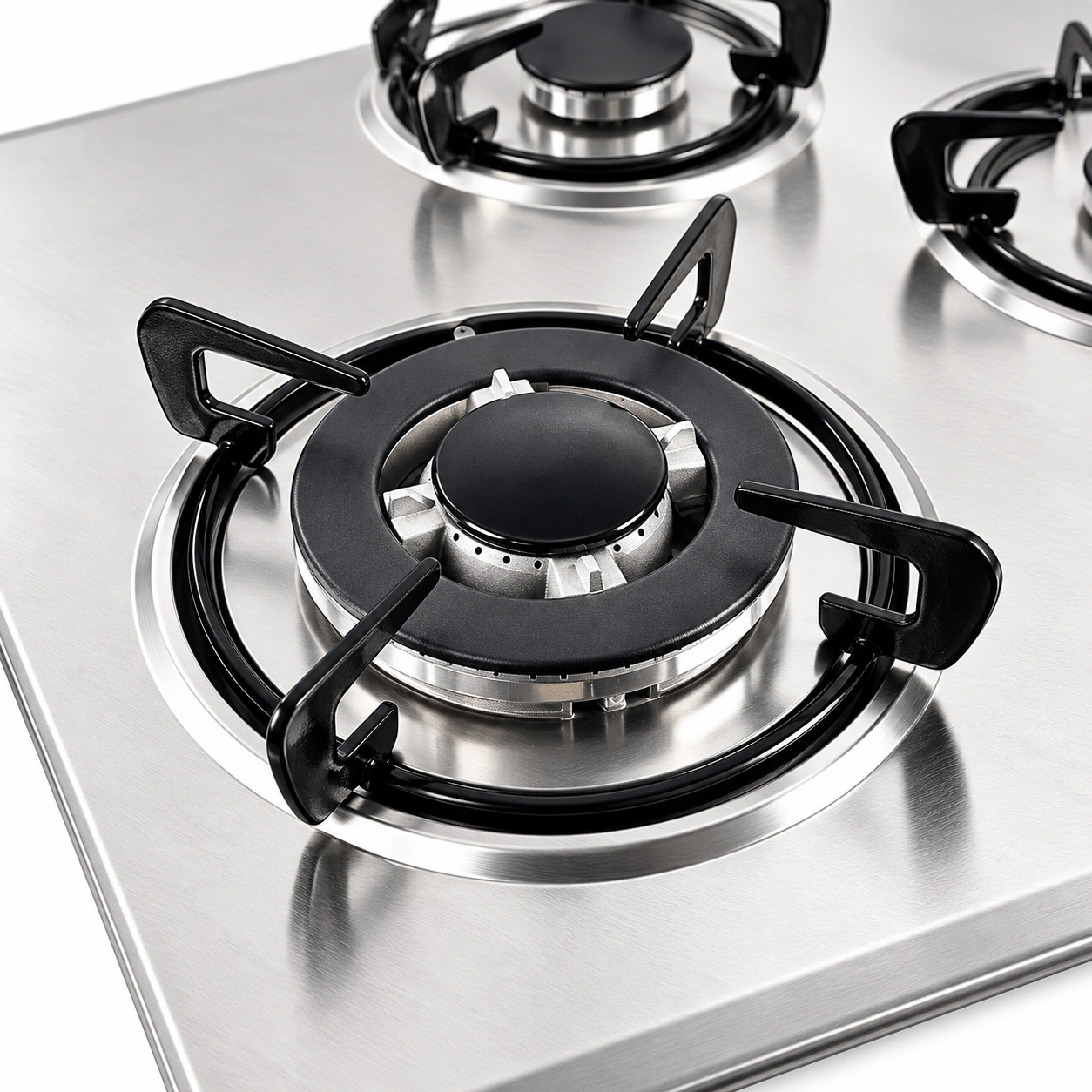

The hob uses enameled round pan supports.
The configuration includes three 153 mm supports and one 183 mm support.

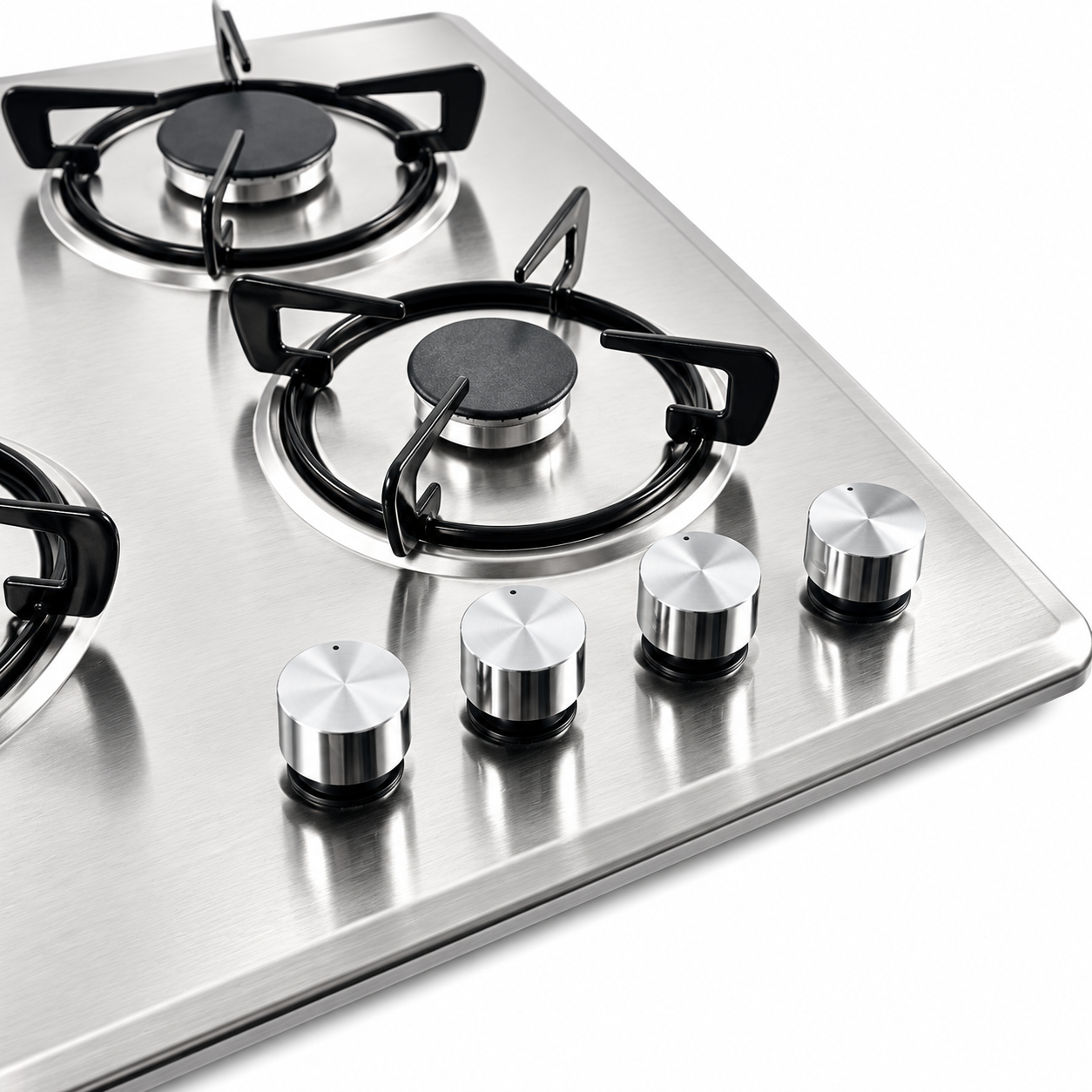

Four electroplated zinc alloy knobs are positioned at the front of the hob.
Each knob independently controls one burner for convenient daily operation.
The current BOM specifies four valve bodies with copper valve cores.
This configuration is designed for practical daily gas control.
The hob includes a four-burner gas pipe system with individual aluminum gas pipes connected to the burner assemblies.
RDX-GHS010 is suitable for appliance distributors, wholesalers and importers.
OEM and ODM services for branding, packaging and selected configurations can be discussed according to confirmed orders.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS010 | Product Type | Built-in Gas Hob |
Burner Quantity | 4 Burners | Installation | Built-in |
Panel Material | Stainless Steel | Panel Size | 600 × 510 × 0.6 mm |
Burner Configuration | 1 Large + 2 Medium + 1 Small | Cooking Type | Gas |
Ignition | Pulse Ignition | Control Knob | Zinc Alloy |
Knob Quantity | 4 | Valve Core | Copper |
Pan Support | Enameled Round Support | Large Support | 183 mm |
Other Supports | 153 mm × 3 | Gas Pipe | 4-Burner Gas Pipe System |
Feet | 25 mm with Screw | Safety Device | Not Included in Standard Configuration |
Packing Size | 610 × 520 × 100 mm | Packing | Carton + Protective Packaging |
Battery | Not Included | Gas Hose | Not Included |
OEM / ODM | Available | Application | Household / Wholesale |
RDX-GHS010 is suitable for everyday residential cooking such as boiling, frying and simmering.
The four-burner configuration allows several dishes to be prepared simultaneously.
Its built-in structure is suitable for apartments and modern residential kitchens.
The stainless steel design makes the hob suitable for housing projects and kitchen installations.
RDX-GHS010 is suitable for appliance wholesalers, importers and regional distributors.
Branding, packaging and selected product configurations can be customized according to confirmed order requirements.
Confirm that the countertop and installation space meet the product requirements before installation.
Place the hob into the prepared countertop opening and ensure it is fixed securely.
Connect the gas supply according to the confirmed product configuration and local installation standards.
Prepare the required ignition power supply according to the confirmed configuration.
Make sure all four control knobs are in the OFF position before ignition.
Choose the appropriate burner according to cookware size and cooking requirements.
Operate the corresponding knob and pulse ignition system according to the supplied instructions.
Adjust the gas flame according to the required cooking task.
Return all controls to the OFF position after use.
Allow the panel, burner parts and pan supports to cool completely before cleaning.
RDX-GHS010 has 4 gas burners.
The configuration includes 1 large burner, 2 medium burners and 1 small burner.
The panel is made of stainless steel.
The panel size is approximately 600 × 510 × 0.6 mm.
The current BOM specifies a pulse ignition system.
The hob uses enameled round pan supports.
The knobs are made of electroplated zinc alloy.
No. The current standard BOM is without flame failure protection.
The carton size is approximately 610 × 520 × 100 mm.
No. According to the current BOM, the standard configuration does not include the battery or gas hose.
Yes. OEM and ODM services are available for distributors, wholesalers and project orders.
