RDX-GHS034

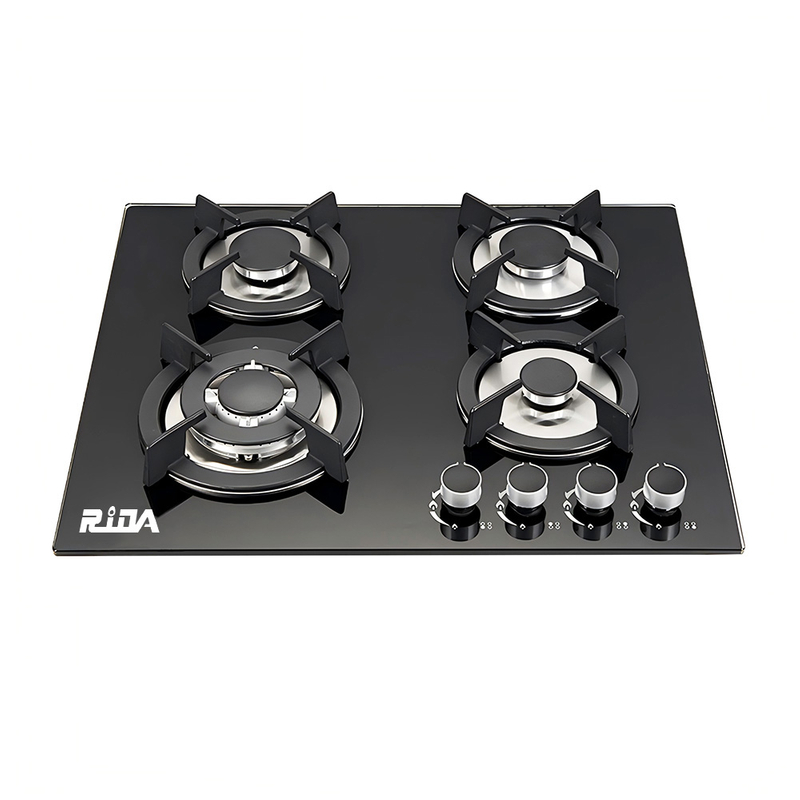

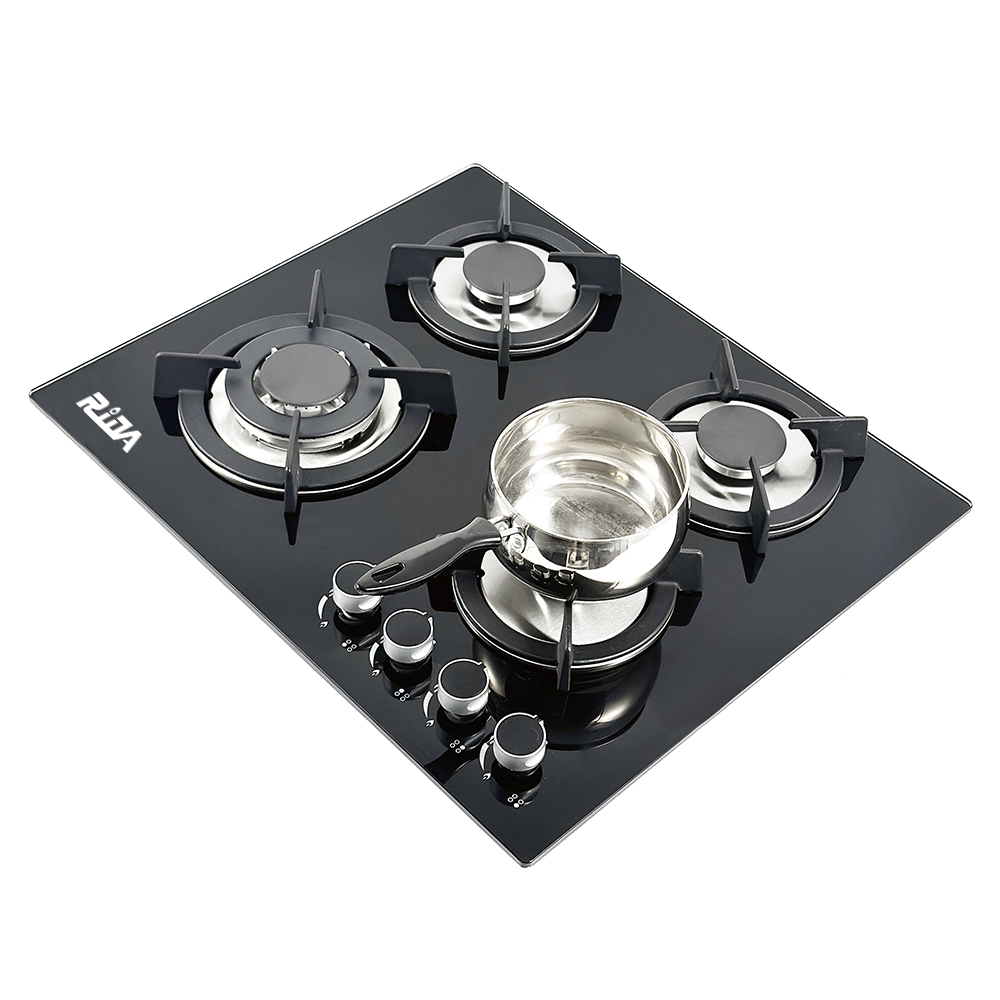

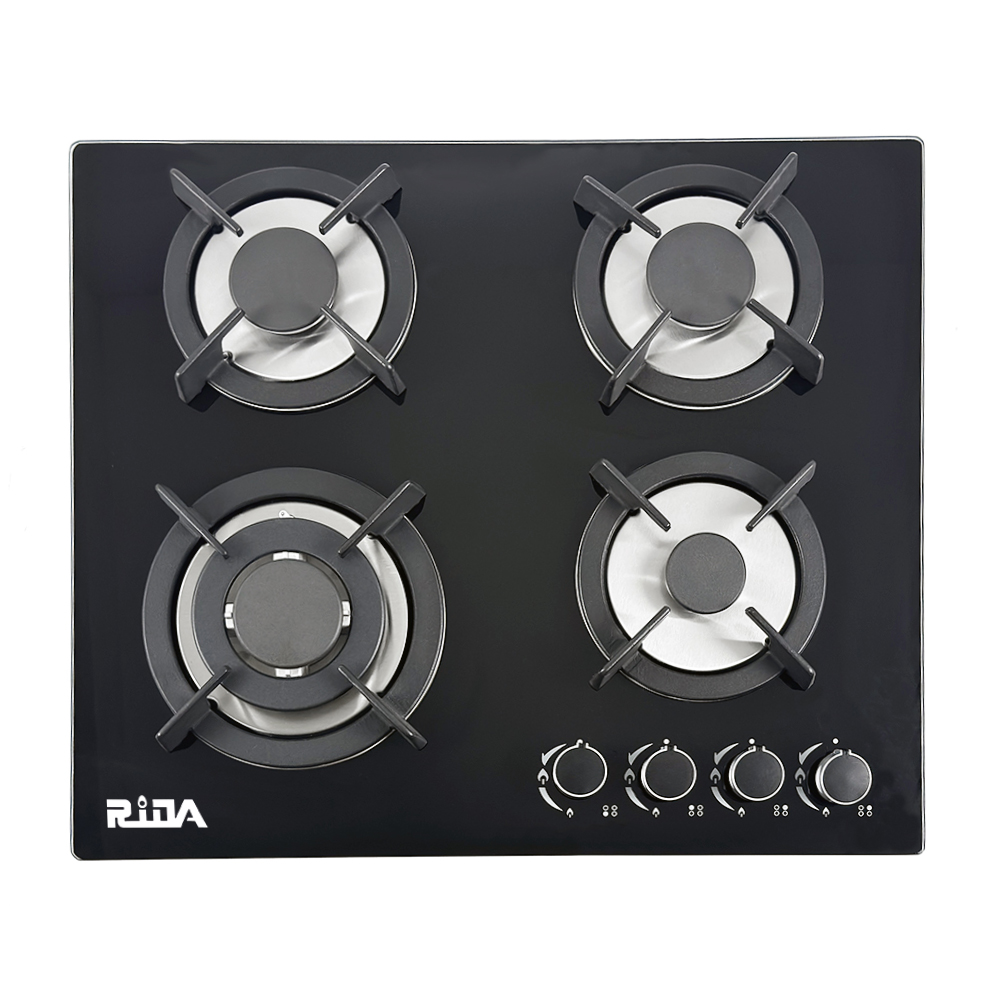

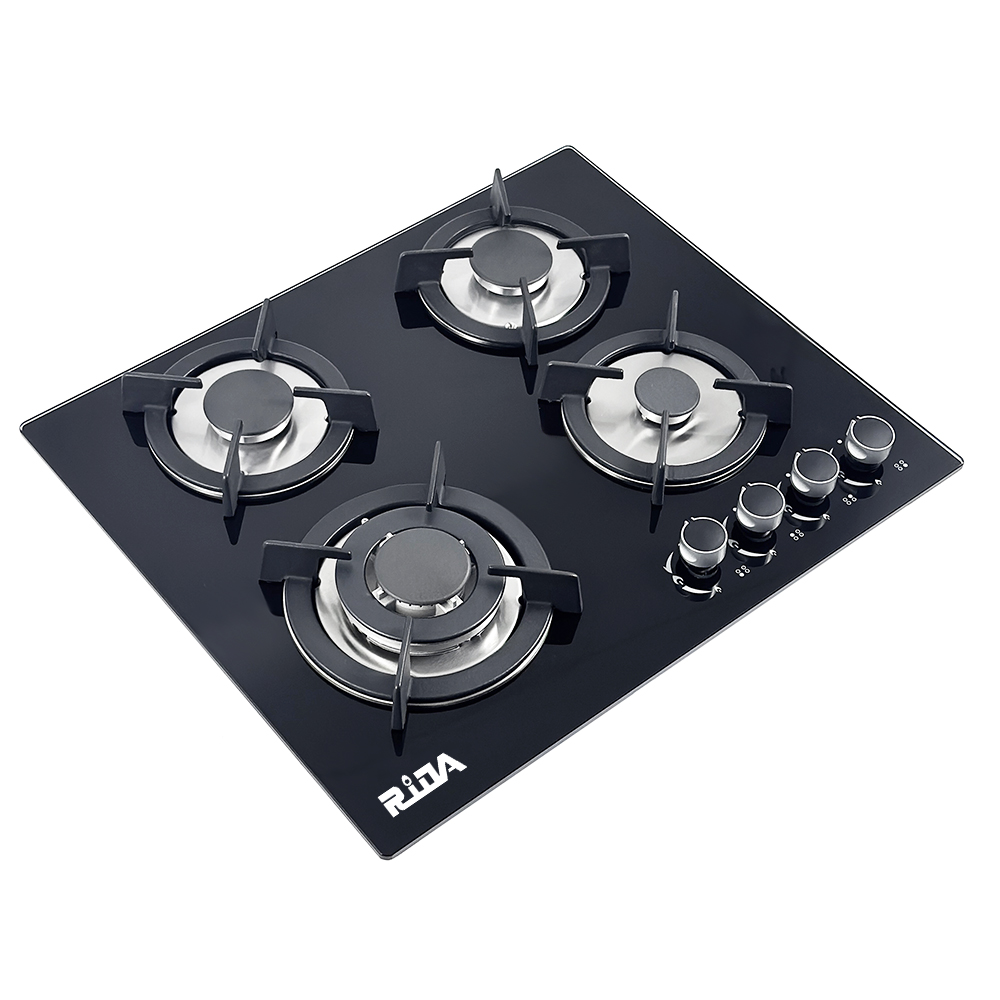

RDX-GHS034 features four gas burners in one built-in hob, providing convenient cooking capacity for frying, boiling, simmering and preparing several dishes at the same time.
The product uses a 600 × 510 × 8mm black tempered glass panel.
The glossy black surface gives the hob a modern appearance and is convenient for everyday wiping and maintenance.
Each burner is equipped with a sturdy cast iron pan support.
The standard configuration includes three smaller cast iron supports of approximately 700g and one larger support of approximately 800g.
The burner areas use stainless steel water trays, helping organize the cooking zones and making routine maintenance more convenient.
RDX-GHS034 uses a 220V four-burner pulse ignition system.
The standard configuration is supplied with a 1.5m UK power cable and UK plug, making it suitable for markets using this electrical connection.
Four individual galvanized metal-style knobs allow each burner to be operated independently.
Users can adjust each cooking zone separately according to different cooking requirements.

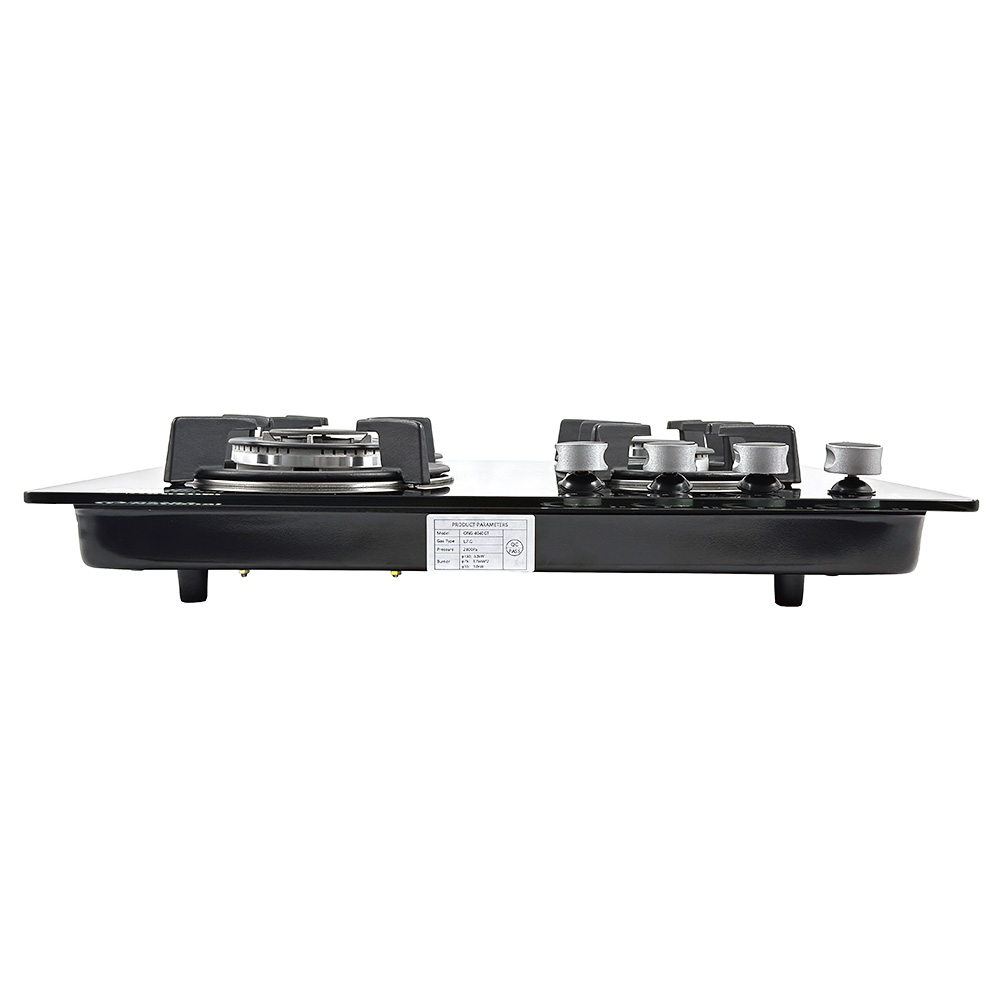

The hob uses a galvanized metal bottom housing, providing a practical internal structure for built-in installation and protecting the internal gas and ignition components.
The compact built-in structure allows the hob to integrate neatly into the countertop, creating a clean and organized kitchen appearance.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GHS034 | Product Type | Built-in Gas Hob |
Burner Quantity | 4 Burners | Panel | Black Tempered Glass |
Panel Size | 600 × 510 × 8mm | Bottom Housing | Galvanized Metal |
Burner System | SABAF-Type Gas Hob Burner | Ignition | 220V Pulse Ignition |
Power Cable | 1.5m UK Cable | Plug Type | UK Plug |
Pan Support | Cast Iron | Water Tray | Stainless Steel |
Knob | Galvanized Round Knob | Gas Pipe | L-Shaped Iron Gas Pipe |
Internal Pipe | Ø8 Aluminum Gas Pipe | Installation | Built-in |
Carton Size | 630 × 545 × 175mm | Packing | Full Foam Protection |
20GP Loading | Approx. 475 PCS | 40HQ Loading | Approx. 1150 PCS |
Flame Failure Device | Not Included | OEM/ODM | Available |
The four-burner layout is suitable for everyday family cooking and allows several dishes to be prepared at the same time.
The different burner structures make the hob suitable for boiling, frying, simmering and other daily cooking tasks.
The black tempered glass surface and integrated installation make the model suitable for contemporary residential kitchen designs.
Its practical 600mm-class size makes it suitable for apartments, housing projects and modern kitchen installations.
RDX-GHS034 is suitable for appliance importers, wholesalers, distributors and private-label customers looking for a 4 burner glass built-in gas hob.
Install the gas hob securely into a suitable countertop according to installation requirements.
Connect the gas supply and 220V electrical connection correctly before use.
Turn the corresponding control knob to activate the pulse ignition.
Adjust the flame according to the cookware and cooking requirement.
After cooking, turn all control knobs completely to the OFF position.
Allow the hob to cool before cleaning the tempered glass panel, burner components, water trays and cast iron pan supports.
The RDX-GHS034 features four independent gas burners.
The hob uses a 600 × 510 × 8mm black tempered glass panel.
The standard configuration uses cast iron pan supports.
It uses a 220V four-burner pulse ignition system.
The standard BOM lists a 1.5m UK power cable with UK plug.
No. The current BOM specifically states that this configuration is without flame failure protection.
The standard carton size is approximately 630 × 545 × 175mm.
The BOM lists approximately 475 PCS per 20GP and 1150 PCS per 40HQ.
Yes. OEM/ODM service is available for importers, distributors, wholesalers and appliance brands.
