RDX-GV06

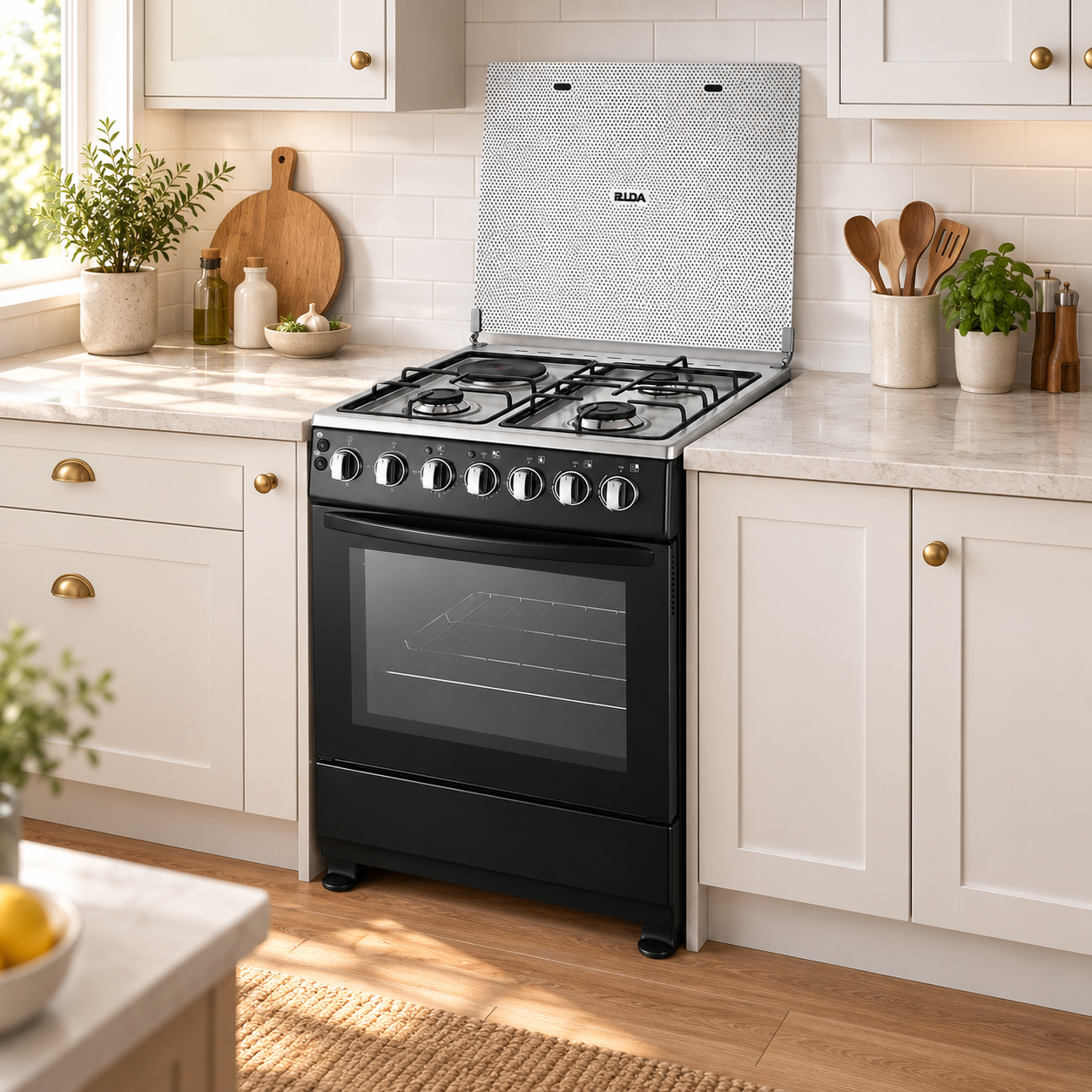

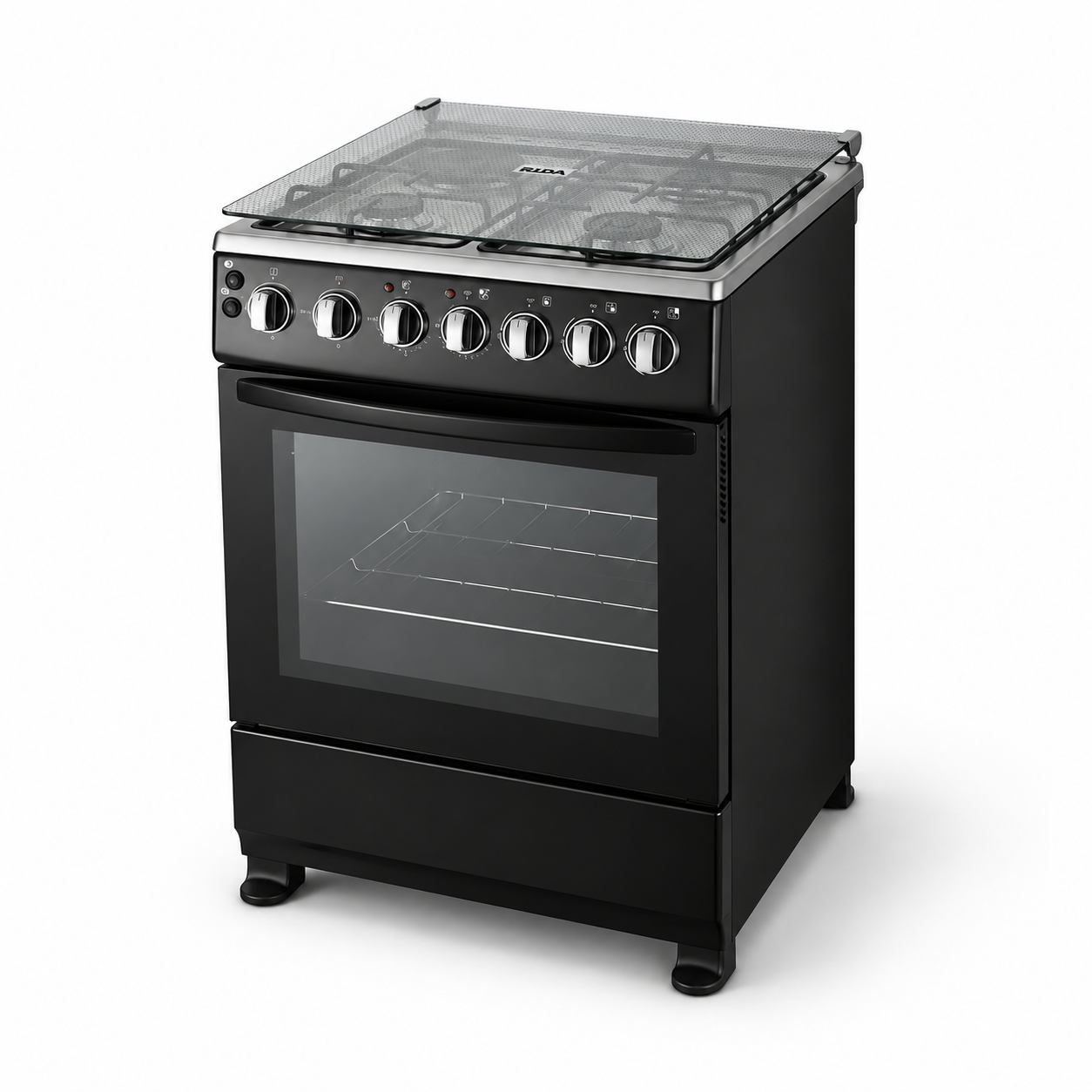

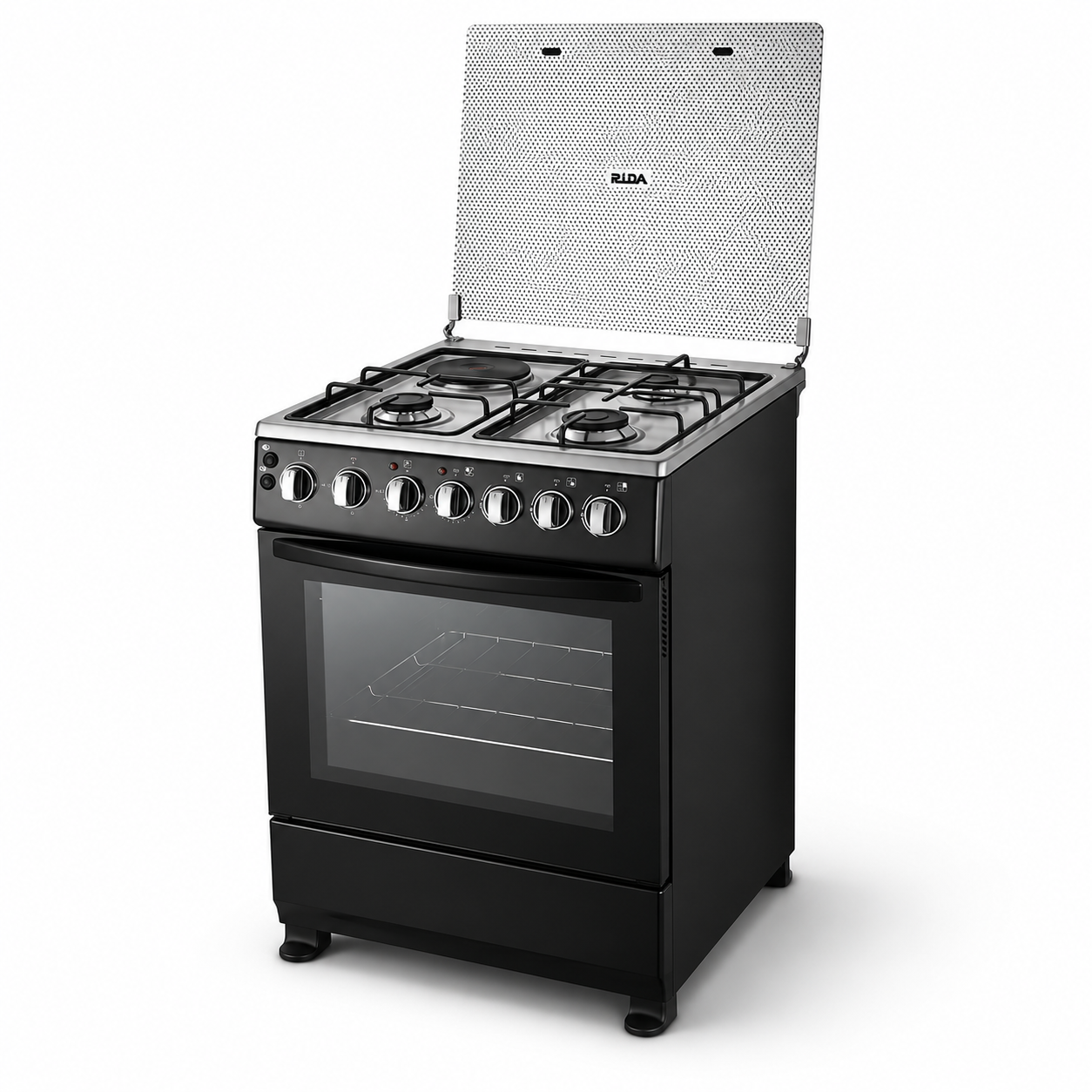

The RDX-GV06 is designed as a compact 24 inch freestanding cooker with overall dimensions of 600 × 500 × 860 mm.
Its space-efficient structure makes it suitable for household kitchens, apartments and other residential cooking spaces.

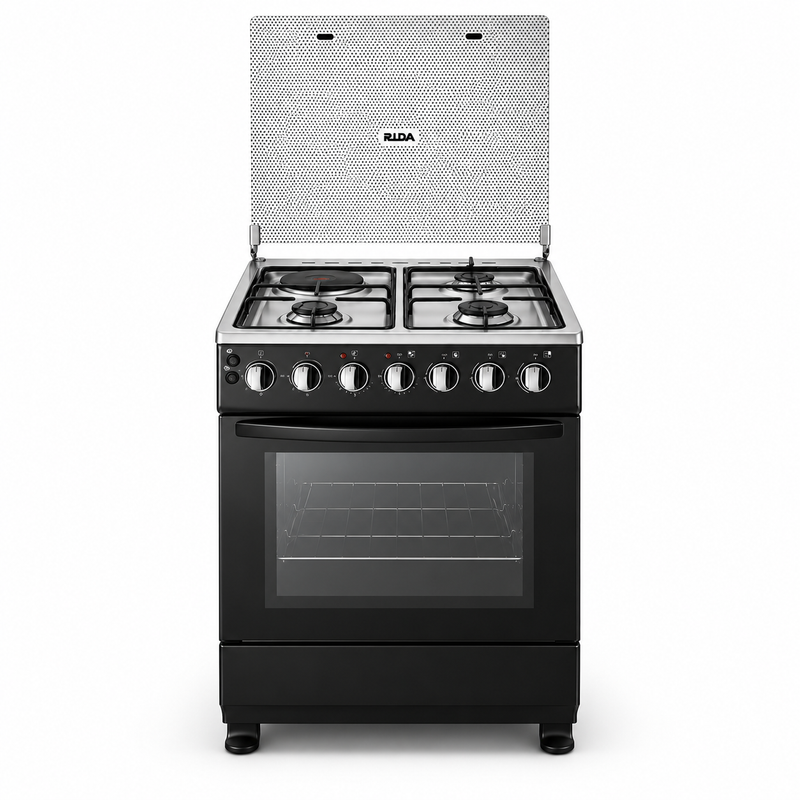

The cooker is equipped with three gas burners in different sizes.
The combination includes one large burner, one medium burner and one small burner, allowing users to choose different heat levels according to the cooking task.
In addition to the three gas burners, RDX-GV06 includes one electric hotplate.
The mixed gas and electric cooking configuration provides greater flexibility when preparing different dishes.
The lower oven provides an 88L internal capacity and 2.0KW oven power.
It is suitable for baking, roasting and other common household oven cooking applications.
The cooking surface uses a stainless steel tabletop plate.
Its metallic surface provides a clean appearance and is convenient for routine wiping and maintenance after cooking.
The burner configuration includes different burner sizes and heat outputs:
Big Burner: 1.4KW / 85 mm
Middle Burner: 1.2KW / 70 mm
Small Burner: 0.9KW / 55 mm
This configuration provides practical heating options for different cookware and cooking methods.
The standard configuration uses manual ignition.
Its straightforward operating structure is suitable for markets that prefer simple and practical cooker designs.
RDX-GV06 can be configured for LPG or NG according to customer and market requirements.
The specified gas pressure for the current configuration is 2.8kPa.
A safety device is available as an optional configuration.
Customers can select the appropriate safety configuration according to their target market and order requirements.
RDX-GV06 is suitable for distributors, wholesalers and appliance-brand projects.
OEM and ODM services can include logo, packaging and selected product configuration customization according to confirmed order requirements.

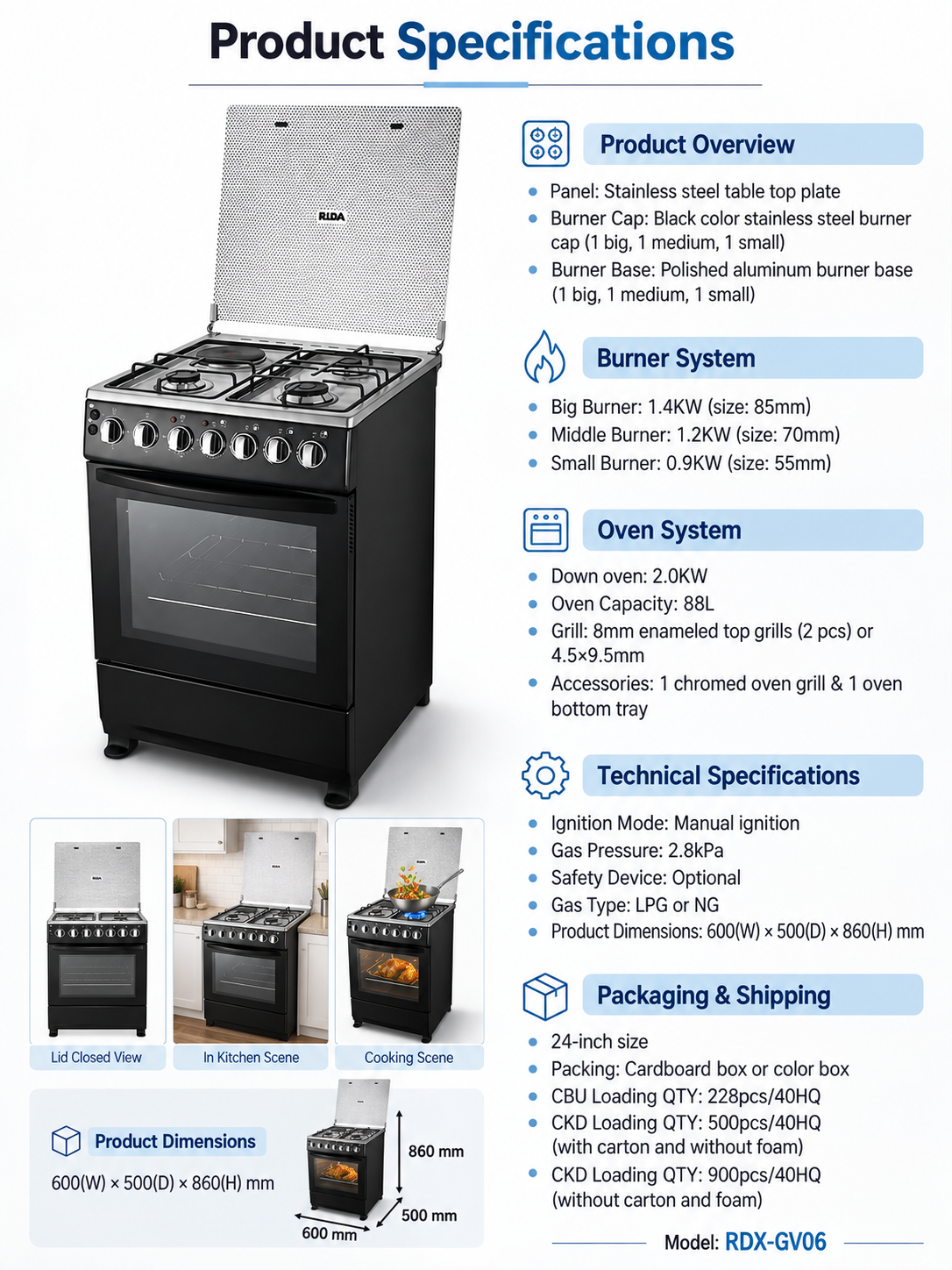

Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GV06 | Product Type | Freestanding Cooker |
Product Size | 600 × 500 × 860 mm | Size | 24 Inch |
Gas Burner Quantity | 3 Burners | Electric Hotplate | 1 |
Gas Burner Layout | 1 Big + 1 Medium + 1 Small | Installation | Freestanding |
Top Panel | Stainless Steel Tabletop Plate | Gas Type | LPG / NG |
Big Burner | 1.4KW / 85 mm | Middle Burner | 1.2KW / 70 mm |
Small Burner | 0.9KW / 55 mm | Burner Base | Polished Aluminum |
Burner Cap | Black Stainless Steel | Ignition | Manual Ignition |
Gas Pressure | 2.8kPa | Safety Device | Optional |
Oven Capacity | 88L | Oven Power | 2.0KW |
Oven Position | Down Oven | Oven Grill | 1 Chromed Oven Grill |
Oven Tray | 1 Oven Bottom Tray | Packing | Cardboard Box / Color Box |
CBU Loading | 228 PCS / 40HQ | OEM / ODM | Available |

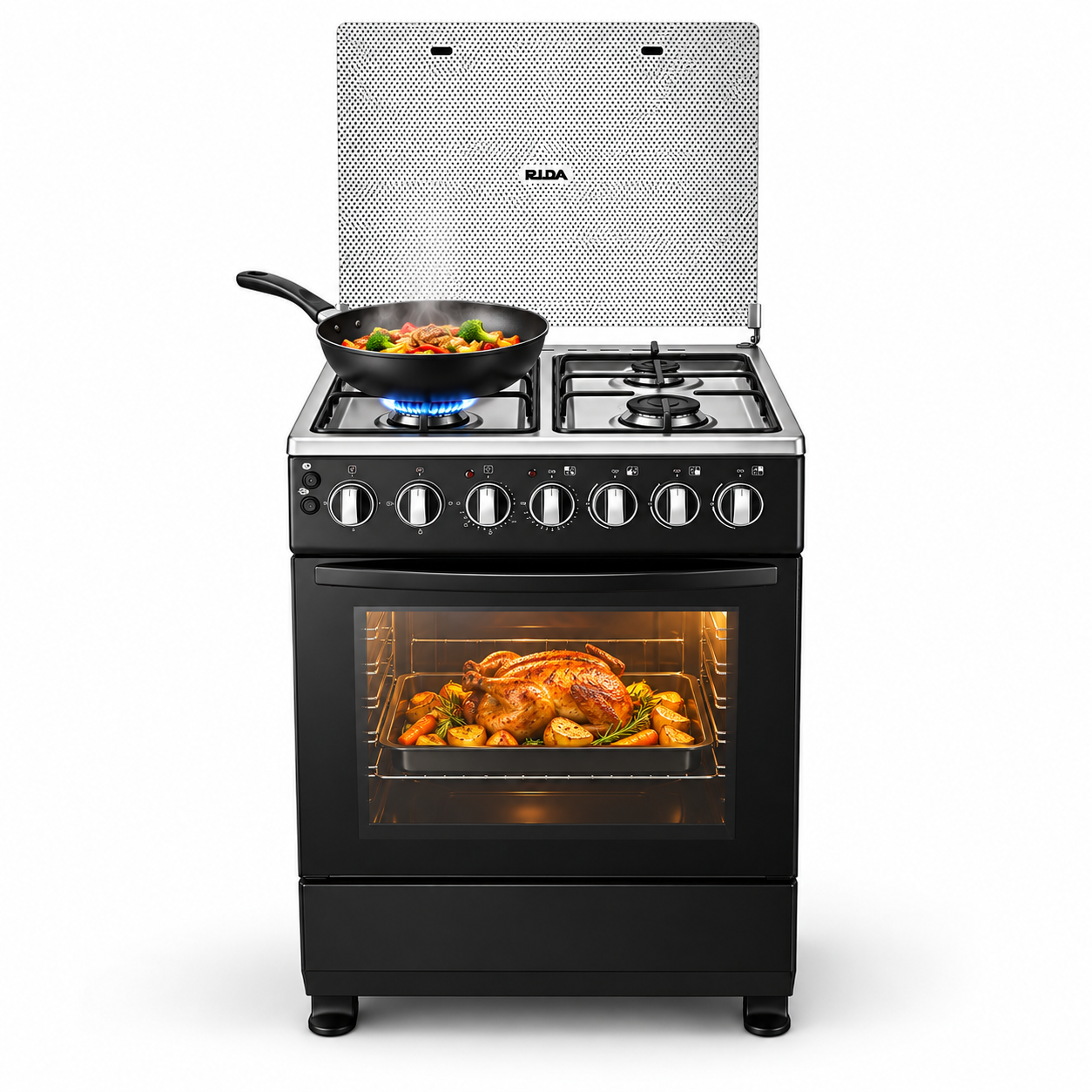

The combination of three gas burners, one electric hotplate and an 88L oven makes RDX-GV06 suitable for everyday household meal preparation.
Its compact 600 mm width makes the cooker suitable for apartments and kitchens where available floor space is limited.
The gas burners can handle common boiling, frying and simmering tasks, while the electric hotplate provides an additional cooking option.
The 88L oven provides enough internal capacity for common household baking and roasting applications.
The practical 24 inch configuration makes RDX-GV06 suitable for appliance distributors, wholesalers and regional sourcing projects.
Place the cooker on a stable, level floor with sufficient ventilation and suitable clearance around the appliance.
Before installation, confirm whether the cooker has been configured for LPG or NG according to the order requirement.
Make sure all burner, hotplate and oven controls are in the OFF position before operation.
Use the corresponding control knob and manual ignition method to ignite the selected gas burner.
Adjust the burner control according to cookware size and the required cooking heat.
Operate the corresponding hotplate control when electric cooking is required.
Set the oven control according to the required baking or roasting application.
Return all controls to the OFF position after use and close the gas supply when required.
Allow the cooker to cool completely before cleaning the stainless steel tabletop, burners, hotplate and oven surfaces.
The RDX-GV06 has three gas burners: one large, one medium and one small burner.
Yes. It includes one electric hotplate in addition to the three gas burners.
The oven capacity is 88L.
The current specification lists the oven power as 2.0KW.

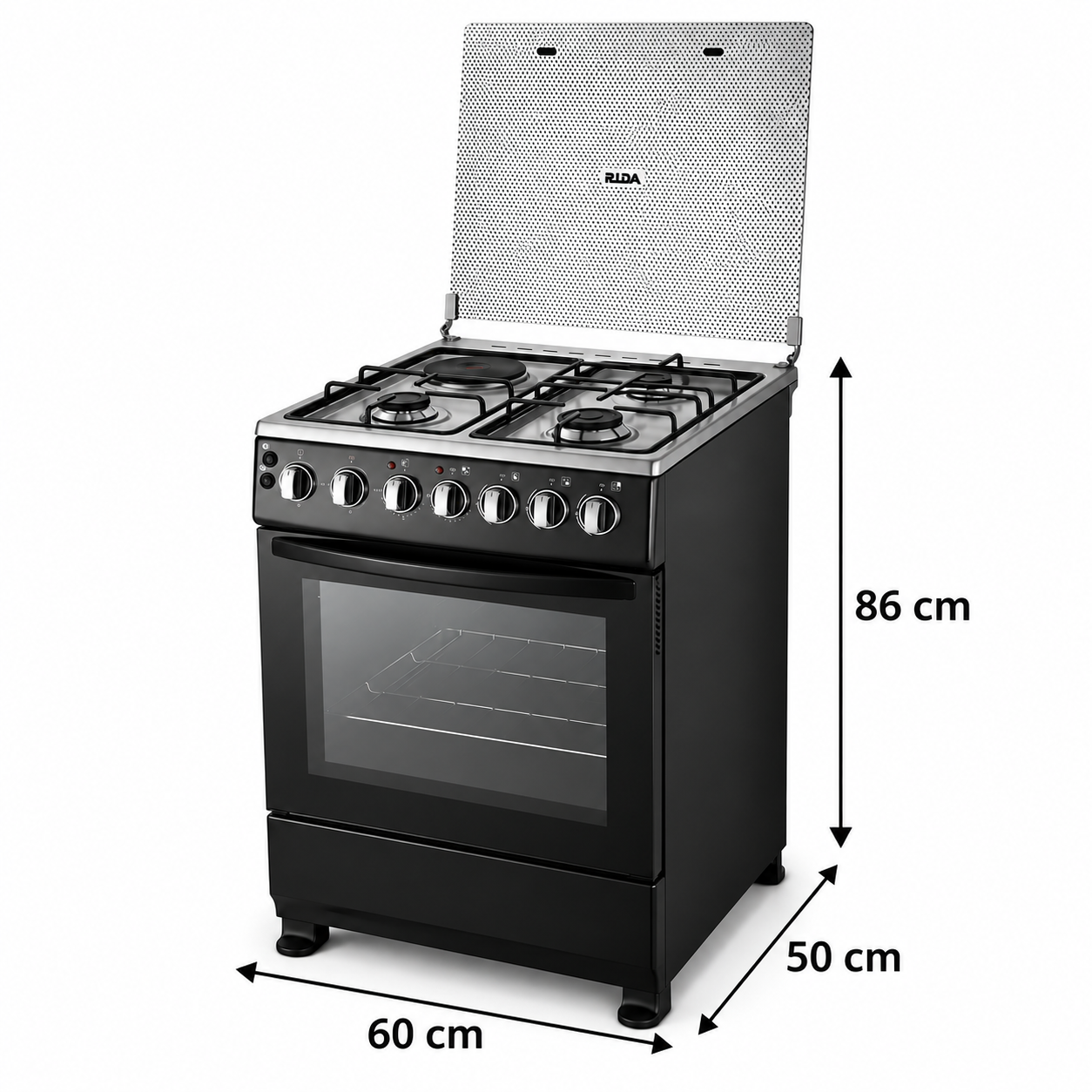

The product dimensions are 600 × 500 × 860 mm.
The large burner is 1.4KW, the medium burner is 1.2KW, and the small burner is 0.9KW.
The standard configuration uses manual ignition.
Yes. The model is available for LPG or NG according to order requirements.
The safety device is listed as optional.
The current specification includes 1 chromed oven grill and 1 oven bottom tray.
The listed CBU loading quantity is approximately 228 PCS / 40HQ.
Yes. OEM and ODM services are available for distributors, wholesalers and appliance brands.
