RDX-GV05

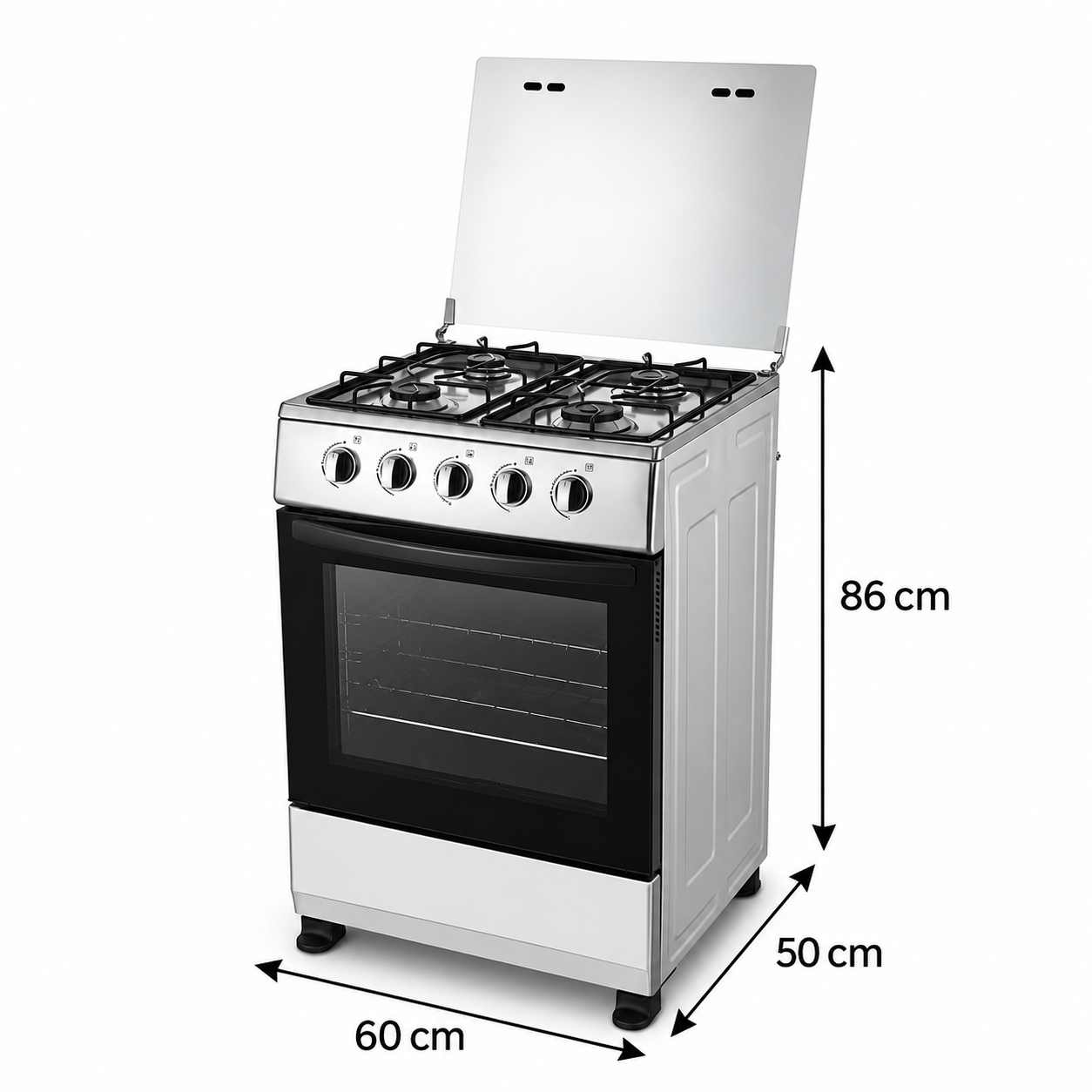

RDX-GV05 features a freestanding structure with dimensions of approximately 600 × 500 × 860 mm.
Its 24 inch size provides useful cooking and oven capacity while remaining suitable for a wide range of household kitchen layouts.
The cooktop is equipped with four gas burners for preparing several dishes at the same time.
The burner arrangement supports different cookware sizes and common household cooking requirements.
The current burner configuration includes one large burner, two medium burners and one small burner.
This combination provides greater flexibility for high-heat cooking, everyday boiling and lower-heat simmering.
The cooking surface uses a stainless steel tabletop plate.
Its metallic finish provides a clean appearance and complements the silver body of the freestanding cooker.
RDX-GV05 includes an integrated 88L oven.
The larger oven space is suitable for baking, roasting and reheating family-sized meals.
The current configuration uses manual ignition.
Its straightforward operating structure is suitable for markets that prefer practical and simple gas cooker configurations.
Five control knobs are positioned across the front panel for convenient operation.
The clear control layout makes the cooktop and oven easy to operate during everyday cooking.
The oven door features a large glass viewing area.
Users can monitor food during baking or roasting without frequently opening the oven door.
RDX-GV05 can be configured for LPG or NG according to confirmed order requirements.
This makes the model adaptable to different regional gas supply conditions.
RDX-GV05 is suitable for distributors, wholesalers, importers and appliance sourcing projects.
OEM and ODM services can include branding, packaging and selected configuration customization according to confirmed orders.

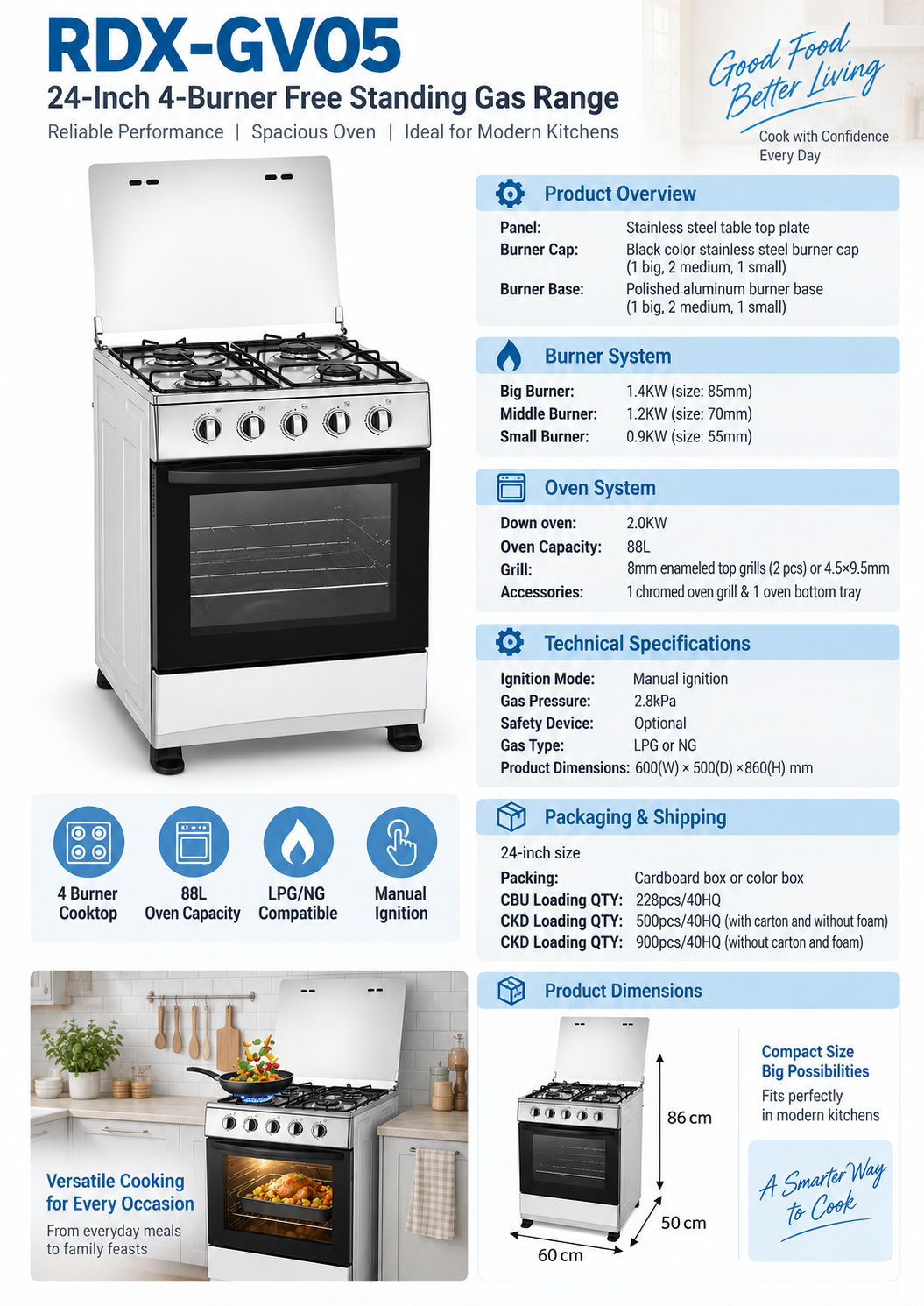

Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GV05 | Product Type | Freestanding Gas Range |
Size | 24 Inch | Burner Quantity | 4 Gas Burners |
Big Burner | 1.4KW / 85mm | Medium Burner | 1.2KW / 70mm |
Small Burner | 0.9KW / 55mm | Oven Capacity | 88L |
Oven Power | 2.0KW | Ignition Mode | Manual Ignition |
Gas Pressure | 2.8kPa | Gas Type | LPG or NG |
Product Width | 600 mm | Product Depth | 500 mm |
Product Height | 860 mm | Tabletop Plate | Stainless Steel |
Burner Cap | Black Stainless Steel Burner Cap | Burner Base | Polished Aluminum |
Oven Accessories | 1 Chromed Oven Grill + 1 Bottom Tray | Safety Device | Optional |
Installation | Freestanding | OEM / ODM | Available |
Packing | Cardboard Box or Color Box | Application | Household / Wholesale |
RDX-GV05 combines four gas burners and a large oven in one freestanding appliance for practical everyday household cooking.
The 88L oven provides additional capacity for preparing larger meals and supports common baking and roasting applications.
Four gas burners allow different pots and pans to be used simultaneously, helping improve cooking efficiency.
The integrated oven is suitable for everyday baking, roasting and reheating requirements.
The freestanding design makes RDX-GV05 suitable for apartments, rental homes and residential appliance projects.
The model is suitable for wholesalers, distributors and importers looking for a practical 24 inch freestanding gas range.
Place the gas range on a stable and level floor with sufficient ventilation and suitable clearance around the appliance.
Before installation, confirm whether the cooker is configured for LPG or NG according to the order specification.
Make sure the gas connection is installed correctly and checked according to local installation requirements.
Before ignition, ensure all control knobs are in the OFF position.
Use the manual ignition method to ignite the required gas burner.
Turn the corresponding knob to adjust the flame according to cookware size and cooking requirements.
Use the oven control according to the required baking, roasting or reheating task.
Check food through the oven viewing window during operation.
Return all controls to the OFF position after cooking and close the gas supply when required.
Allow the appliance to cool completely before cleaning the cooktop, burners, pan supports, control panel and oven interior.
RDX-GV05 is equipped with 4 gas burners.
It is a 24 inch freestanding gas range.
The oven capacity is 88L.
The product dimensions are approximately 600 × 500 × 860 mm.
The configuration includes 1 large burner, 2 medium burners and 1 small burner.
The current configuration uses manual ignition.
Yes. The cooker can be configured for LPG or NG according to order requirements.
The tabletop plate is stainless steel.
The configuration includes 1 chromed oven grill and 1 oven bottom tray.
Yes. The safety device is listed as an optional configuration.
Yes. OEM and ODM services are available for distributors, wholesalers and project orders.
