RDX-GV01
RDX-GV01 is designed for kitchens where space efficiency is important.

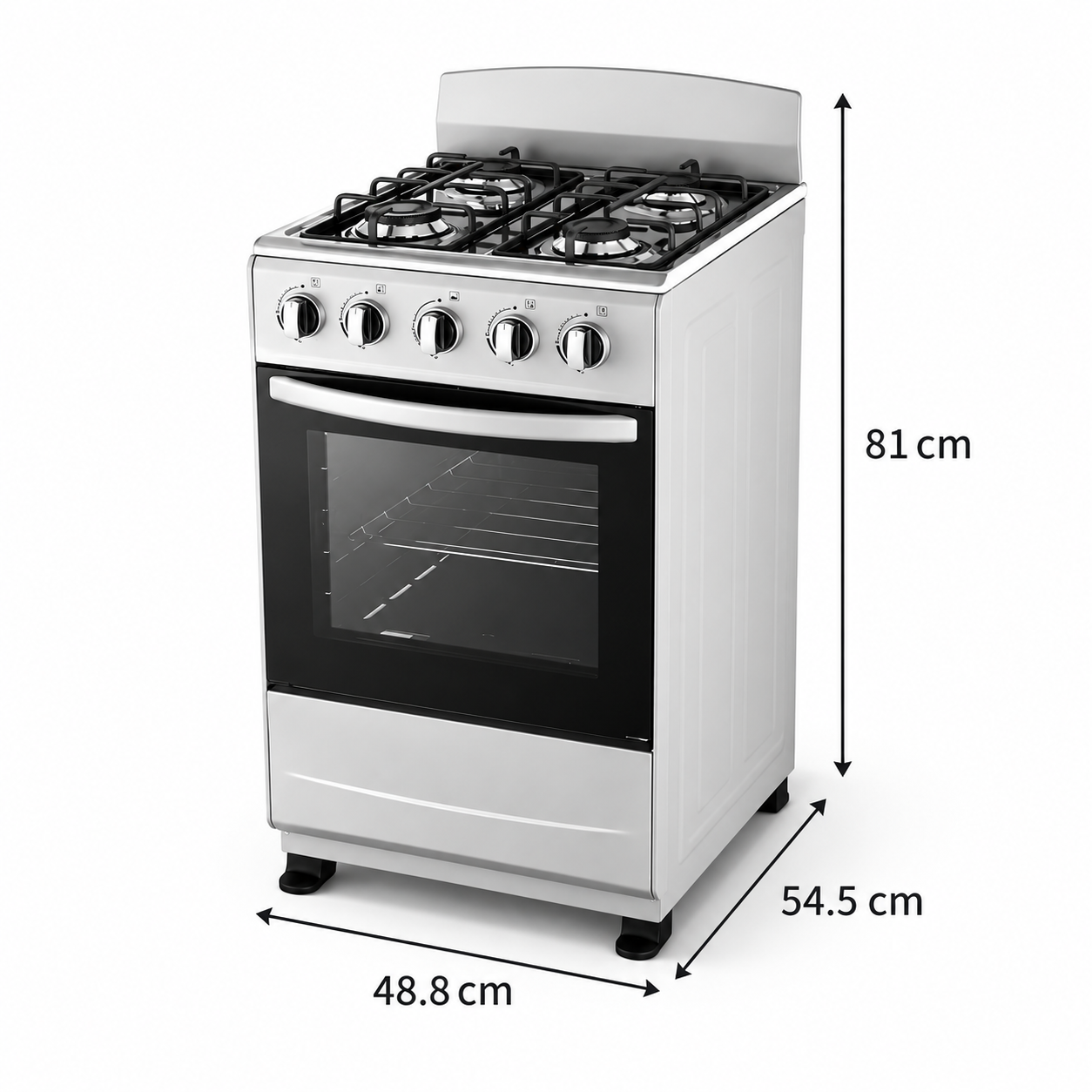

Its approximate size of 488 × 545 × 810 mm allows the cooker to provide both stovetop and oven functions while maintaining a relatively narrow footprint.

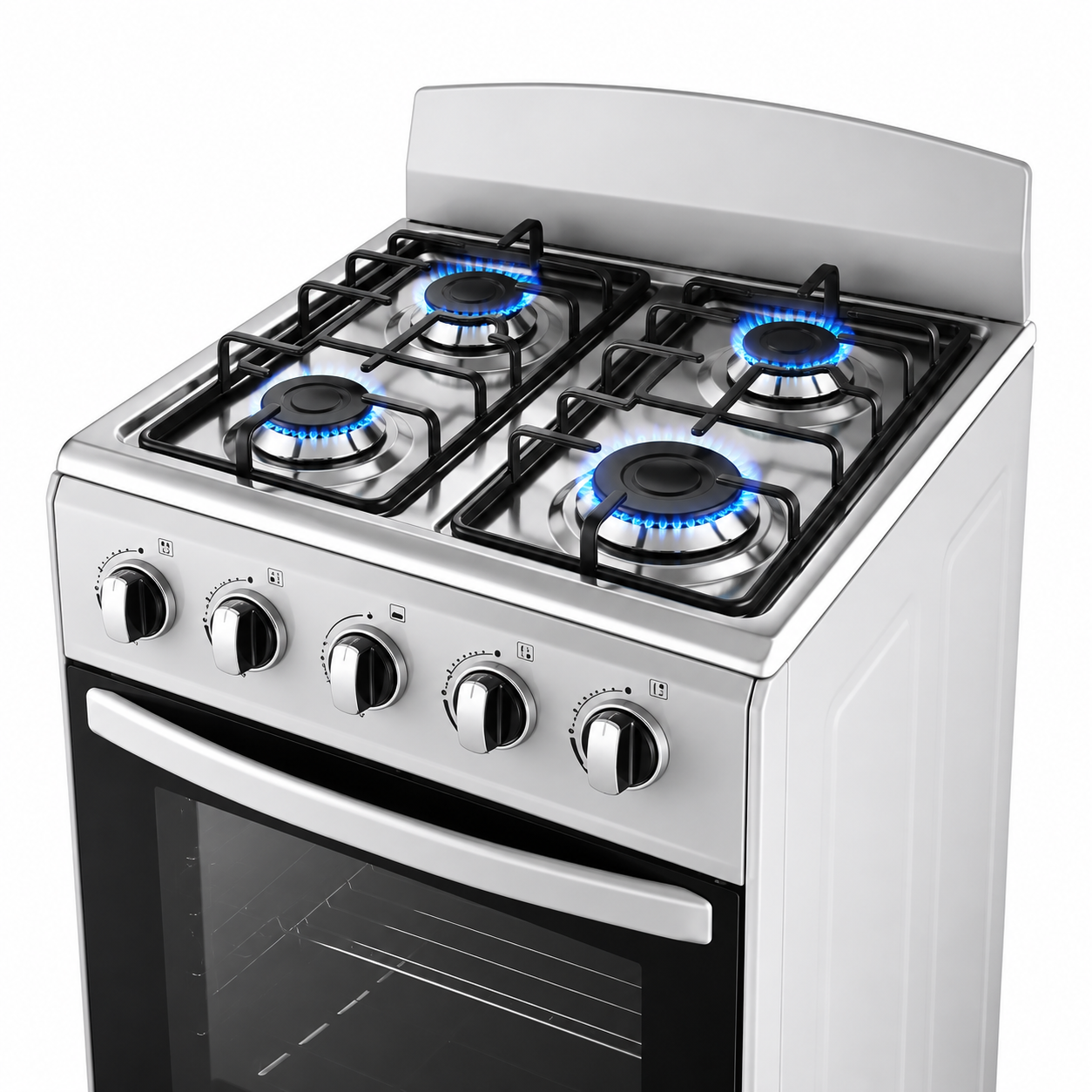

The cooktop is equipped with four gas burners.
The four-zone layout allows different pots and pans to be used simultaneously, helping improve efficiency during everyday meal preparation.

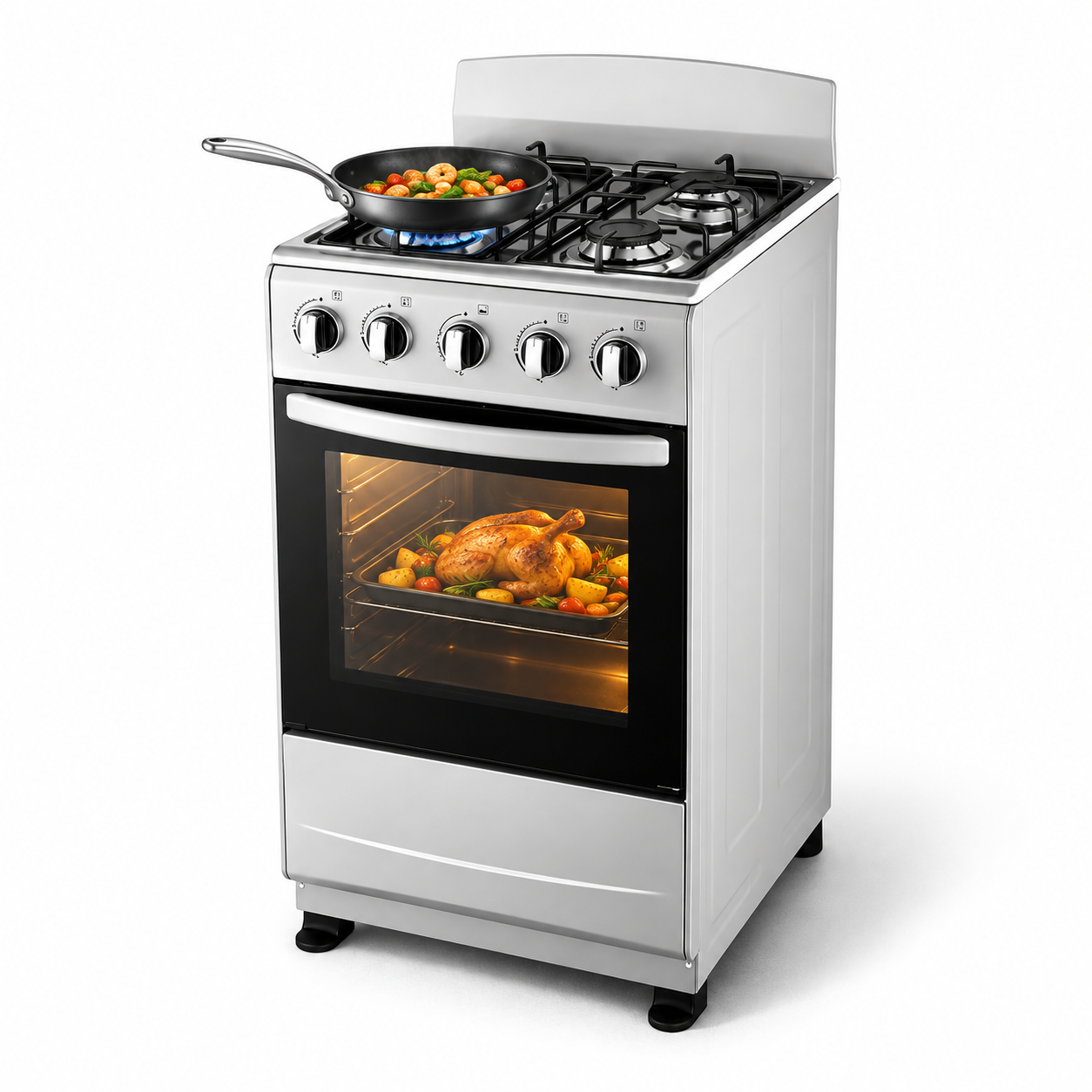

The lower section includes an integrated oven for additional cooking applications.
It provides extra flexibility for baking, roasting and reheating alongside normal stovetop cooking.
RDX-GV01 uses five front-mounted control knobs.
The control layout is clear and easily accessible during daily cooking.
The upper cooking area features a clean silver metallic finish.
Its practical surface complements the cooker body and provides a neat appearance for different kitchen environments.
Black metal pan supports are positioned above the four burners.
They help provide stable support for common household cookware during cooking.
The oven door includes a wide glass viewing area.
Users can monitor food during baking or roasting without opening the oven door repeatedly.
A raised rear panel is positioned behind the cooktop.
This design helps protect the surrounding wall area and gives the cooker a more complete freestanding appearance.
The silver cooker body is combined with a black oven door for a clean and practical two-tone appearance.
This neutral design can match a wide range of household kitchen styles.
The compact size and practical cooker-and-oven combination make RDX-GV01 suitable for appliance wholesalers, distributors, importers and residential sourcing projects.
OEM and ODM requirements can be discussed according to confirmed orders.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GV01 | Product Type | Freestanding Gas Cooker |
Size | 20 Inch | Burner Quantity | 4 Gas Burners |
Oven | Integrated Oven | Installation | Freestanding |
Product Width | Approx. 488 mm | Product Depth | Approx. 545 mm |
Product Height | Approx. 810 mm | Control Position | Front Control |
Control Quantity | 5 Knobs | Cooktop Finish | Silver Metallic Finish |
Pan Support | Metal Pan Support | Oven Door | Glass Viewing Window |
Body Color | Silver / Black | Rear Structure | Raised Splash Guard |
Application | Household Kitchen | Usage | Cooking / Baking / Roasting |
OEM / ODM | Available | Target Buyers | Wholesalers / Distributors / Importers |
RDX-GV01 combines stovetop and oven functions for practical everyday family cooking.
Its compact 20 inch design is suitable for apartments and kitchens with limited available floor space.
Four gas burners allow several cooking tasks to be handled at the same time using different cookware.
The integrated oven provides additional cooking space for common baking, roasting and reheating applications.
Its freestanding structure makes RDX-GV01 suitable for rental housing, residential appliance projects and other compact kitchen installations.
The model can be supplied for appliance wholesalers, distributors and regional sourcing projects.
Place the cooker on a stable and level floor with suitable ventilation and sufficient clearance around the appliance.
Make sure the cooker and gas connection are installed according to the confirmed product configuration and local requirements.
Before operation, ensure all control knobs are in the OFF position.
Ignite the selected gas burner according to the supplied operating instructions.
Turn the corresponding control knob to adjust the flame according to the cookware and cooking requirement.
Operate the oven according to the required baking, roasting or reheating task.
Use the glass viewing window to check food during oven operation.
Return all controls to the OFF position after use and close the gas supply when required.
Allow the appliance to cool completely before cleaning the cooktop, burners, pan supports, control panel and oven surfaces.
RDX-GV01 is equipped with four gas burners.
It is a compact 20 inch freestanding gas cooker.
The dimensions shown for this model are approximately 488 × 545 × 810 mm.
Yes. The cooker includes an integrated oven below the gas cooktop.
No. RDX-GV01 is a freestanding cooker designed for floor installation.
The current product design has five front-mounted control knobs.
Yes. The oven door includes a wide glass viewing window.
Yes. Its compact 20 inch design makes it suitable for apartments and smaller household kitchens.
Yes. The integrated oven is suitable for common household baking and roasting applications.
Yes. RDX-GV01 is suitable for appliance wholesalers, distributors and importers.
Yes. OEM and ODM requirements can be discussed according to confirmed order specifications.
