RDX-GH081

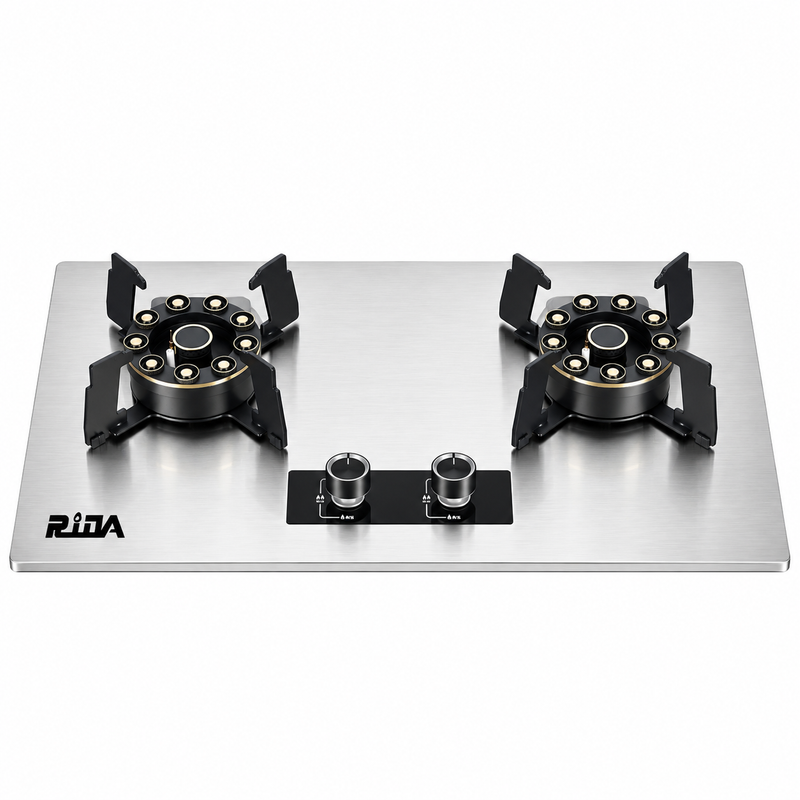

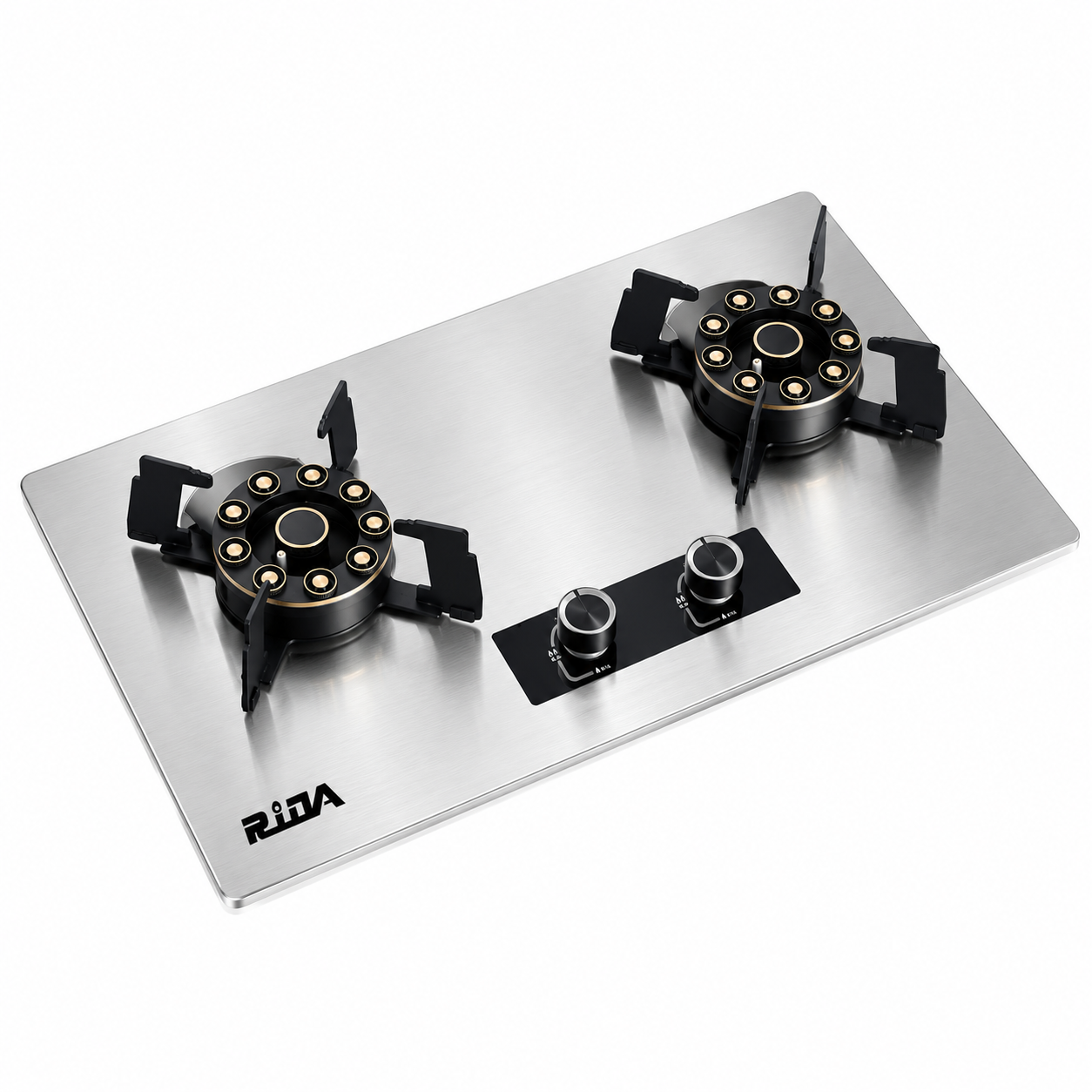

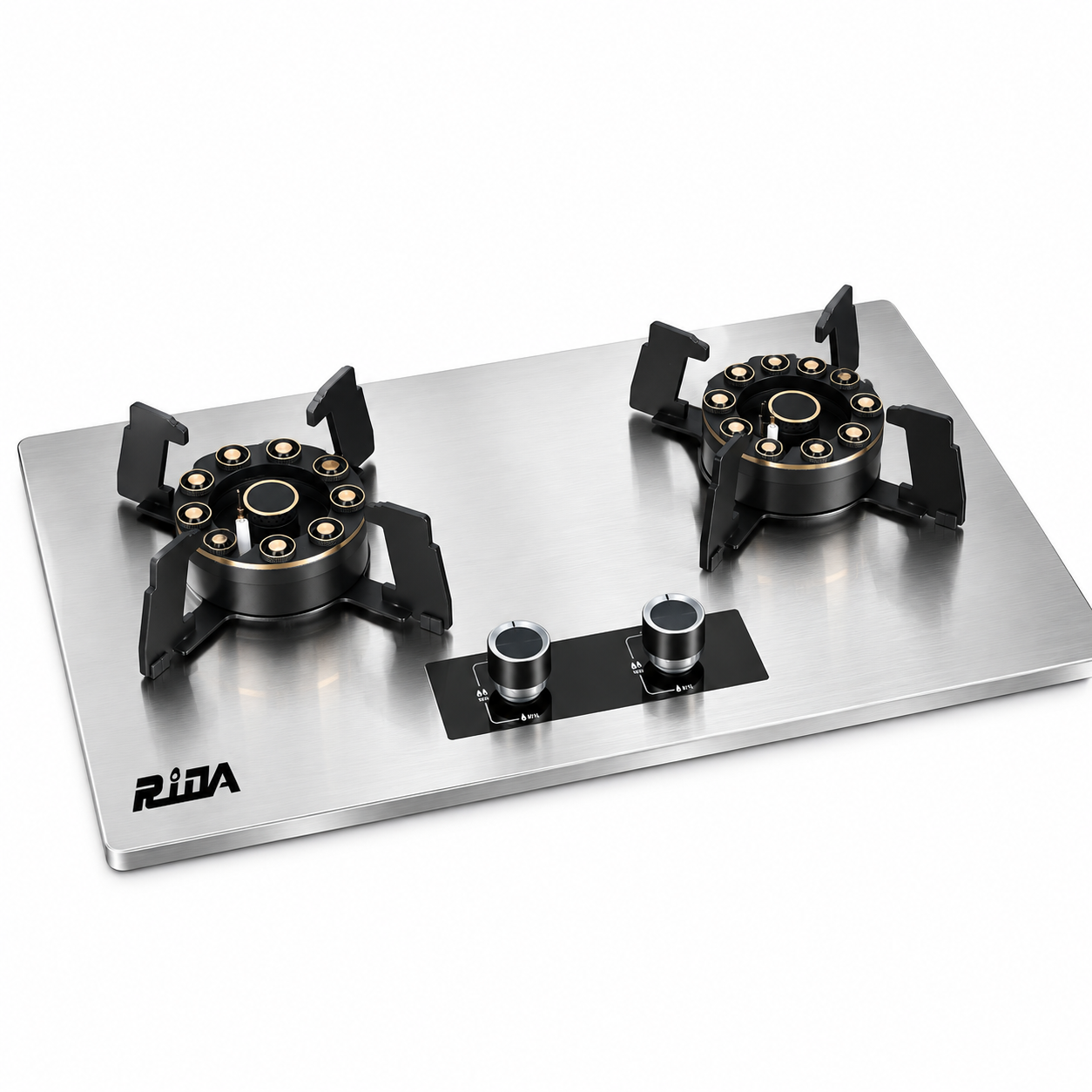

The RDX-GH081 features two independent gas burners, allowing users to prepare two dishes at the same time.
The compact double-burner design is suitable for everyday household cooking and kitchens with limited countertop space.

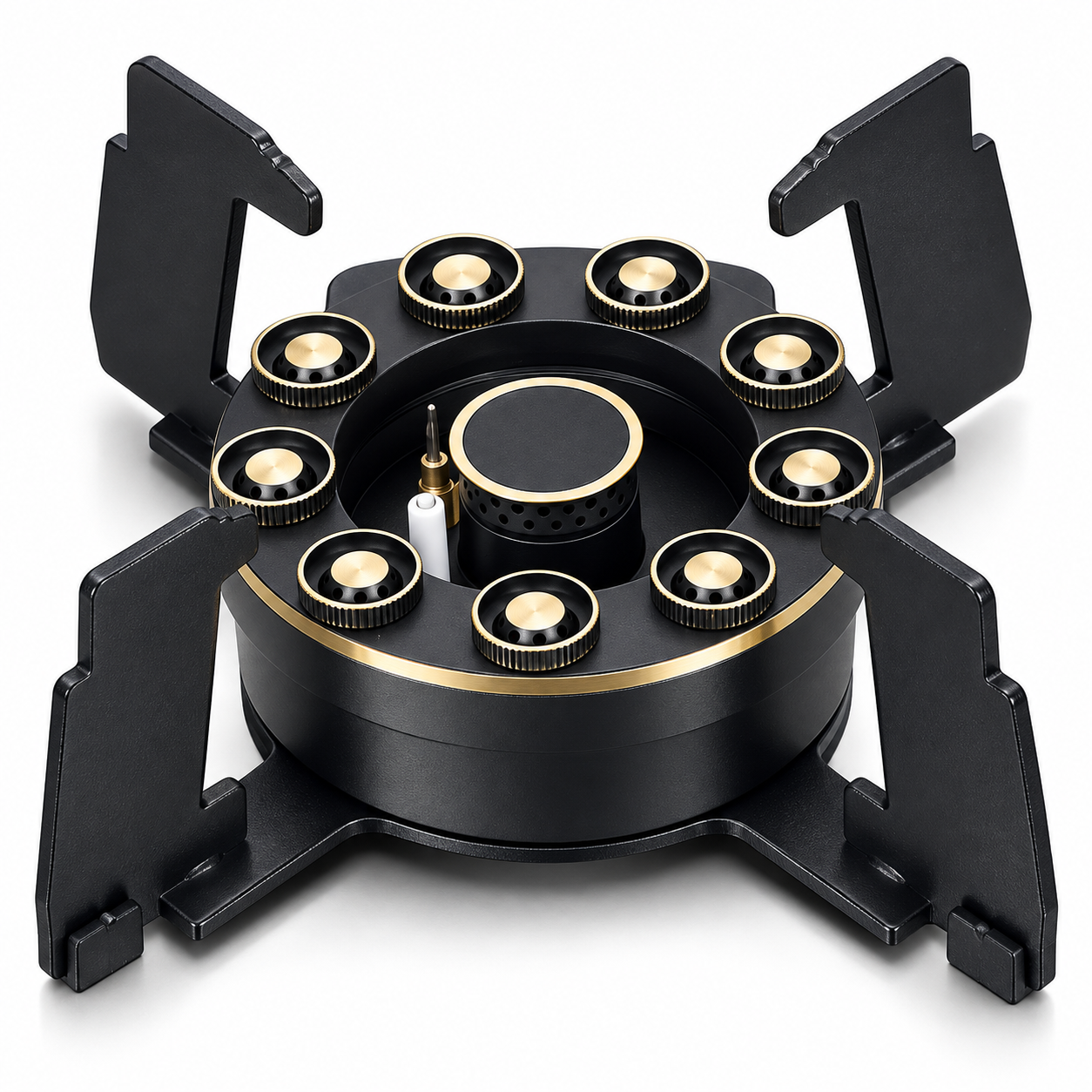

Each burner uses a 120 mm copper multi-ring burner structure.
The multi-ring configuration provides a wide flame distribution area for practical heating and everyday cooking tasks.
The cooking surface uses a stainless steel wrapped glass panel measuring 750 × 430 × 6 mm.
Its brushed stainless steel appearance gives the hob a clean and modern look while making routine wiping and maintenance more convenient.
The RDX-GH081 is designed for built-in countertop installation.
The specified cut-out size is 630 × 330 mm, allowing the hob to integrate neatly into suitable kitchen countertops.
The standard version is equipped with a dual-point direct-insert pulse ignition system.
This provides convenient burner ignition for normal daily use.
The standard BOM includes flame failure protection with individual sensing needles for both burners.
This configuration adds an additional safety feature for everyday household cooking.

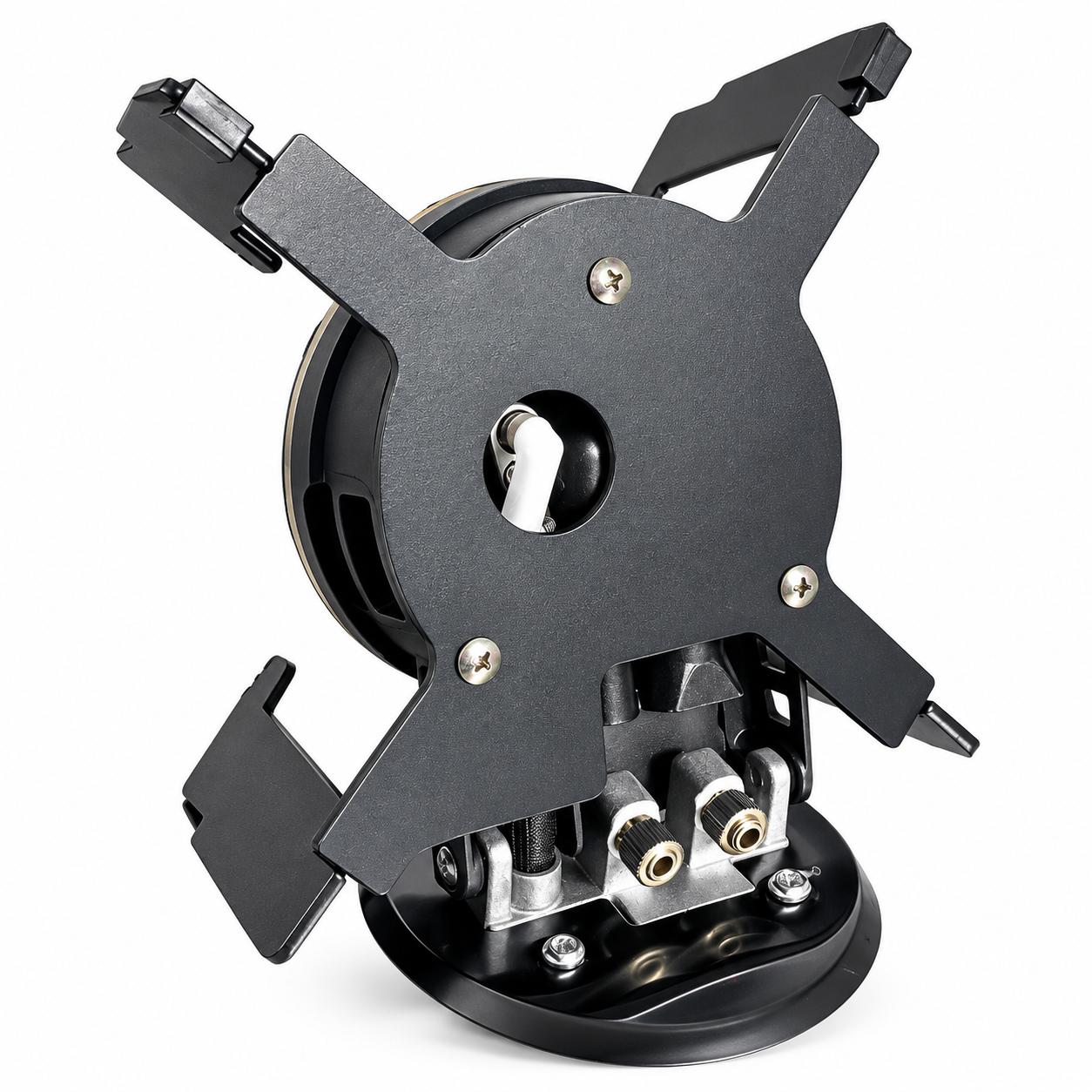

The hob uses two 90-degree single-line safety waterproof valves.
Each burner can be controlled independently through its corresponding control knob.

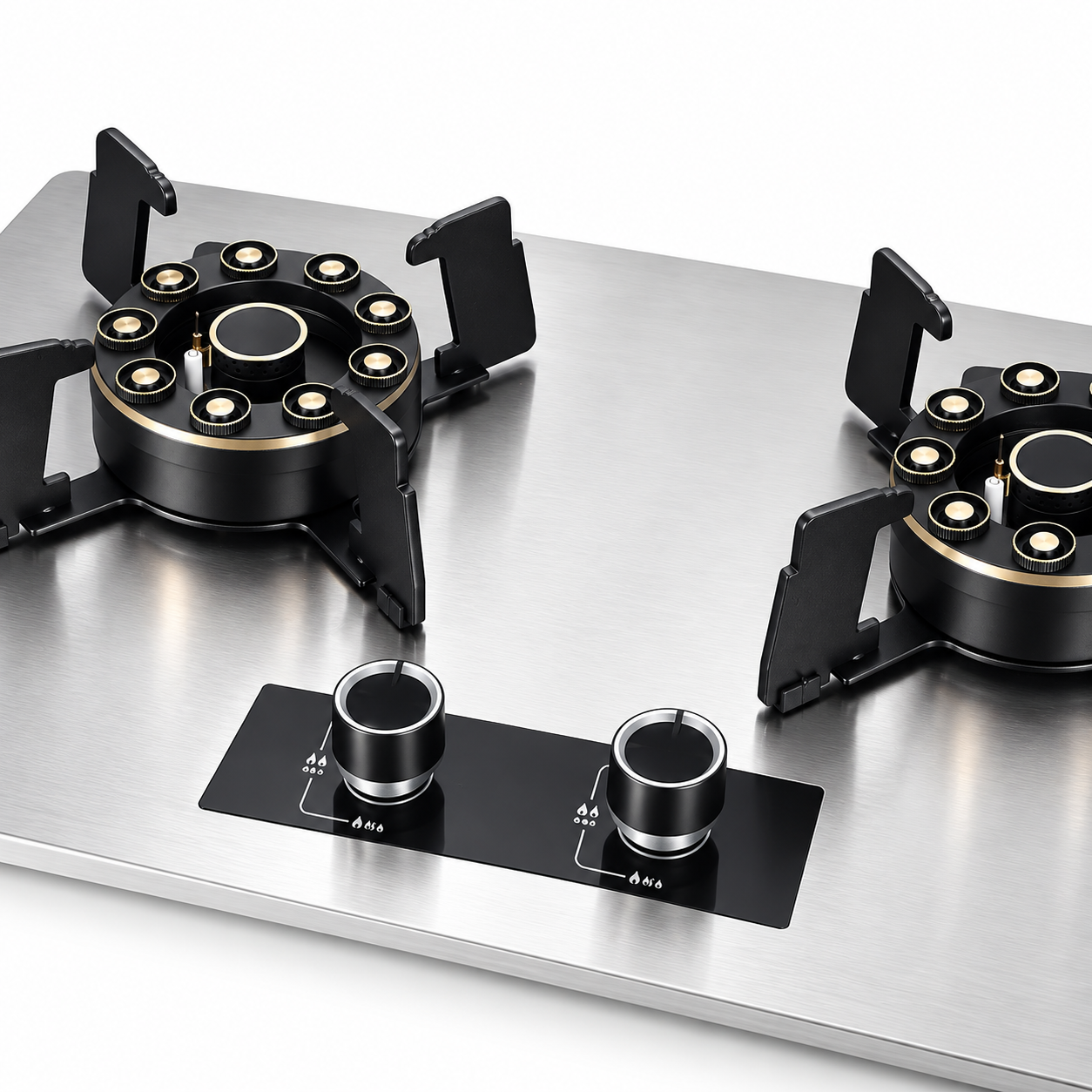

Two silver electroplated oval control knobs are positioned at the front of the cooking panel.
The separate controls allow each burner to be operated independently.
Each burner is paired with a small round stainless steel water tray.
The trays form part of the burner assembly and help create a clean cooking-zone structure.
RDX-GH081 is suitable for distributors, wholesalers and appliance-brand projects.
OEM and ODM services can include logo, packaging and selected product configurations according to confirmed order requirements.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GH081 | Product Type | Built-in Gas Hob |
Burner Quantity | 2 Burners | Installation | Built-in |
Panel | Stainless Steel Wrapped Glass | Panel Size | 750 × 430 × 6 mm |
Cut-out Size | 630 × 330 mm | Burner Size | 120 mm |
Burner Type | Copper Multi-Ring Burner | Burner Quantity | 2 |
Ignition | Pulse Ignition | Flame Failure Protection | Yes |
Valve | 90° Safety Waterproof Valve | Control | 2 Independent Knobs |
Knob | Silver Electroplated Oval Knob | Water Tray | Stainless Steel Round Tray |
Gas Pipe | T-Type Aluminum Gas Pipe | Bottom Housing | Galvanized Steel |
Packing Size | 800 × 480 × 200 mm | Packing Volume | 0.0768 CBM |
20GP Loading | Approx. 380 PCS | 40HQ Loading | Approx. 900 PCS |
Timer | Standard Version: No | OEM / ODM | Available |
The two-burner layout is suitable for everyday household cooking and provides enough space for preparing two dishes simultaneously.
Its built-in design and compact double-burner structure make it suitable for apartments and kitchens with moderate countertop space.
The stainless steel appearance fits well with modern kitchen designs and residential appliance projects.
The practical double-burner configuration, confirmed packing information and container loading data make the model suitable for wholesale and distribution orders.
The RDX-GH081 can be customized for appliance brands and regional markets according to confirmed order requirements.
Install the hob securely into a countertop opening of approximately 630 × 330 mm according to the confirmed installation requirements.
Make sure the gas pipe and valve connections are properly installed before operation.
Before use, ensure both control knobs are in the OFF position.
Operate the corresponding knob to activate the pulse ignition system and ignite the required burner.
Turn the control knob to adjust the flame according to the cookware and cooking requirement.
Place cookware centrally on the burner support to maintain stable cooking.
After use, return the corresponding knob to the OFF position and close the gas supply when required.
Allow the hob to cool completely before wiping the stainless steel surface and cleaning the burner area.
The RDX-GH081 is equipped with two gas burners.
It uses two 120 mm copper multi-ring burners.
The panel size is 750 × 430 × 6 mm.
The specified installation cut-out size is 630 × 330 mm.
The standard configuration uses a dual-point pulse ignition system.
Yes. The standard BOM includes flame failure protection for both burners.
No. The standard configuration does not include a timer.
The packing size is 800 × 480 × 200 mm.
The current BOM lists approximately 380 PCS per 20GP and 900 PCS per 40HQ.
No. The current BOM notes that the standard product does not include the battery, gas hose or gas hose clamp.
Yes. A timer version can be configured with upgraded pulse ignition, panel and valve components.
Yes. OEM and ODM services are available for distributors, wholesalers and appliance brands.
