RDX-GH061

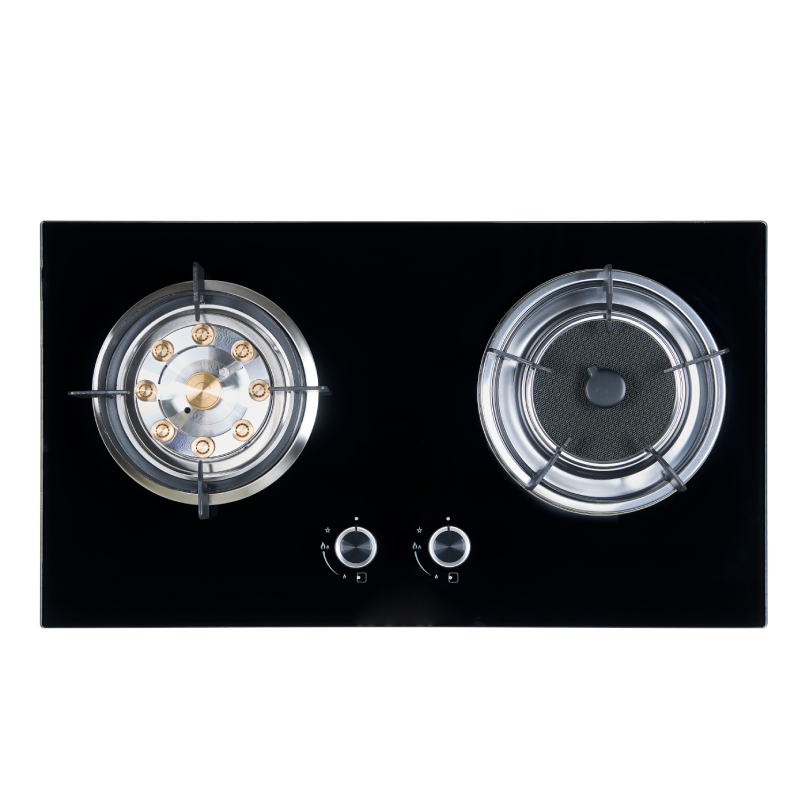

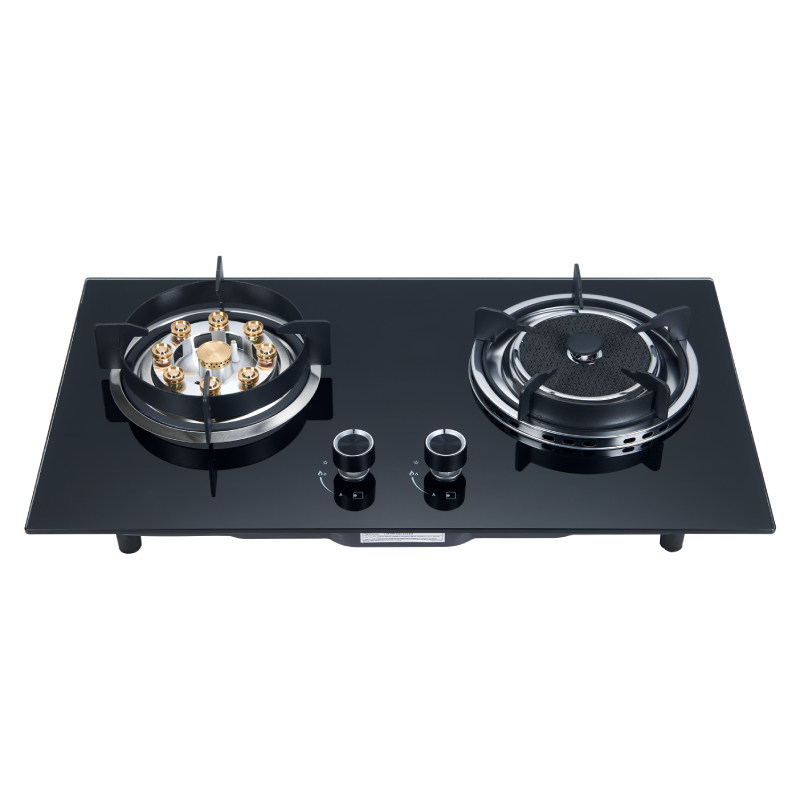

The RDX-GH061 combines a 135mm brass-aluminum multi-ring burner with a 155mm infrared burner, offering two different cooking styles in one built-in appliance.
This combination allows users to choose the most suitable burner for different cooking tasks, from high-heat frying to steady daily heating.

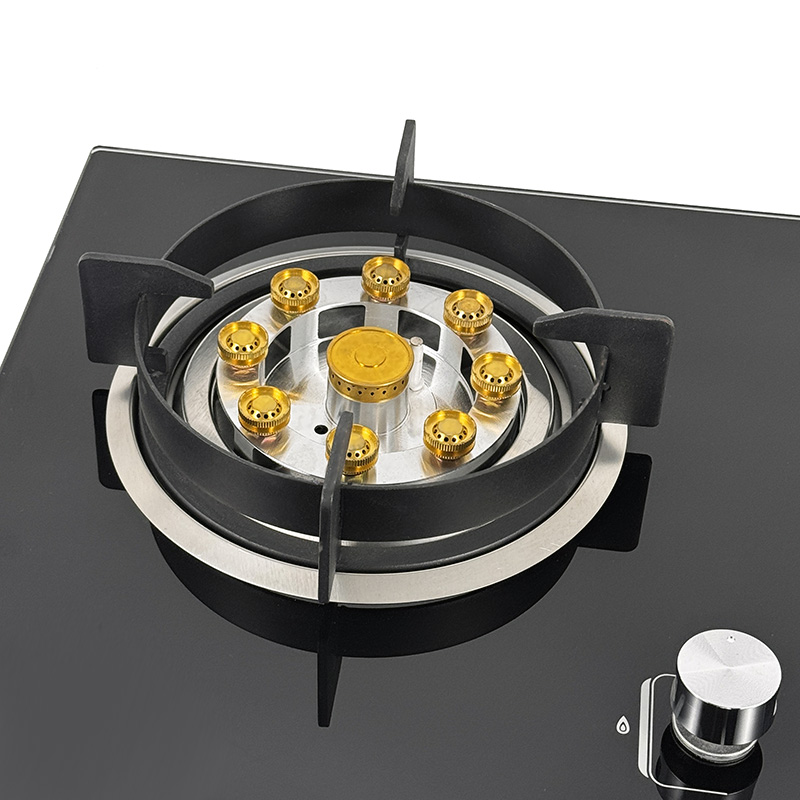

The left burner uses a 135mm copper + aluminum burner structure with multiple flame outlets.
This design is suitable for fast heating, stir-frying, boiling and other cooking tasks that benefit from concentrated flame output.

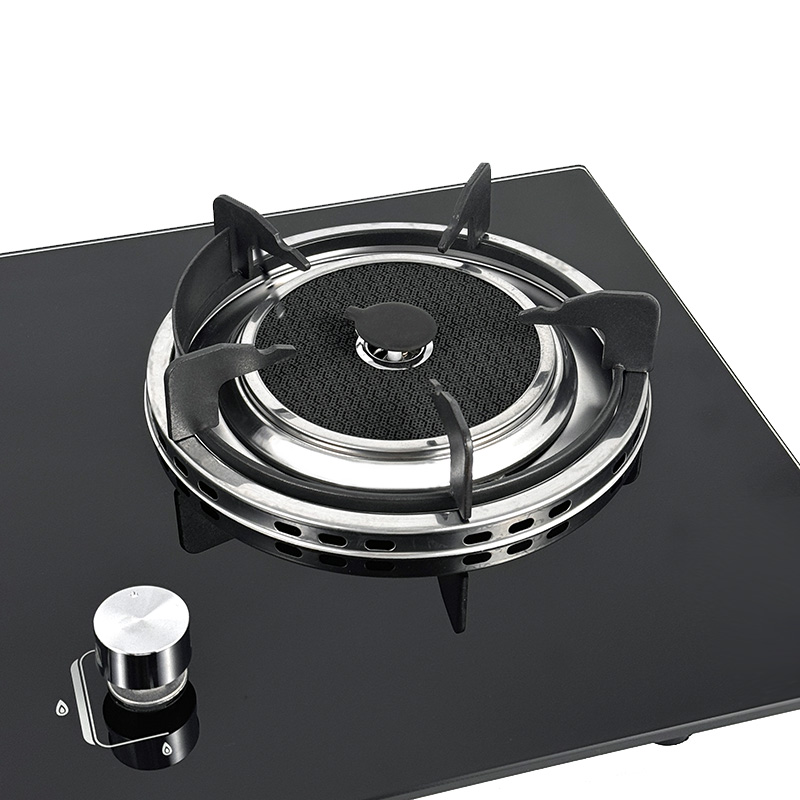

The right cooking zone features a 155mm infrared burner, providing a broad heating surface for stable everyday cooking.
The infrared structure is suitable for simmering, reheating and other cooking applications that require steady heat distribution.
The hob uses a 730 × 410 × 7mm black glass panel, giving the product a sleek and modern appearance.
The smooth glass surface is convenient for routine cleaning and helps the hob integrate neatly into contemporary kitchen countertops.
The RDX-GH061 is equipped with pulse ignition, allowing users to operate the burners conveniently through the control knobs.
The two-burner structure uses independent valve bodies and separate controls for flexible heat adjustment.
The left side uses a windproof pan support, while the right infrared cooking zone uses a dedicated five-point support structure.
These supports help keep cookware stable during daily cooking and match the different burner configurations.
Specification | Details | Specification | Details |
|---|---|---|---|
Model | RDX-GH061 | Product Type | Built-in Gas Hob |
Burner Quantity | 2 Burners | Panel | Black Glass |
Panel Size | 730 × 410 × 7mm | Ignition | Pulse Ignition |
Left Burner | 135mm Brass + Aluminum Burner | Right Burner | 155mm Infrared Burner |
Left Pan Support | Windproof Pan Support | Right Pan Support | Five-point Pan Support |
Water Tray | Stainless Steel + Infrared Tray | Control | 2 Independent Knobs |
Gas Pipe | Aluminum Gas Pipe | Installation | Built-in |
Flame Failure Device | Not Included | OEM/ODM | Available |
Packing Size | 760 × 450 × 195mm | 20GP Loading | Approx. 450 PCS |
40HQ Loading | Approx. 1050 PCS | Application | Household Cooking |
The dual-burner layout is suitable for everyday household cooking and provides two independent cooking zones for preparing different dishes.
The brass-aluminum multi-ring burner is suitable for cooking tasks that require stronger flame performance, including stir-frying and boiling.
The infrared burner provides a broad heating surface for simmering, reheating and other steady cooking applications.
The compact built-in structure and black glass appearance make the RDX-GH061 suitable for apartments, residential kitchens and kitchen renovation projects.
This differentiated brass burner + infrared burner combination makes the model suitable for distributors, importers, wholesalers and OEM/ODM projects targeting different regional cooking preferences.
Install the gas hob securely into a suitable countertop opening according to the installation requirements.
Connect the gas supply properly and ensure all gas connections are secure before operation.
Use the corresponding control knob to ignite the selected burner through the pulse ignition system.
Adjust the flame according to the cooking requirement and place cookware securely on the matching pan support.
After cooking, return both control knobs to the OFF position and close the gas supply when required.
Allow the hob to cool completely before cleaning the black glass panel, burner components, water trays and pan supports.
The RDX-GH061 combines a 135mm brass-aluminum multi-ring burner on the left with a 155mm infrared burner on the right.
The hob uses a 730 × 410 × 7mm black glass panel.
This model uses pulse ignition.
No. According to the current BOM configuration, the RDX-GH061 is not equipped with a flame failure device.
The left burner uses a windproof pan support, while the right infrared burner uses a dedicated five-point pan support.
The standard carton size is approximately 760 × 450 × 195mm.
Approximate loading quantity is 450 PCS for 20GP and 1050 PCS for 40HQ.
Yes. RIDAX supports OEM/ODM cooperation for branding, packaging and product configuration according to customer requirements.
